Premium Extra-Long Front Driveshaft for Lifted Broncos

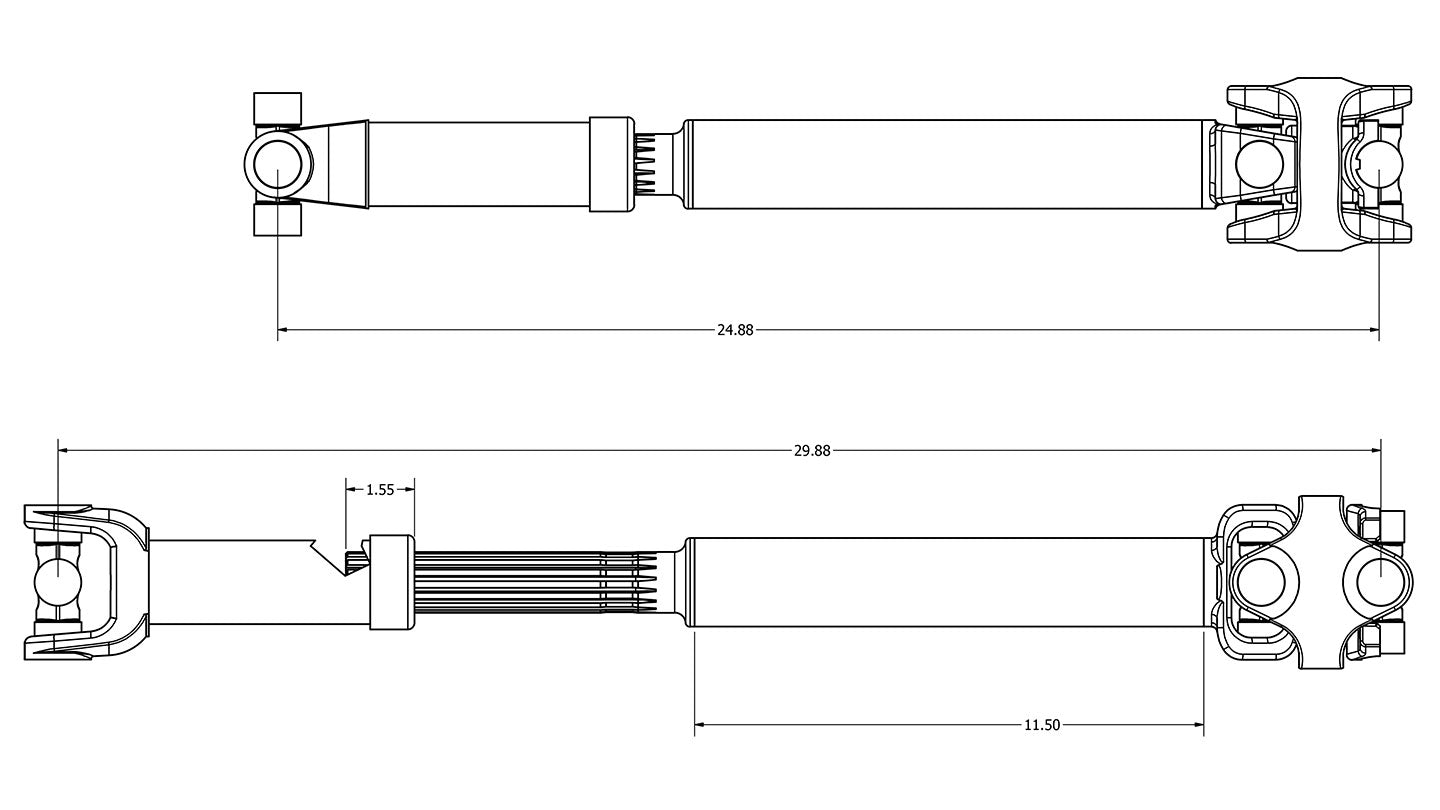

TOMS OFFROAD premium front ultra-extended driveline for 66-77 Ford Broncos. This driveshaft has been designed for use with early Broncos running the 4wd version of the AOD, AODE or 4R70W transmission. Will require a 2.5 inch lift kit or greater. Please measure and verify length needed prior to ordering. Collapsed length is 24.88 inches. Extended length is 29.88 inches. This drive shaft fits Dana Spicer style 1310 transfer case yokes.
Features include:
- 2 inch DOM tubing
- Full length splines for longer travel
- Custom H-block & CV joint for better angle range of motion
- Forged slip yokes & splined shafts for added strength
- Steel CV center housing for added strength.
- Collapsed length measures 24.88 inches, Extended length measures 29.88 inches
The splines on our premium driveshafts are fully splined for much better and stronger engagement, whereas the splines on our standard driveshafts only extend a portion of the slip shaft.
Technical Specs
- Fits 66-77 Ford Broncos with Dana Spicer style 1310 cv transfer case yokes.
- If you have a Cleveland style yoke, you will need to also purchase a new transfer case yoke and driveline bolt kit to complete your installation.
- To tell if you have a Cleveland or Spicer style transfer case yoke, measure the distance between the mounting holes on the yoke where the driveshaft connects. A Cleveland yoke will measure 1 7/8 inches from center hole to center hole. A Spicer yoke will measure 1 1/2 inches from center hole to center hole.
- Please select your transmission, differential and suspension Height using the drop-down menus. This will help us to double-check that the driveshaft you are ordering will be correct for your application. This is only for reference and not a guarantee of fitment for application. To ensure proper fitment, you should always verify that the running length of the driveshaft is appropriate for your application by measuring your current setup..
