66-77 Ford Bronco
Condition:
New
Part Number:
5769-005

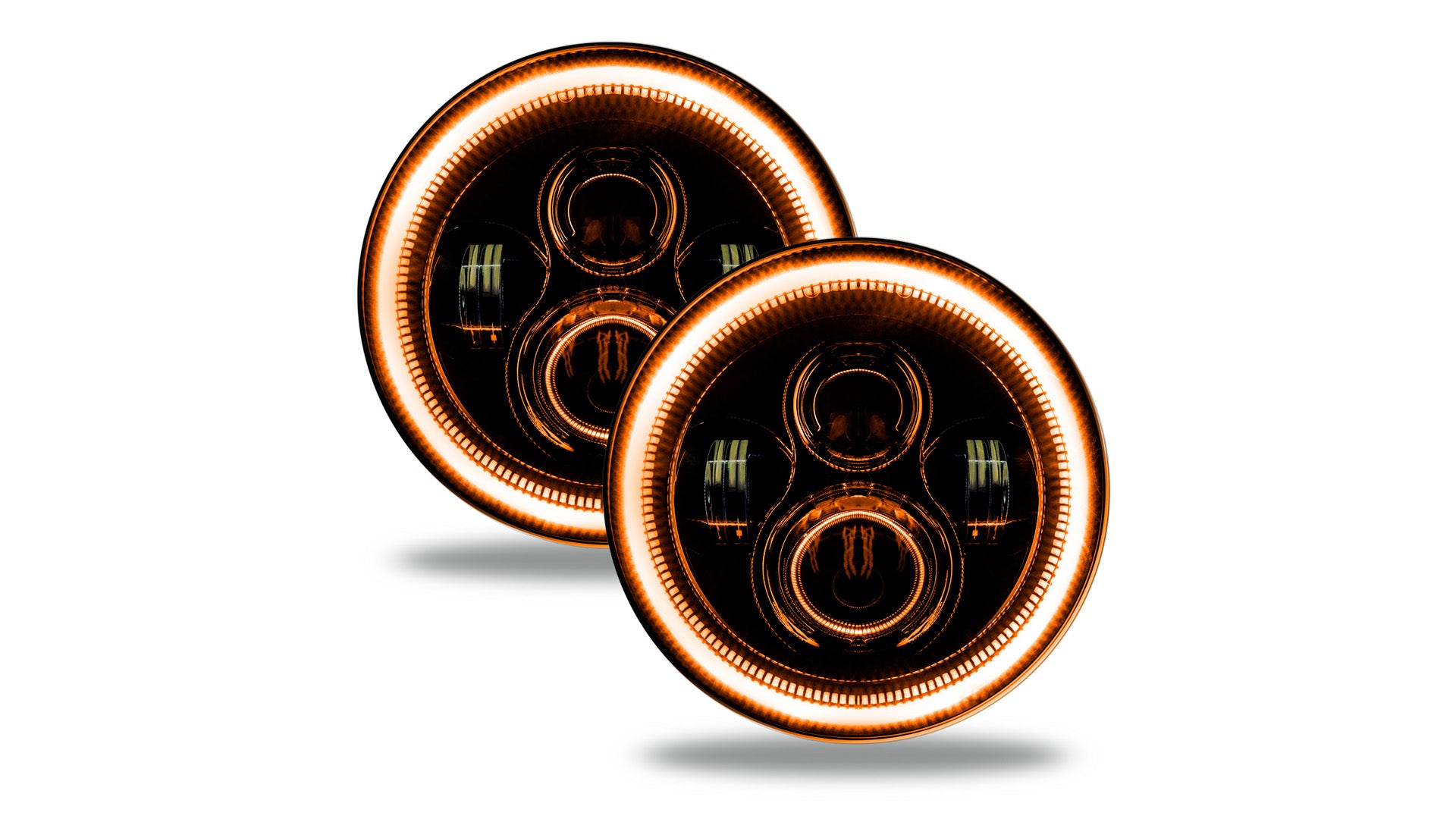

ORACLE Lighting 7" High Powered Amber LED Headlights (Pair) - Black Bezel

ORACLE Lighting 7" High Powered Amber LED Headlights (Pair) - Black Bezel

ORACLE Lighting

Regular price Sale price $294.00
Sale Sold out
Shipping calculated at checkout.

The Ultimate LED replacement headlight option for any vehicle with 7” Sealed Beam lamps. The rugged design is perfect for your classic Bronco. Installation is very easy with the included H4 and H13 “Plug and Play” connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty.

    Latest Product Improvements:
  • Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.
  • NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.
  • Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
  • Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
  • Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
  • LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
    Product Features: (Per Light)
  • Low Beam Wattage: 30W Normal/36W Max
  • Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
  • High Beam Wattage: 40W Normal/48W Max
  • High Beam Lumens: 3600 Lumens/4800 Raw Lumens
  • Color Temperature: 6000K (Cool White Color)
  • Input Voltage of Light: 12-24V DC
  • Input Voltage of Halo (If Included): 12V DC
  • Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
  • Optional: ORACLE Halo Rings Pre-Installed
  • Premium Performance Phillips Luxeon ZES LEDs
  • Die-Cast Housing with Corrosion Resistant Coating
  • Heavy Duty Solid State Electronics
  • Hard-coated Polycarbonate Lens
  • Wide Beam Pattern with Sharp Cut-Off Line
  • Easy Plug & Play Installation
  • DOT and SAE Certified
  • 2 year warranty

Technical Specs

Installation time 2+ hours

Wiring for Halos:

-Red Wire is (+) the positive wire

-Black Wire is (-) the negative wire

For Halo Colors White and Amber (Road Legal Colors) we recommend:

-Connecting wires to the Parking Light Harness

-Connecting wires to Ignition Power


Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. Learn more
