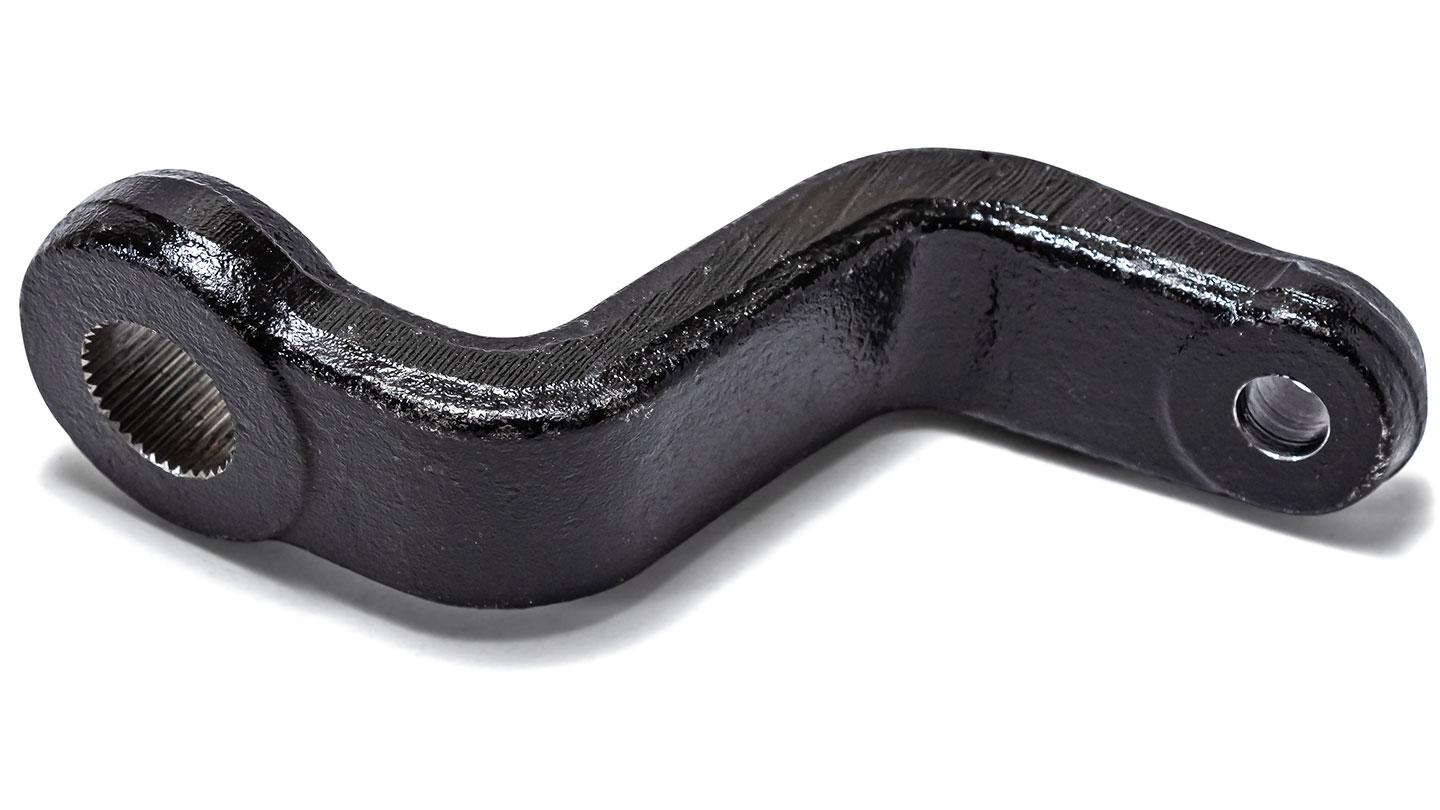

Fully Indexed Drop Pitman Arm, 1966 & 1976-77 Ford Bronco

Fully Indexed Drop Pitman Arm – 4" Drop

Improve your Bronco’s steering performance and correct lifted suspension geometry with this Fully Indexed Drop Pitman Arm, designed for 1966 and 1976–1977 Classic Ford Broncos. This precision-engineered arm restores your drag link angle to stock specifications, eliminating the bump steer and poor alignment that often occur after a suspension lift.

The fully indexed design eliminates the four factory blind splines, allowing installation at any of 36 positions for fine-tuned steering box centering — giving you a full 10° of adjustment. Constructed from high-strength steel, this drop pitman arm delivers exceptional durability and reliability on and off-road.

Key Features:

• Fits 1966 and 1976–1977 Ford Broncos

• Corrects steering geometry after a suspension lift

• Fully indexed design allows 36-angle adjustment (10° increments)

• 4" drop for optimal drag link alignment

• 1.25-inch, 36-spline (32 splines + 4 master keys)

• Taper: .069"–.060"

• Made from heavy-duty, high-strength steel

• Provides easier steering box centering and improved control

• Direct-fit upgrade for stock or lifted Broncos

Installation Note:
When installing a drop pitman arm, it’s highly recommended to add a drop track bar bracket to keep the track bar and drag link parallel. For even greater precision, use an adjustable drag link to fine-tune steering box alignment.

Bring your Bronco’s steering geometry back to factory specs with this Fully Indexed Drop Pitman Arm — a durable, fully adjustable upgrade built for lifted and performance-driven classic Broncos.
