Master Cylinder Depth Tool – Booster Pushrod Setup Gauge

Master Cylinder Depth Tool – Booster Pushrod Setup Gauge

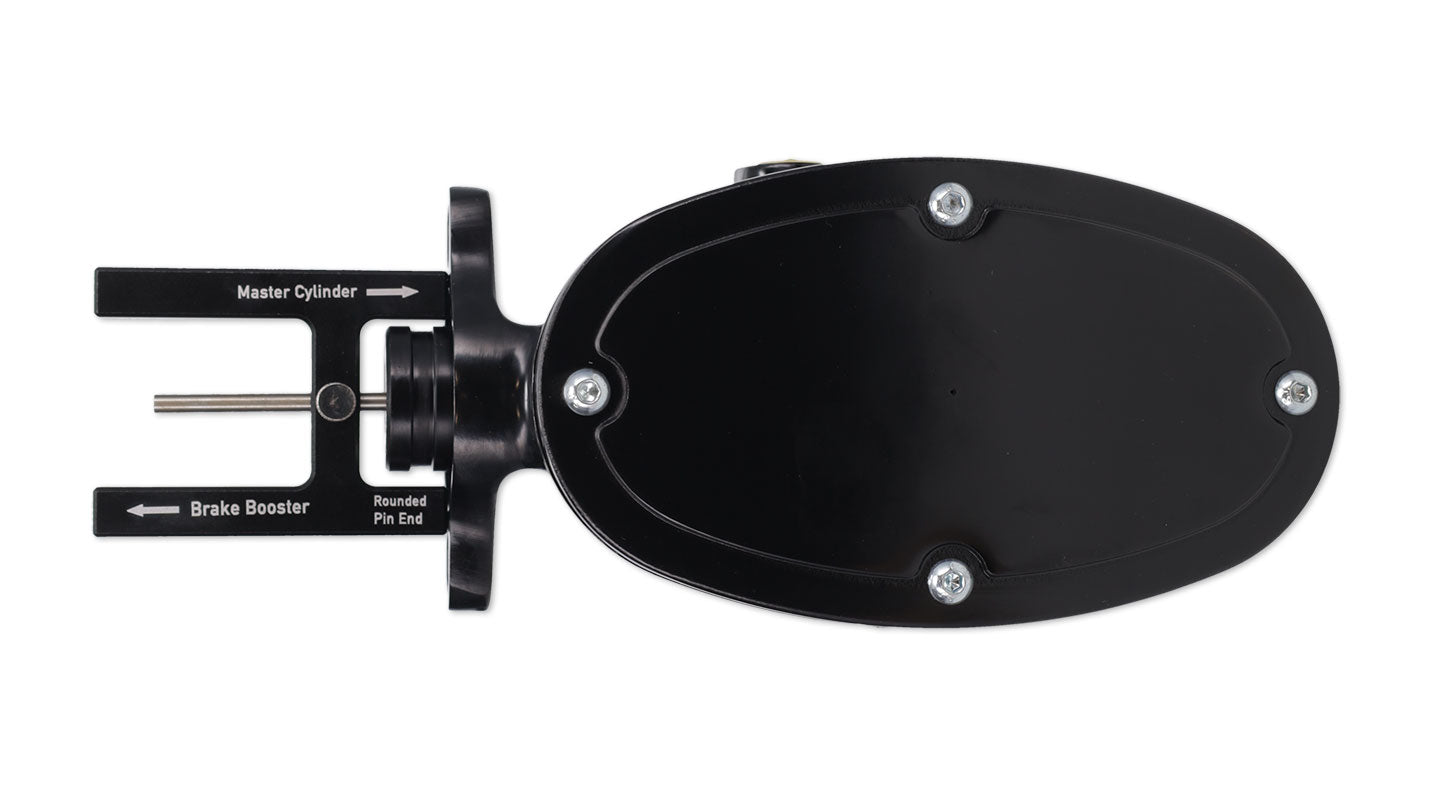

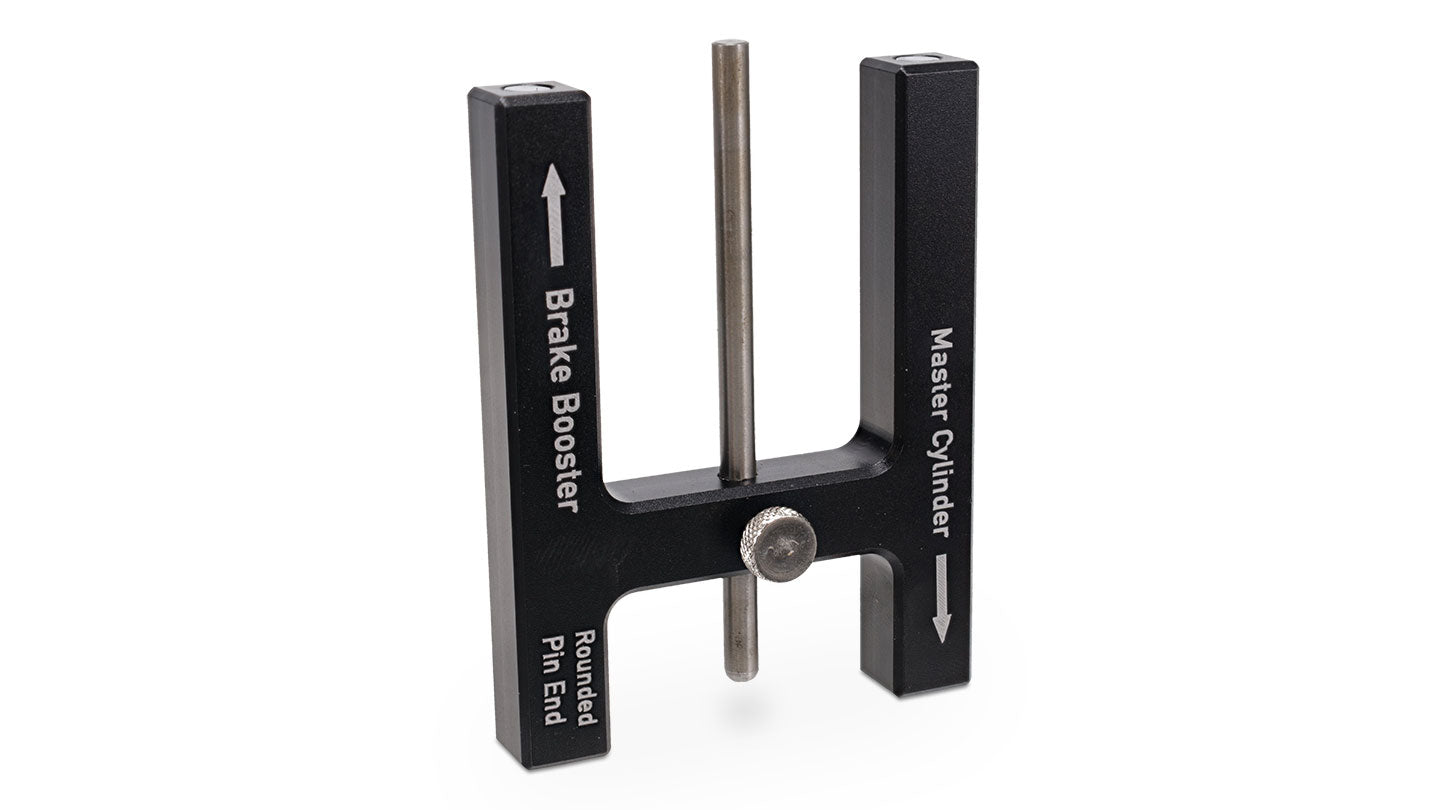

Ensure proper master cylinder–to–booster setup with this Master Cylinder Depth Tool. The gauge measures the master cylinder pocket depth and indicates whether the booster pushrod length is correct, allowing precise adjustment before final assembly. By eliminating guesswork, the tool helps prevent brake drag from an over-length pushrod and excessive pedal travel from an under-length pushrod. Constructed from aluminum and steel for durability and repeatable accuracy.

Features

• Accurately measures master cylinder piston pocket depth
• Verifies booster pushrod length for proper engagement
• Enables confident, precise pushrod adjustment prior to install
• Reduces risk of brake drag or excessive free play
• Useful for checking tolerances on replacement master cylinders and boosters
• Durable aluminum and steel construction for long-term use
• Cost-effective way to confirm correct fitment during brake service
