TOMS OFFROAD 44 Mag Dana 44 Front End w/Power Lock

TOMS OFFROAD 44 Mag Dana 44 Trail Terminator Housing - 1966-77 Ford Bronco

Part of our Trail Terminator line of extreme-duty off-road Bronco components, the TOMS OFFROAD 44 Mag is a heavy-duty Dana 44 front axle housing built 100 percent in the USA. Designed for serious trail abuse and engineered to exceed the strength of the factory Dana 44 and far outperform the weak Dana 30, this axle housing delivers unmatched durability for early Bronco builds.

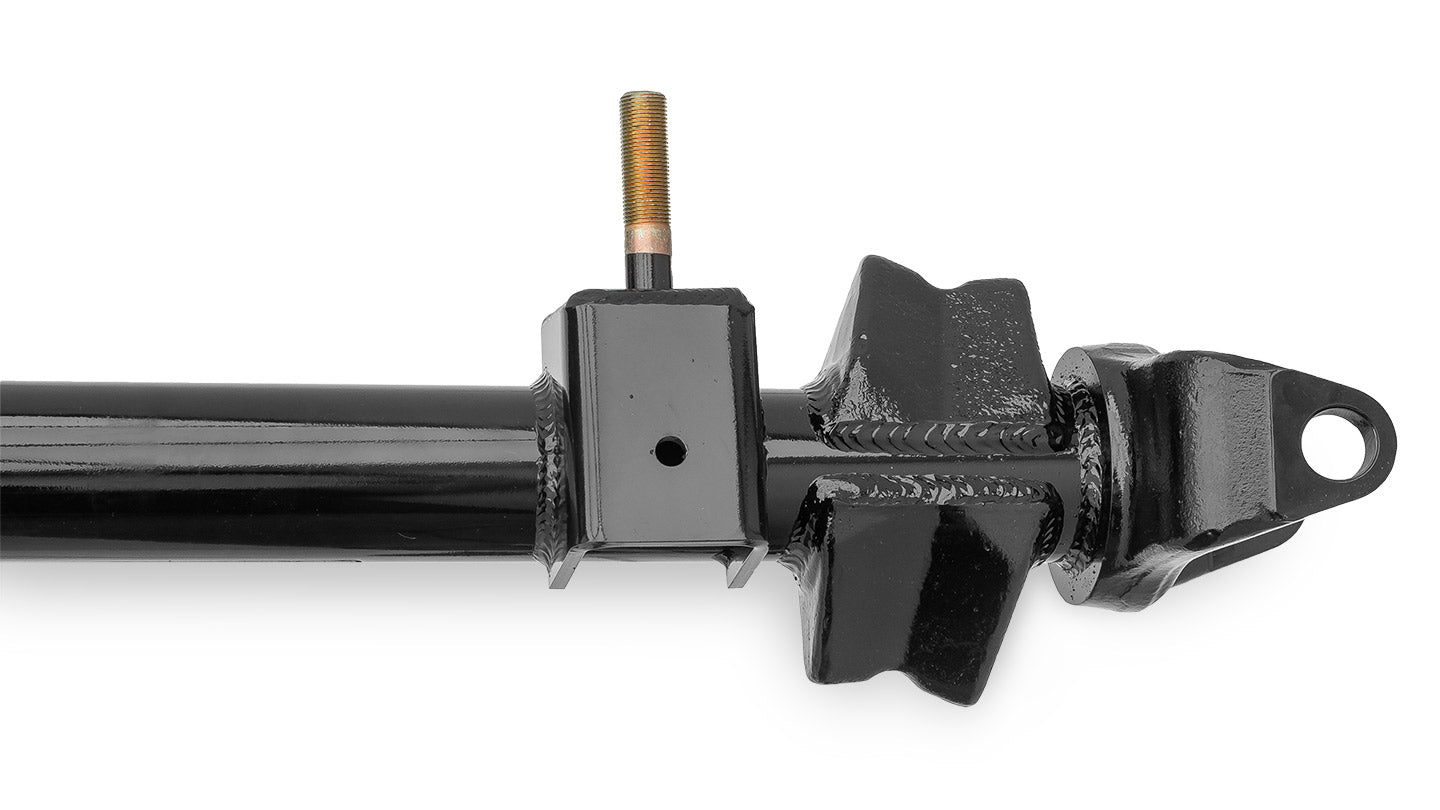

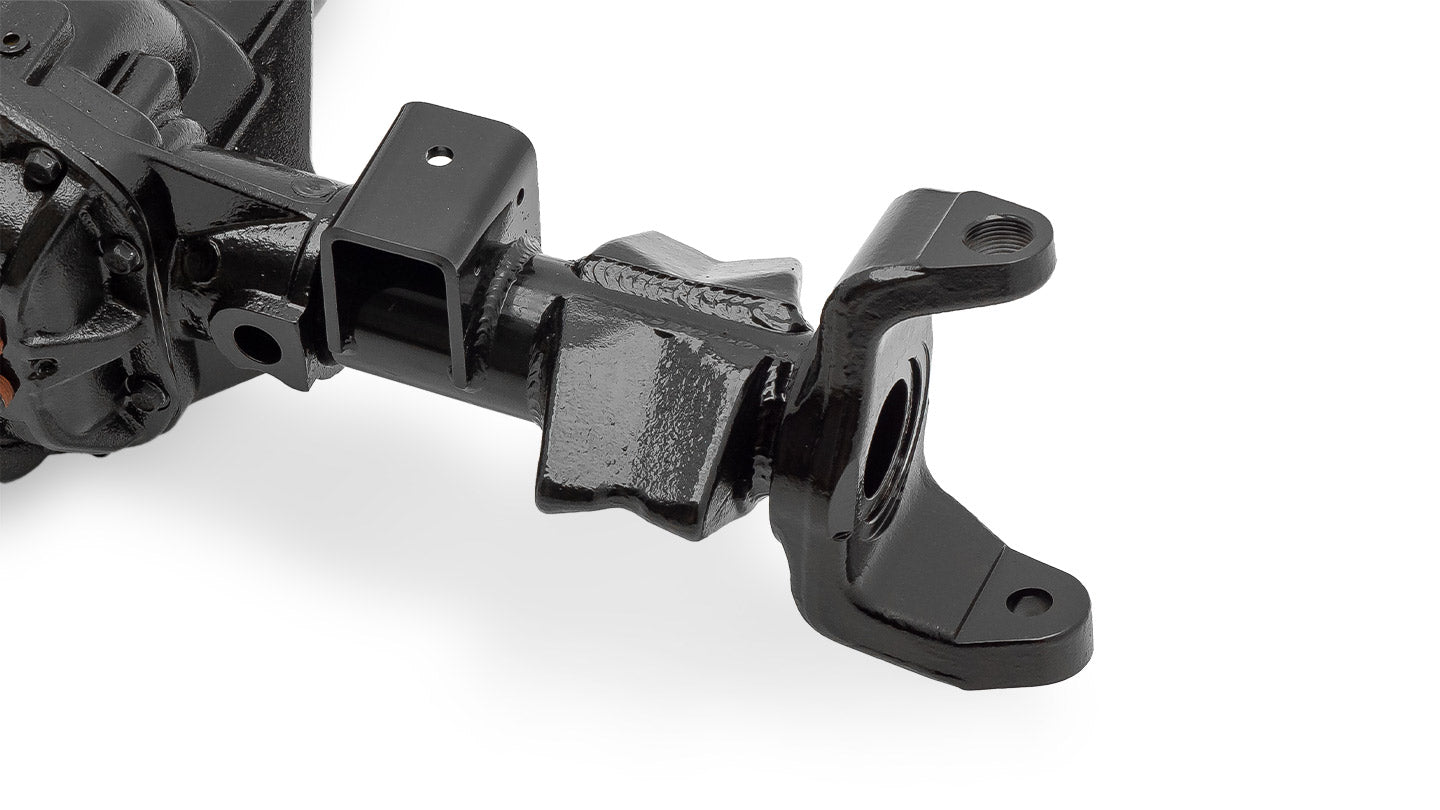

The 44 Mag features a ductile iron center casting and heavy-duty axle tubes with factory-style C-wedges for use with stock Bronco radius arm suspension. The tubes measure 3 inches in diameter with .375 inch wall thickness and are fitted with standard outer knuckle C's, allowing reuse of factory Dana 44 knuckles. These housings are custom-built to TOMS OFFROAD specifications and offer significant improvements in strength, geometry, and longevity.

To improve handling and driveline performance, we have added 4 degrees of positive caster to the outer C's and rotated the pinion upward by 2 degrees on the low pinion Dana 44 for better driveshaft angles.

Bare Housing Includes

• Power Lock traction device
• Ring and pinion

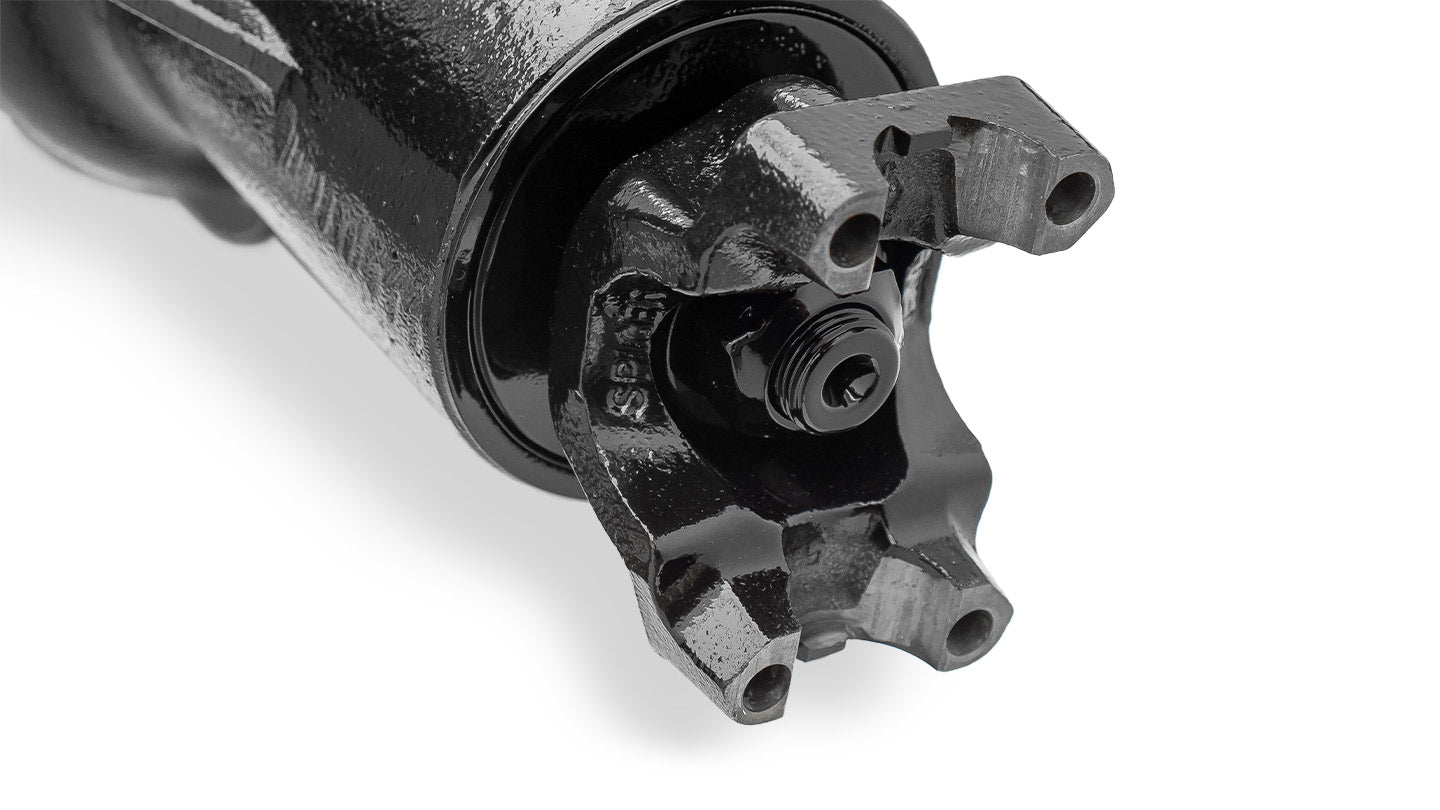

• OE Spicer pinion yoke

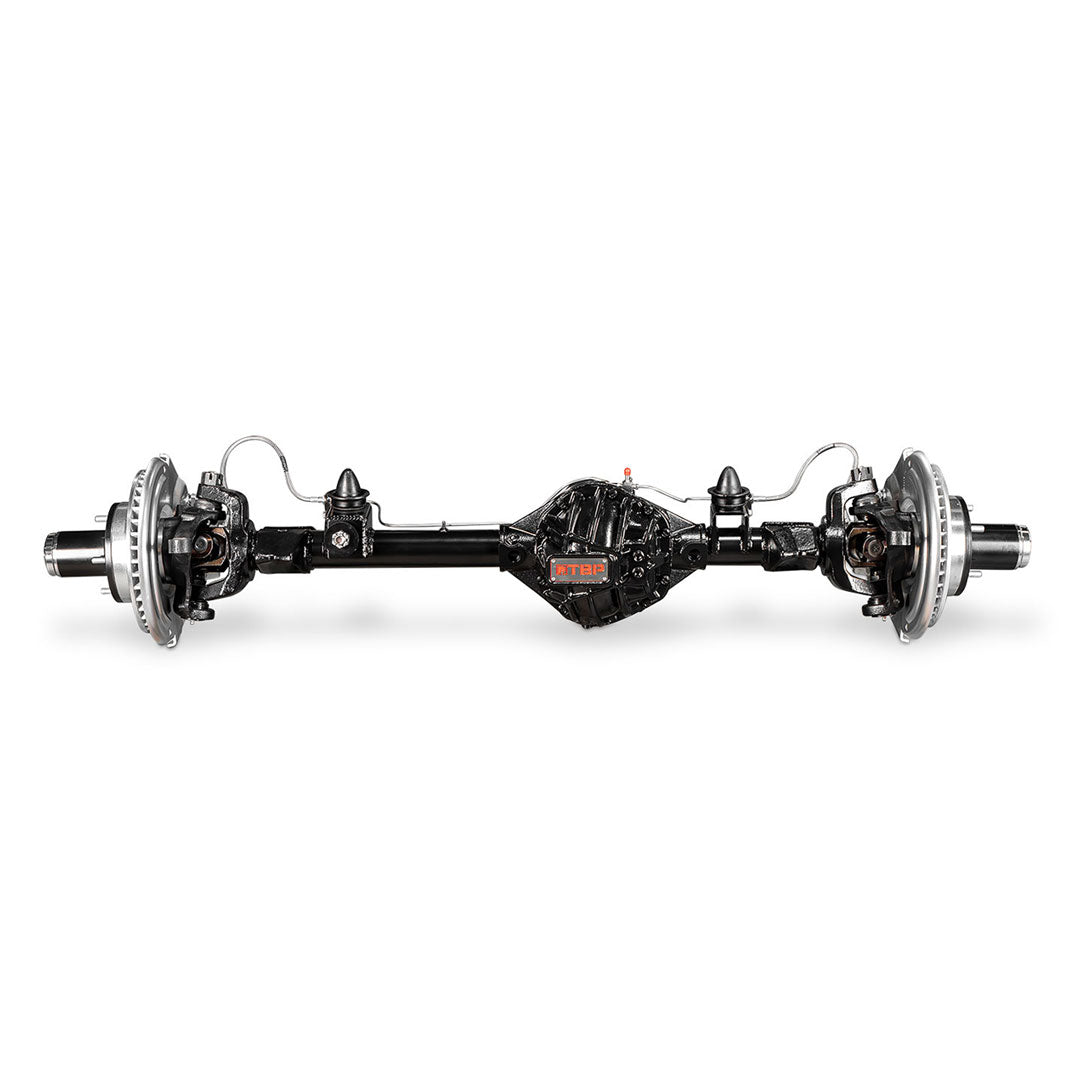

Deluxe Housing Includes

• Chromoly axles
• Slotted disc brakes
• Preground knuckles
• Stainless housing lines with support brackets
• Chrome locking hubs
• Front bump stop with washer

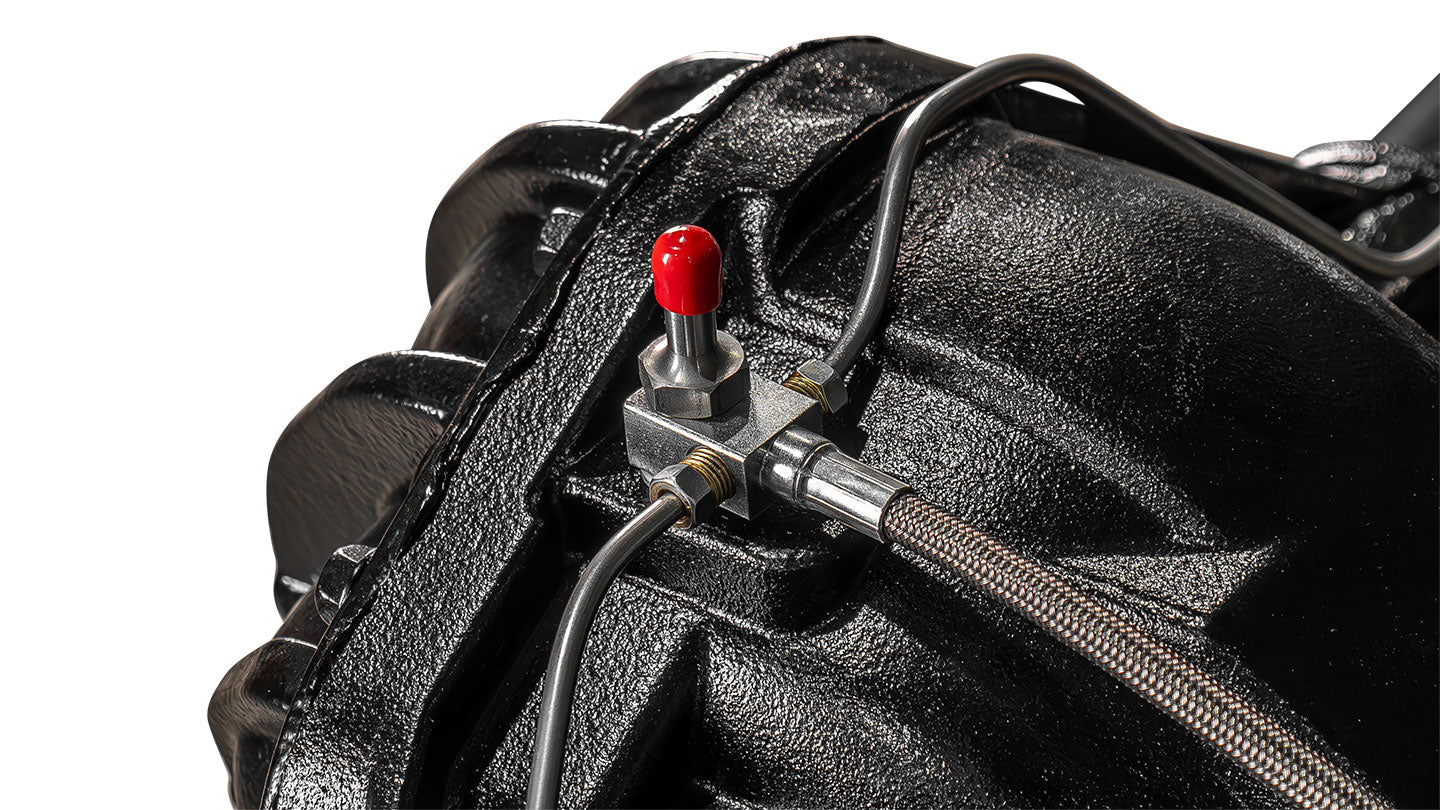

• Front center brake hose with breather tube

Housing Specifications

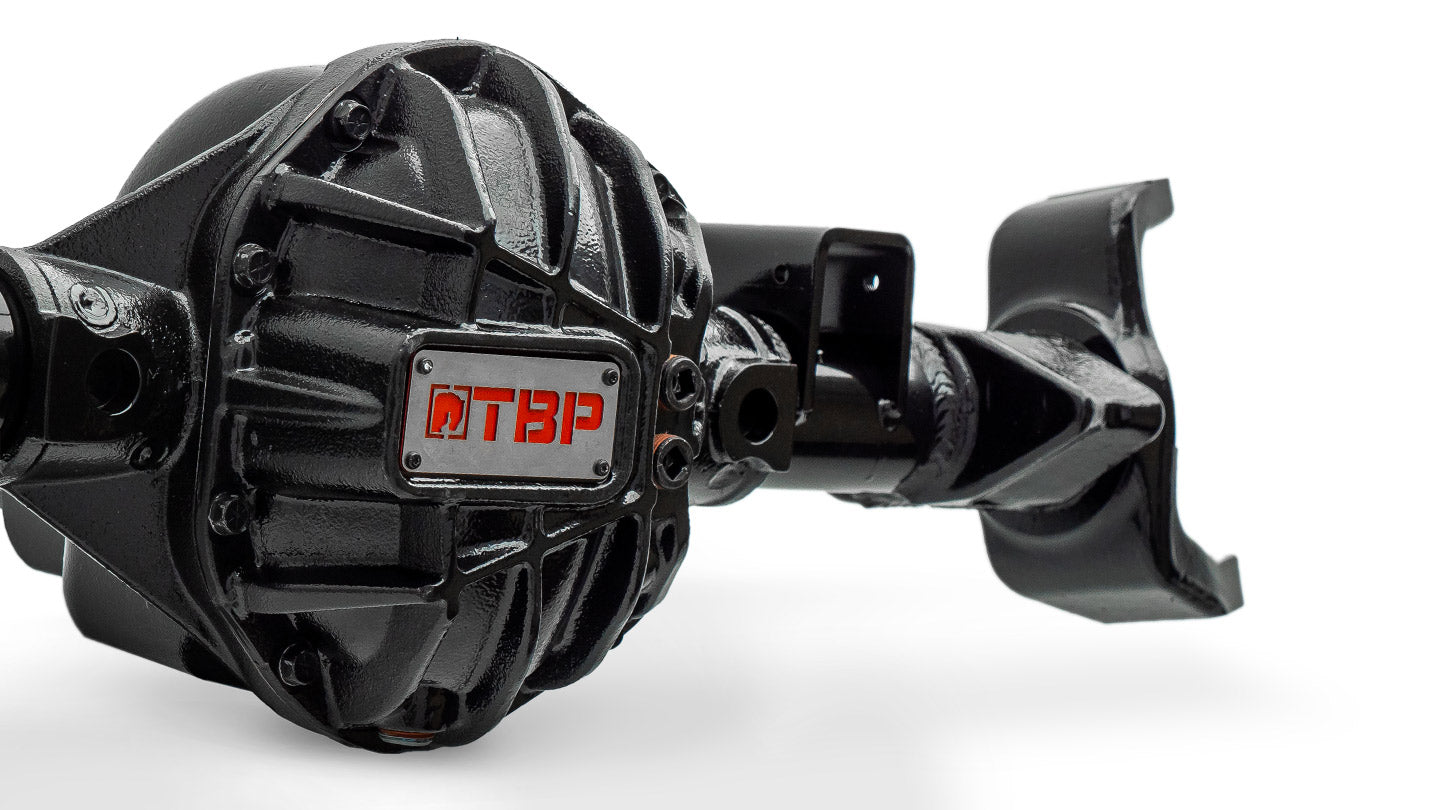

• Ductile iron center section
• 1026 steel tubing with .375 inch wall thickness
• Forged ends for superior strength
• High-amperage MIG welded using ER70 wire
• Preheated components throughout the manufacturing process
• Welded to ASME standards
• Up to 600 percent stronger, straighter, and more precise than factory Bronco axles

Built for drivers who demand the strongest possible front end, the TOMS OFFROAD 44 Mag Dana 44 housing is the ultimate upgrade for hardcore trail rigs and high-performance early Bronco builds.
