Body Tub Kit, Unassembled - Free Shipping to Lower 48

Complete Early Bronco Body Tub Kit - 1966-77 Ford Bronco

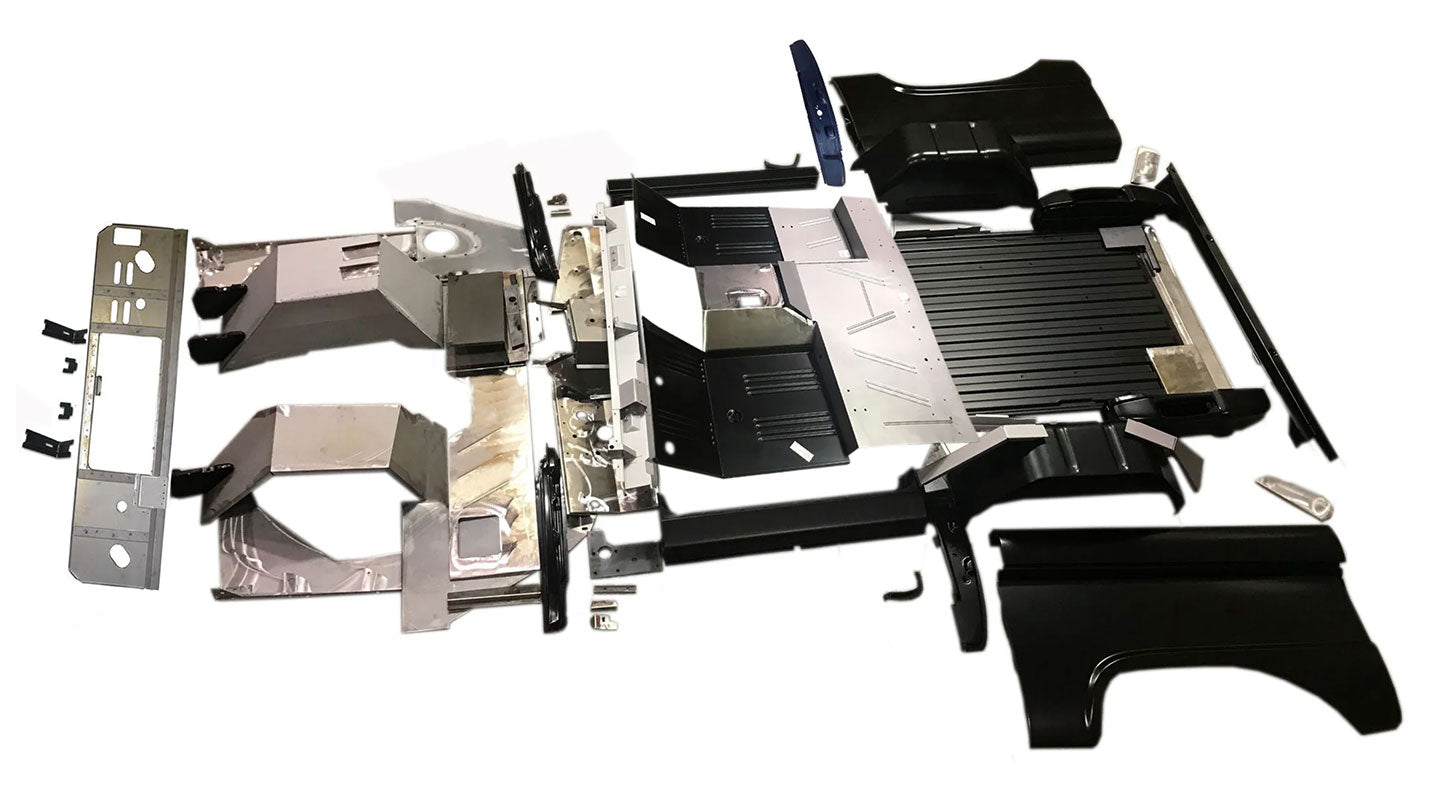

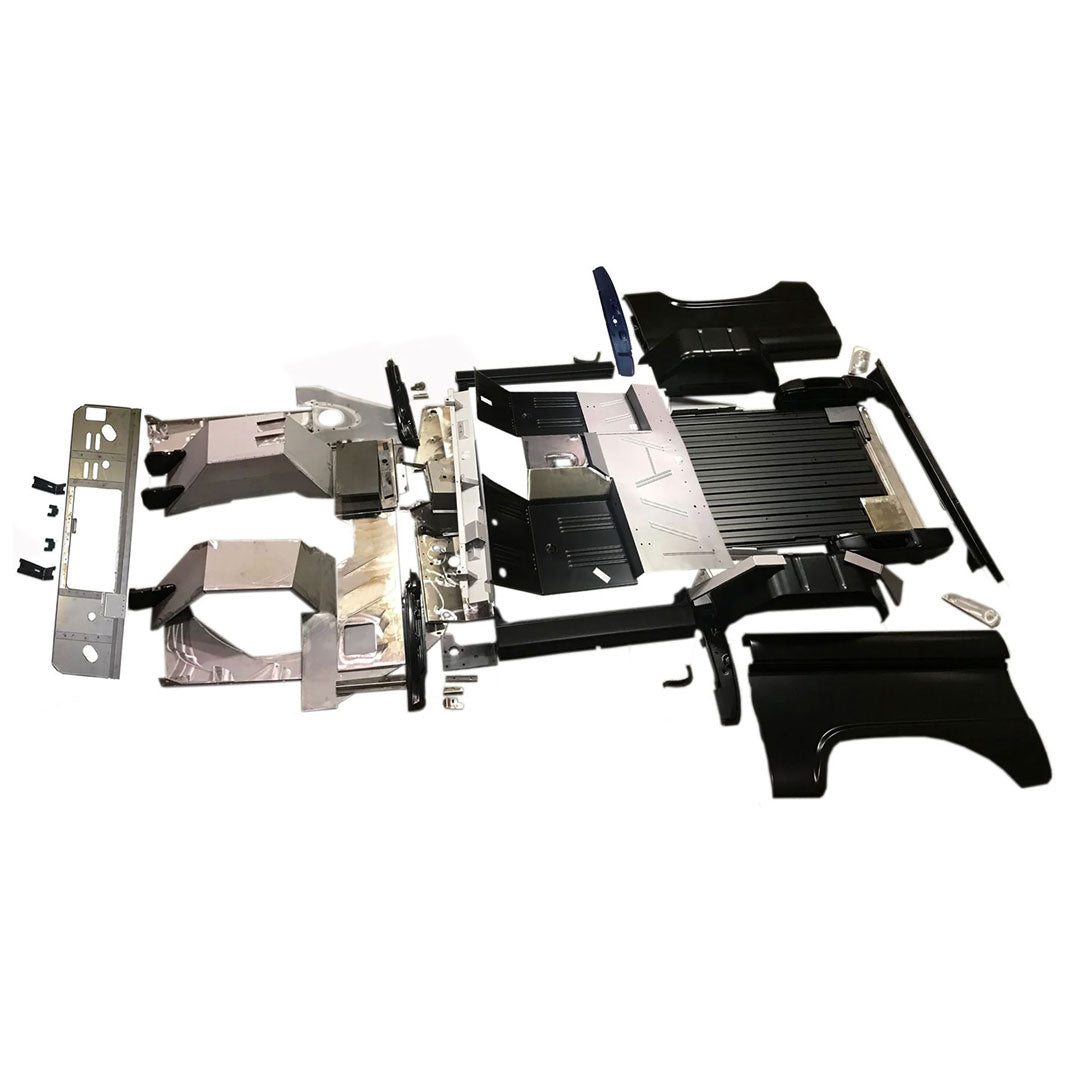

This Complete Body Tub Kit includes all the sheet metal components required to build a full Early Bronco body tub. Designed for serious restoration or custom build projects, this kit provides the foundation to assemble an entire Bronco body from the firewall back. Not all pieces may be pictured, and full assembly is required.

This kit is configured to work with 1968-1977 Bronco doors. If you plan to run 1966-1967 doors, please note this during checkout and the correct early-style door pillars will be substituted.

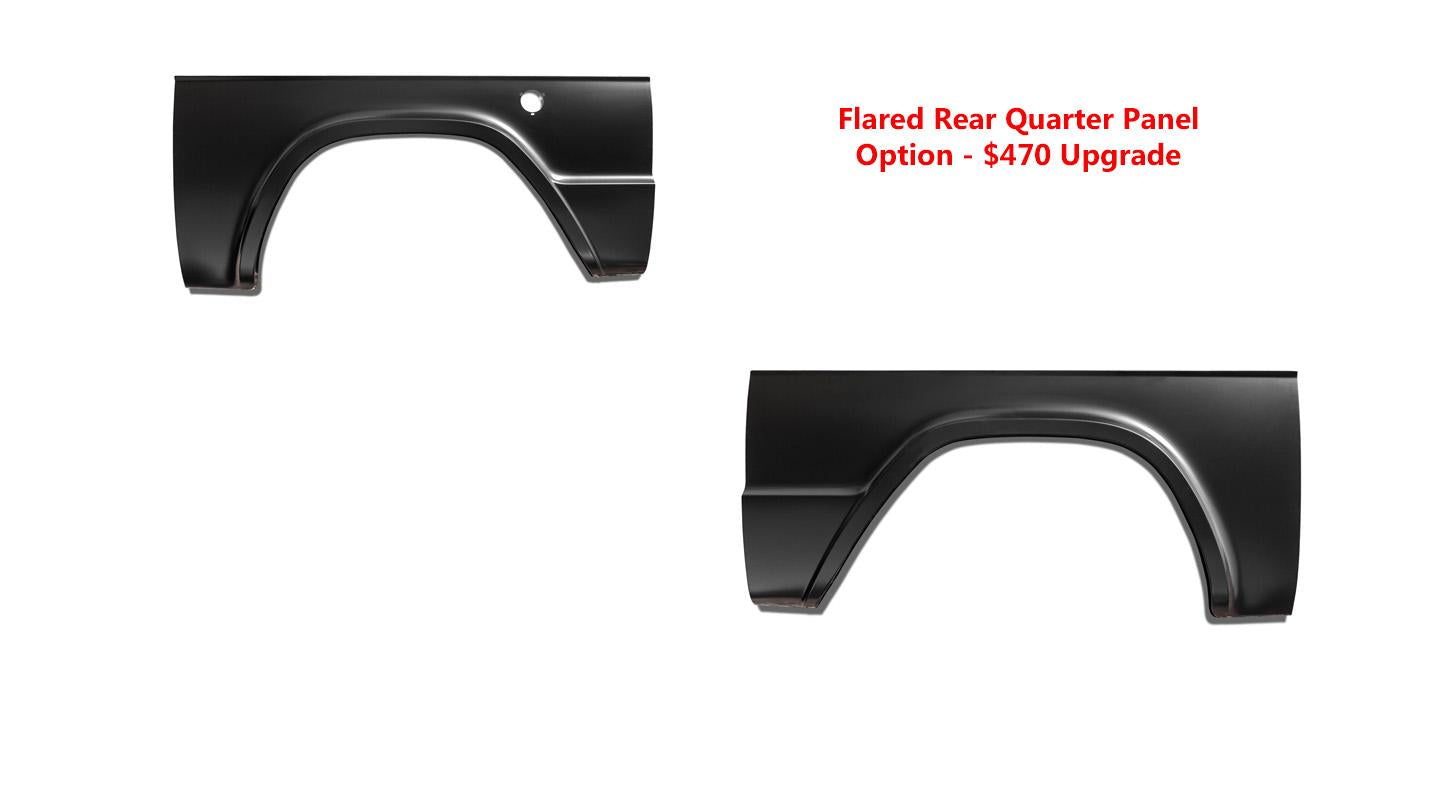

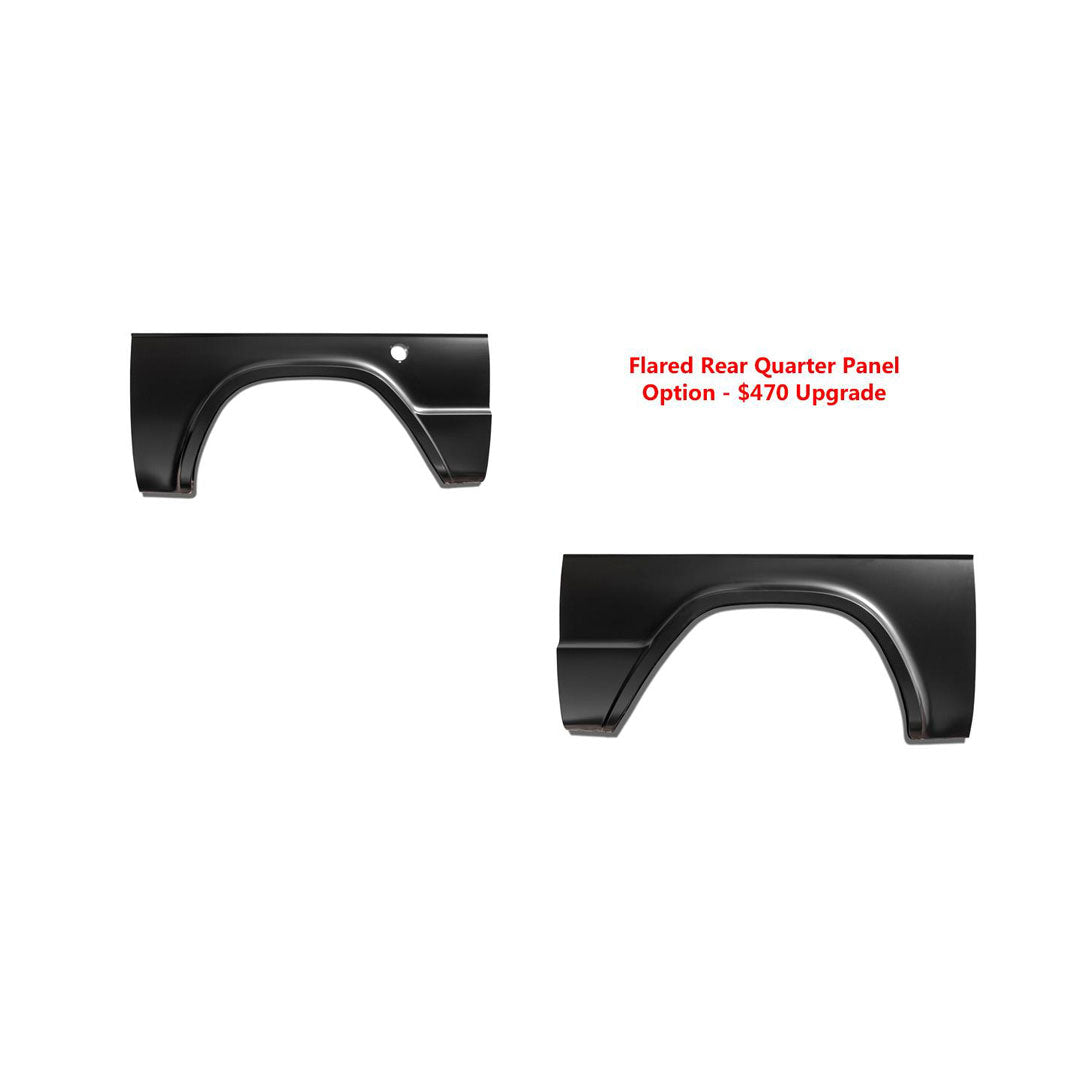

Optional Upgrade: You may upgrade this kit to include flared rear quarter panels. Please select this option from the dropdown menu above.

Important Disclaimer: These body tubs require extensive fitting and welding. These kits do not simply bolt together and will require cutting, grinding, alignment, and welding to achieve proper fitment. Welding experience is strongly recommended, and this kit is not advised for first-time fabricators.

Kit Includes

• Windshield frame cowl panel
• Driver and passenger upper cowl panels
• Driver, passenger, and center dash firewall panels
• Firewall heater box reinforcement panels
• Parking brake and clutch firewall reinforcement panels
• Inner kick panels, driver and passenger
• Front wheel wells and inner fender skirts
• Radiator core support and bracket kit
• Front wheel well to firewall braces
• Radiator hangers
• Lower dash center panel
• Parking brake cable floor and mounting brackets
• Floor pan seat reinforcements
• Rear floor pan and support cross rails
• Fuel filler neck extension panels and support bracket
• Rear wheel well tubs and extension panels
• Tail light housings and lower support brackets
• Upper and lower inner quarter panels, driver and passenger
• Tailgate posts, driver and passenger
• Rocker panels, pair
• Front and rear door pillars with extension panels and braces
• Door pillar to cowl braces, inner and outer
• Emergency brake cable brackets

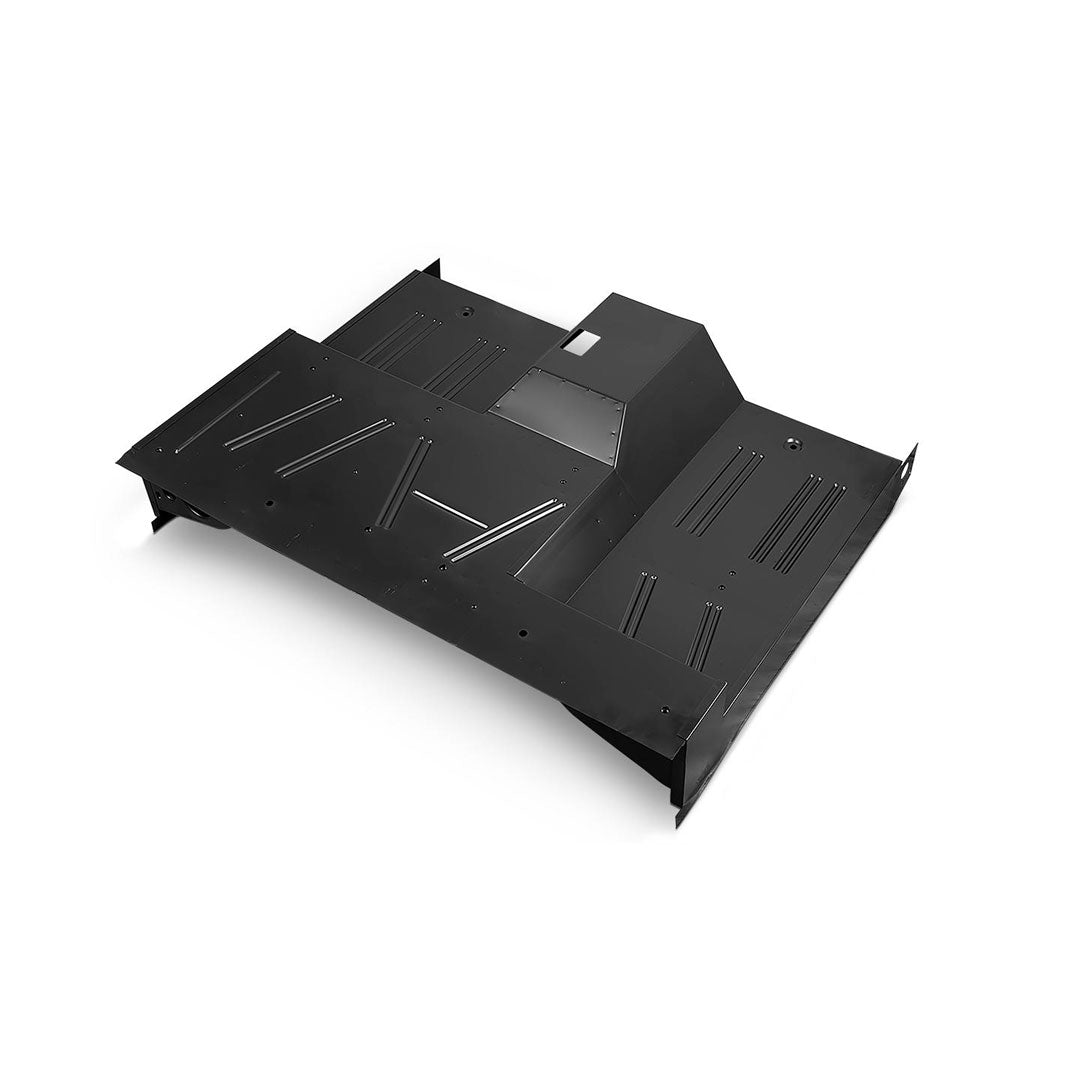

• Welded front floor pan set

Features

• Fits 1966-1977 Ford Broncos
• Complete sheet metal kit to build a full body tub
• OE-style stamped steel panels for factory fit and appearance
• Compatible with 1968-1977 doors (66-67 door option available)
• Optional flared rear quarter panel upgrade
• Heavy-gauge steel construction throughout
• Ideal for full restorations, custom builds, or severe rust repair

This Complete Early Bronco Body Tub Kit is the ultimate starting point for a ground-up restoration or custom build, offering unmatched coverage, flexibility, and factory-style construction for serious Bronco projects.
