Ford 9 inch Rear Axle Housing - HEAVY Duty, Large Bearing, 11 inch Drum Style

Heavy-Duty 9-Inch Rear Axle Housing – 1966–77 Ford Bronco

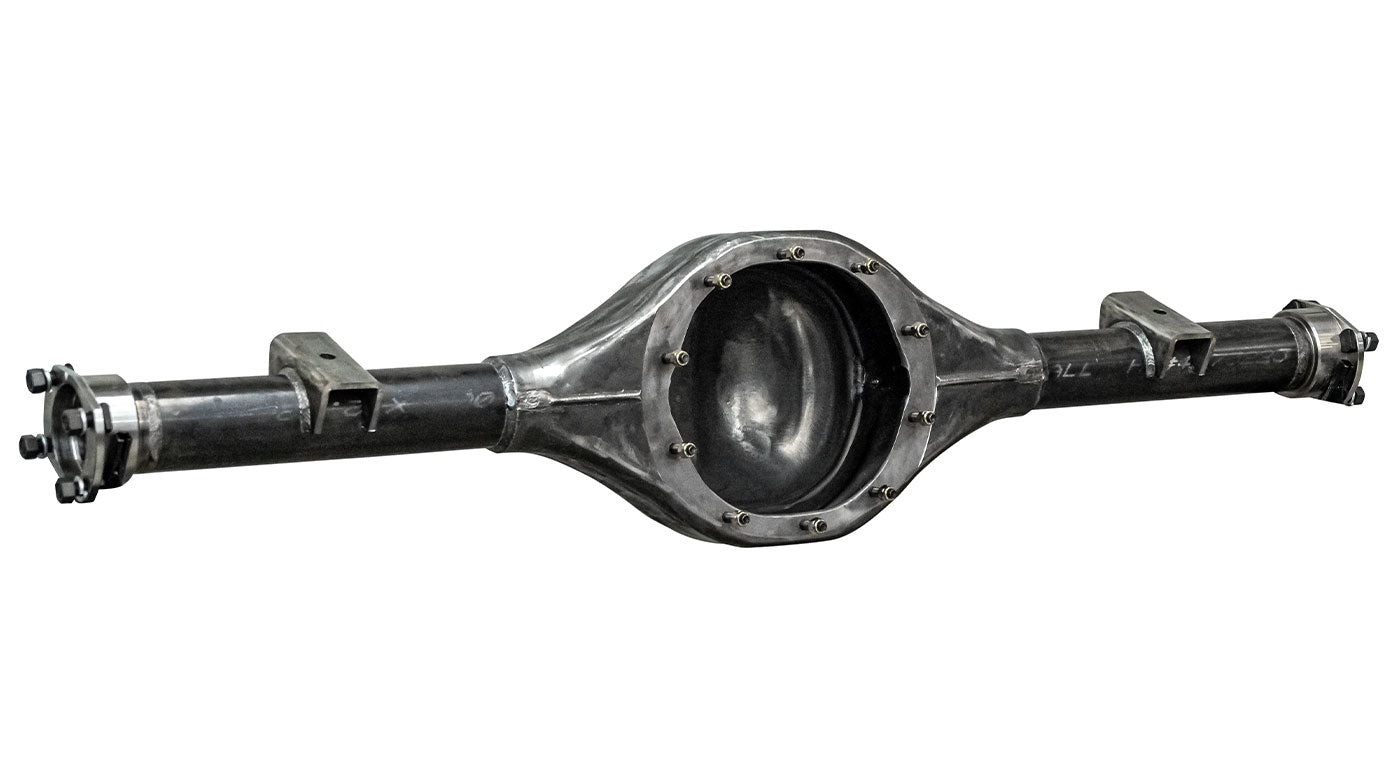

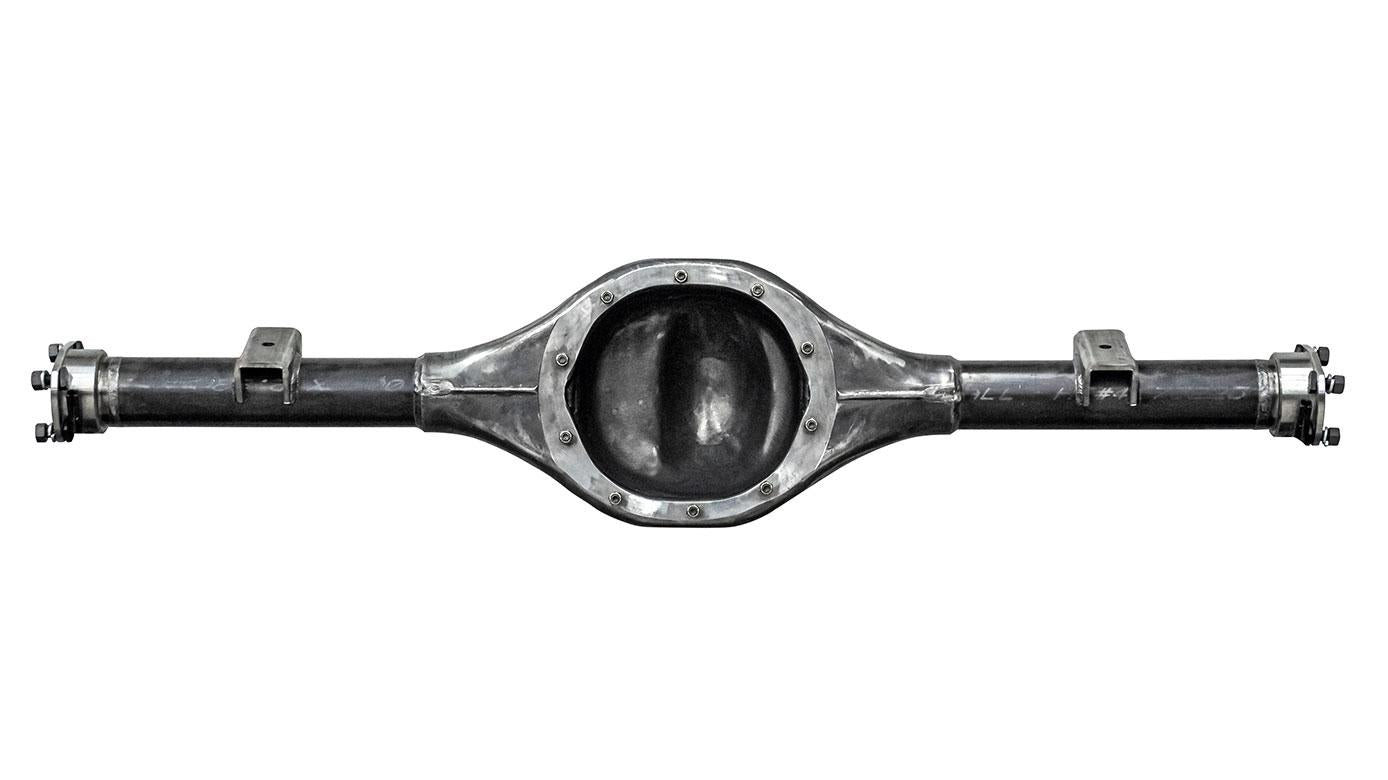

This new heavy-duty rear axle housing for Ford 9-inch differentials is manufactured exclusively for TOMS OFFROAD. Modeled after the stronger 1977 Ford Bronco housing, this unit features a reinforced center section compared to earlier versions, providing increased durability for high-demand applications.

The housing is designed for use with 11-inch drum or disc brake systems and is an ideal match for our 31-spline axle kits using Set 20 bearings. It can also be used with stock big-bearing Early Bronco axles when paired with a set of TOMS OFFROAD #2935 oil seals. Compatible with both 1966–75 and 1976–77 11-inch drum brake configurations, but all brake components must match the same year range.

Specifications

• Fits 1966–77 Ford Broncos
• 53 3/8" flange-to-flange width
• Patterned after the heavy-duty 1977 Bronco 9-inch housing
• Compatible with 11" drum and disc brake systems
• Works with 31-spline Set 20 bearing axle shafts
• Can be used with stock big-bearing axles (requires #2935 oil seals)

Features

• Heavy-duty reinforced center section
• Spring perches pre-installed
• Pre-drilled vent tube
• Shock mounts not included
• Includes installation instructions and stock mounting measurements

A high-strength rear axle housing solution for restorations, upgrades, and custom builds requiring improved durability and OEM-style compatibility.
