Rear Lower Shock Mounts, pair

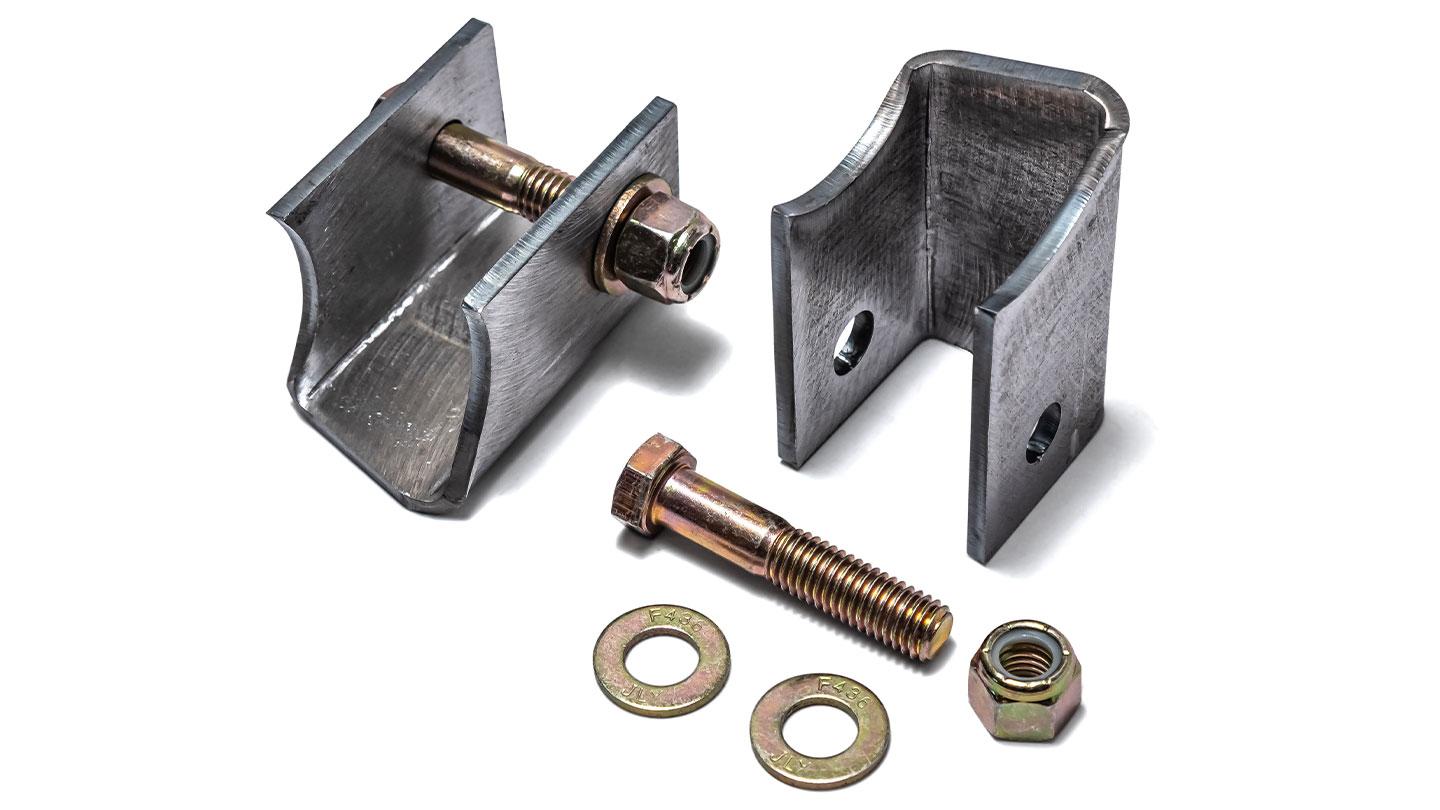

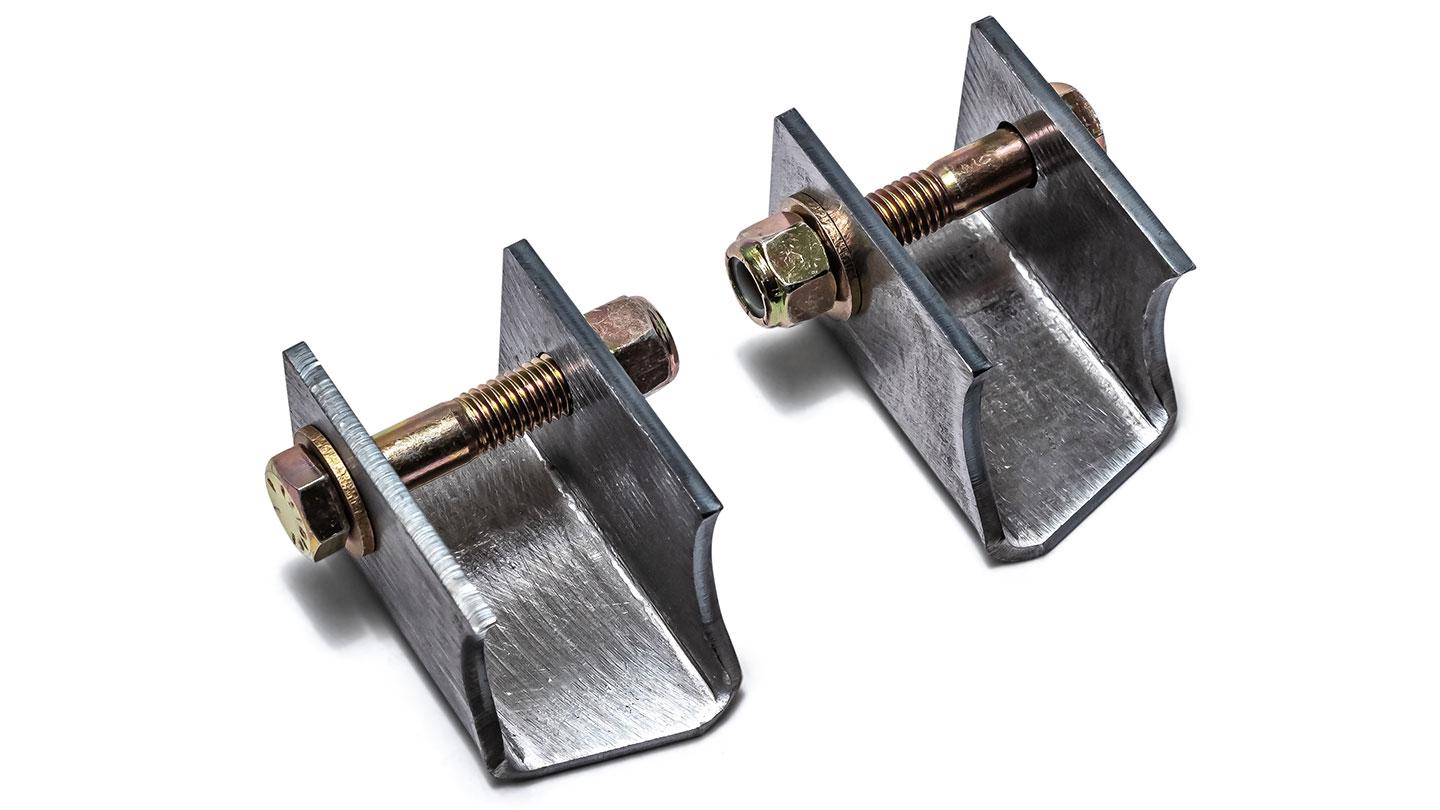

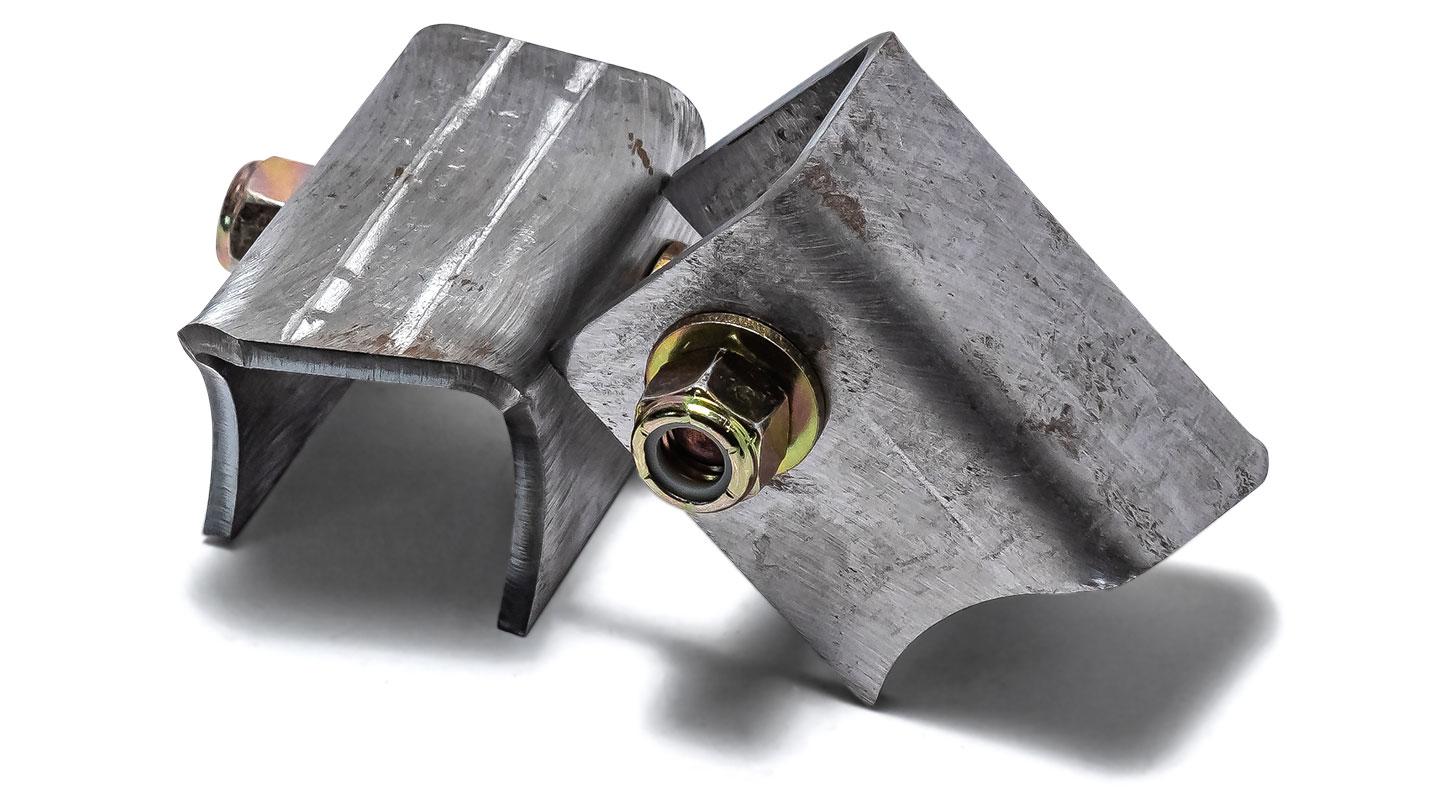

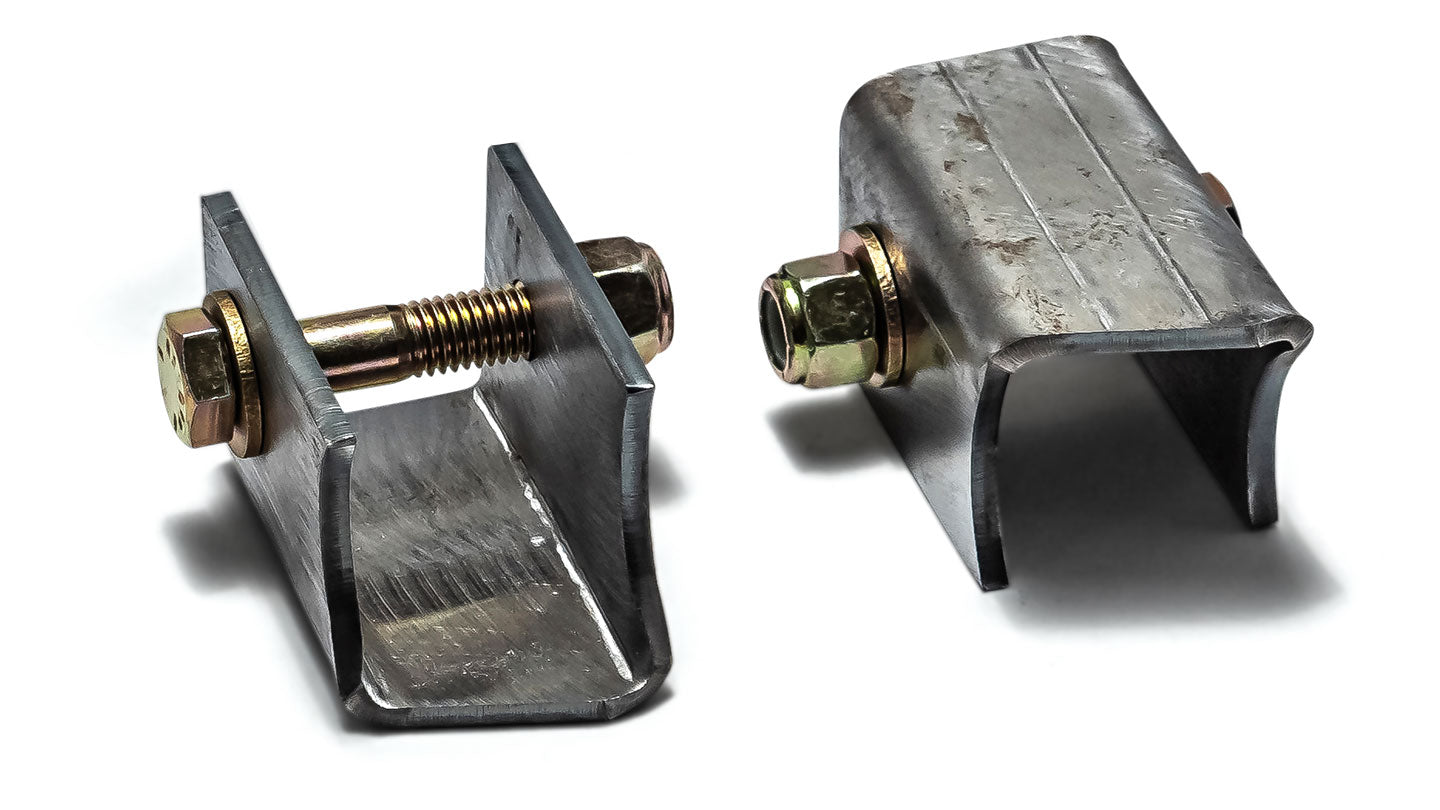

This is for a PAIR of LOWER Shock Mounts Only!  These new LOWER Rear Shock Mounts for 66-77 Ford Broncos weld onto the rear axle housing to provide the lower mount. These are great for adding custom mounts or for repairing your bad factory shock mounts. INSTALLATION REQUIRES WELDING! Bolts are not included, for illustrative purposes only!

Installation location: Factory location: On a early Bronco width housing (53.5"), measure in 4.25" from the housing end, This will be the center of the shock mount. With the drop in mount flange portion of the housing vertical, the rear shock mounts should be sloped rearward 21 degrees. The mounts also angle inward since the upper shock mount is closer to the centerline of the body. If you have rear disc brakes, we recommend 5" for the center measurement for proper caliper clearance.
