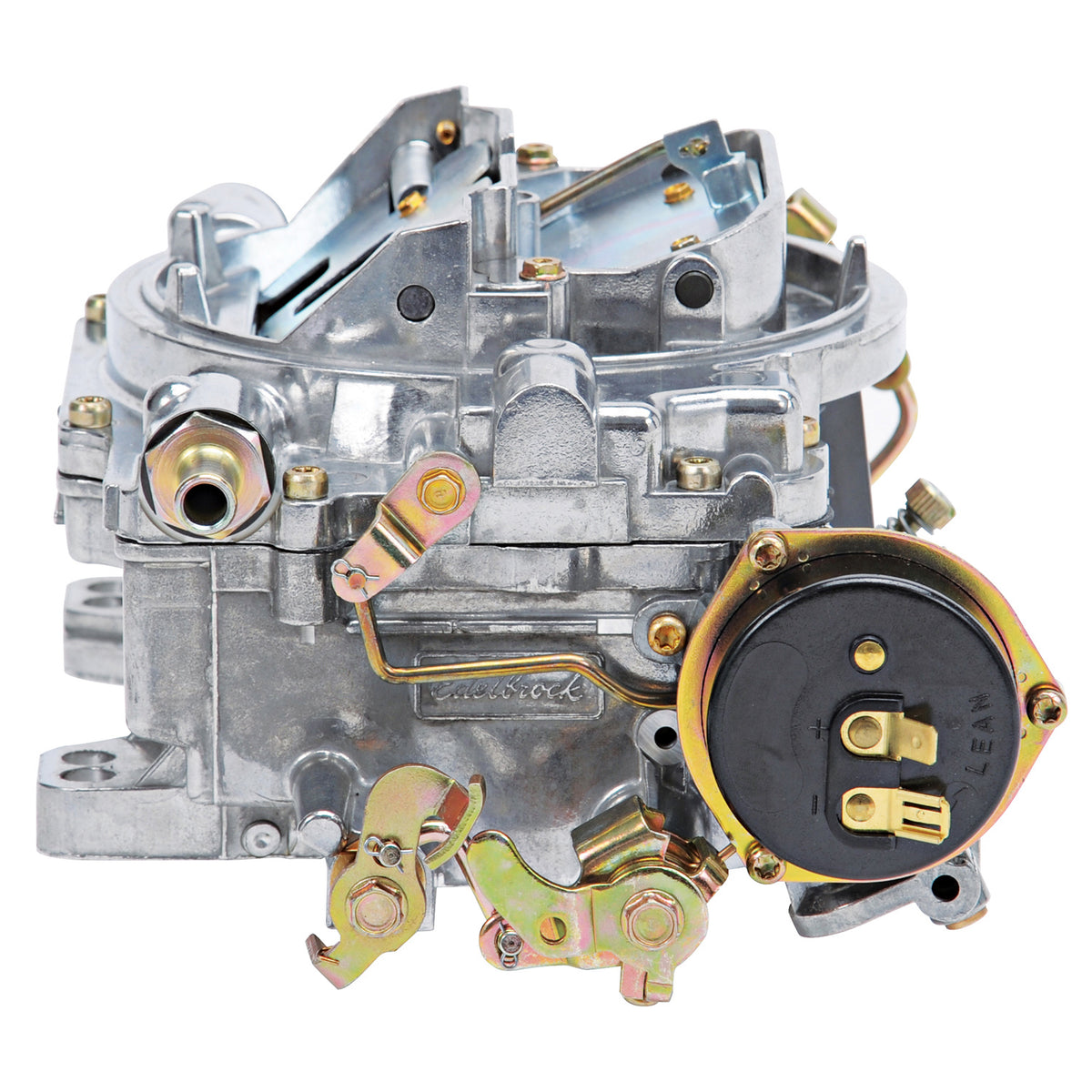

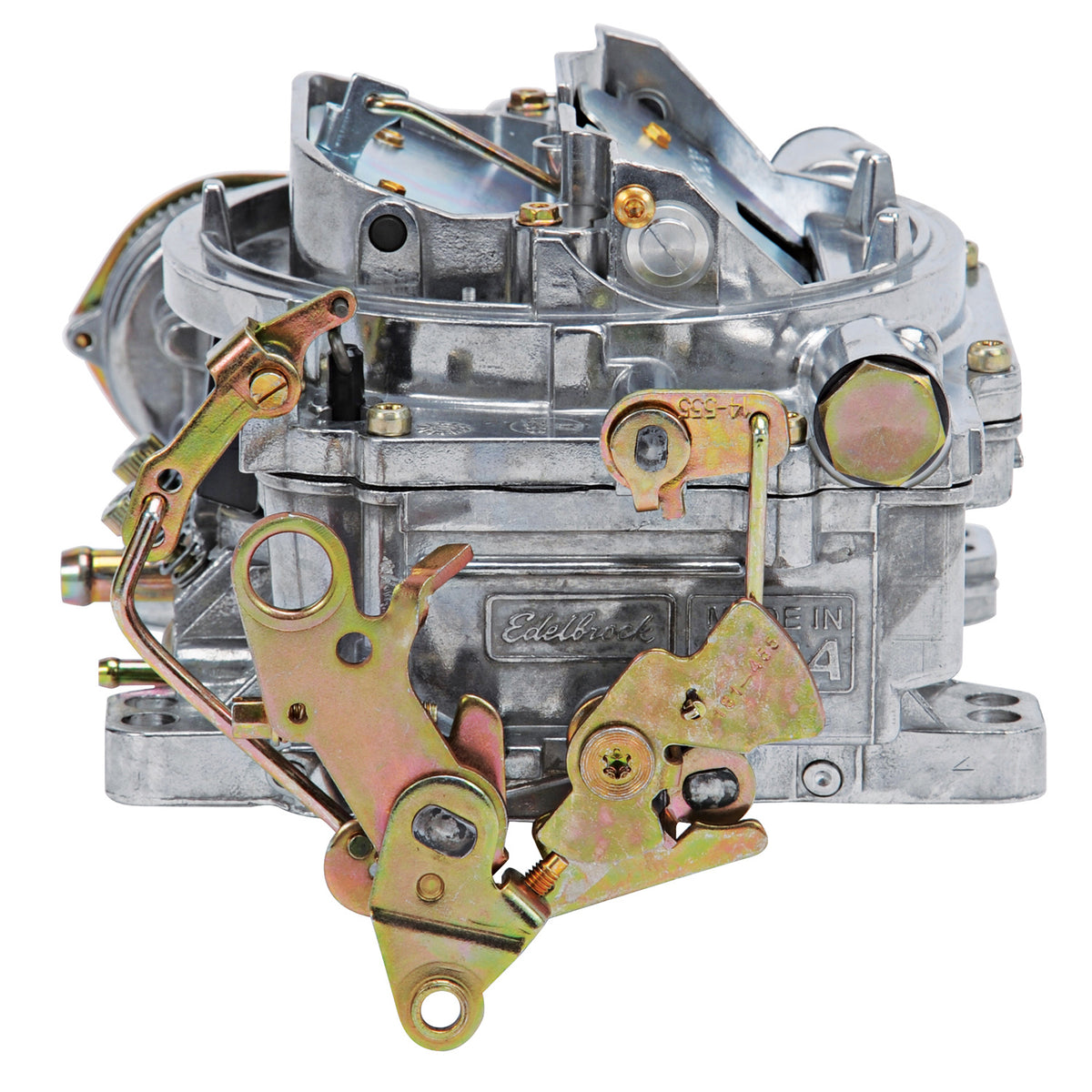

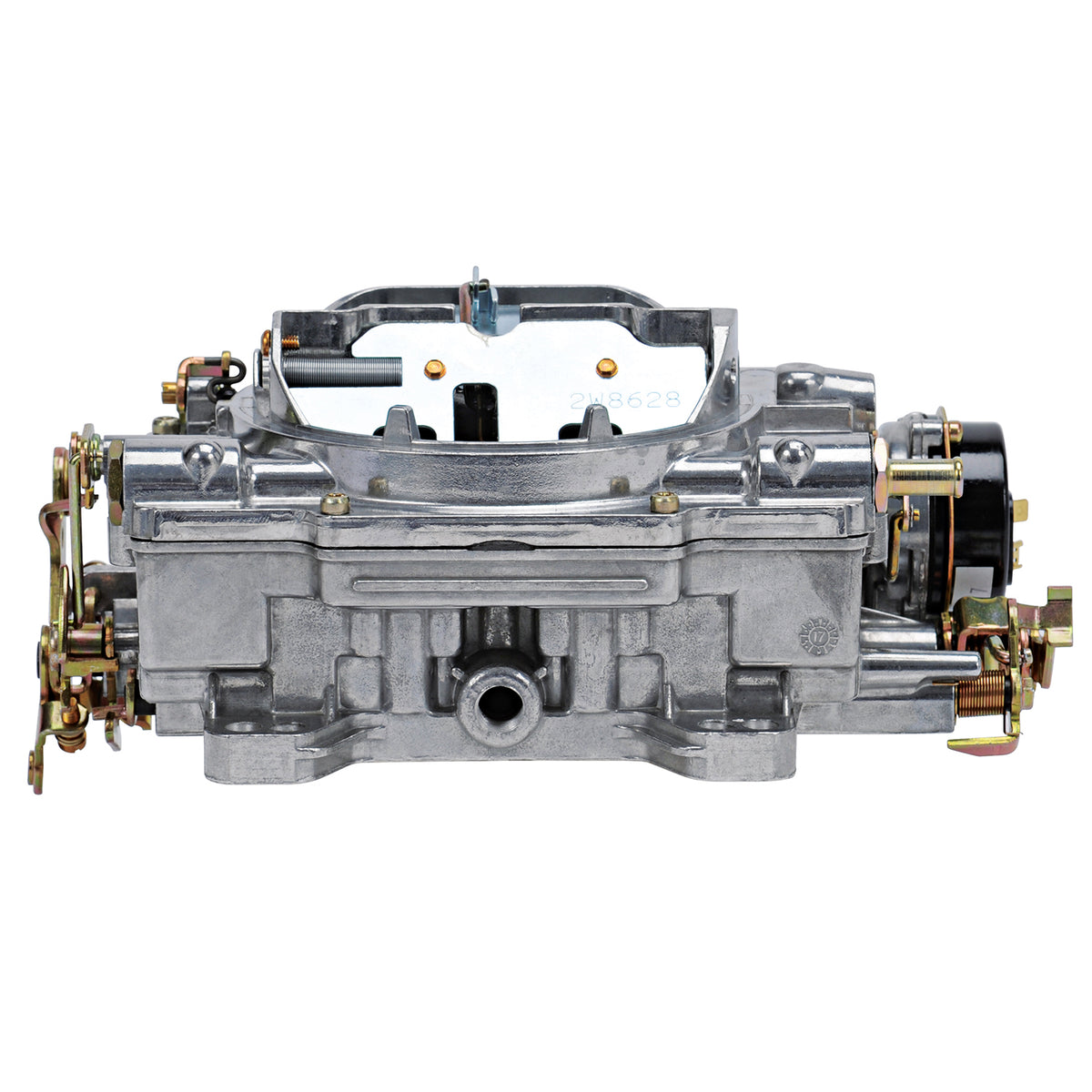

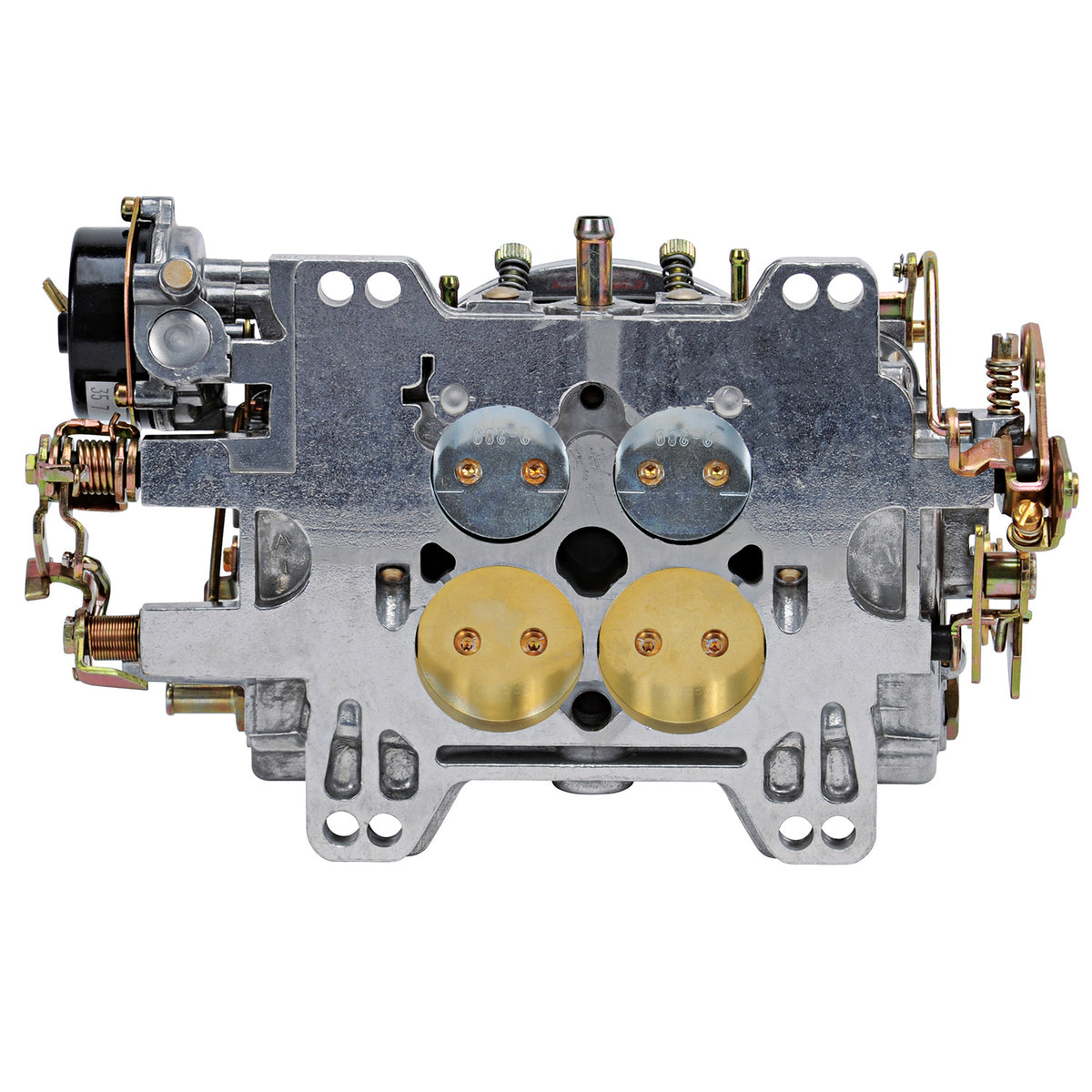

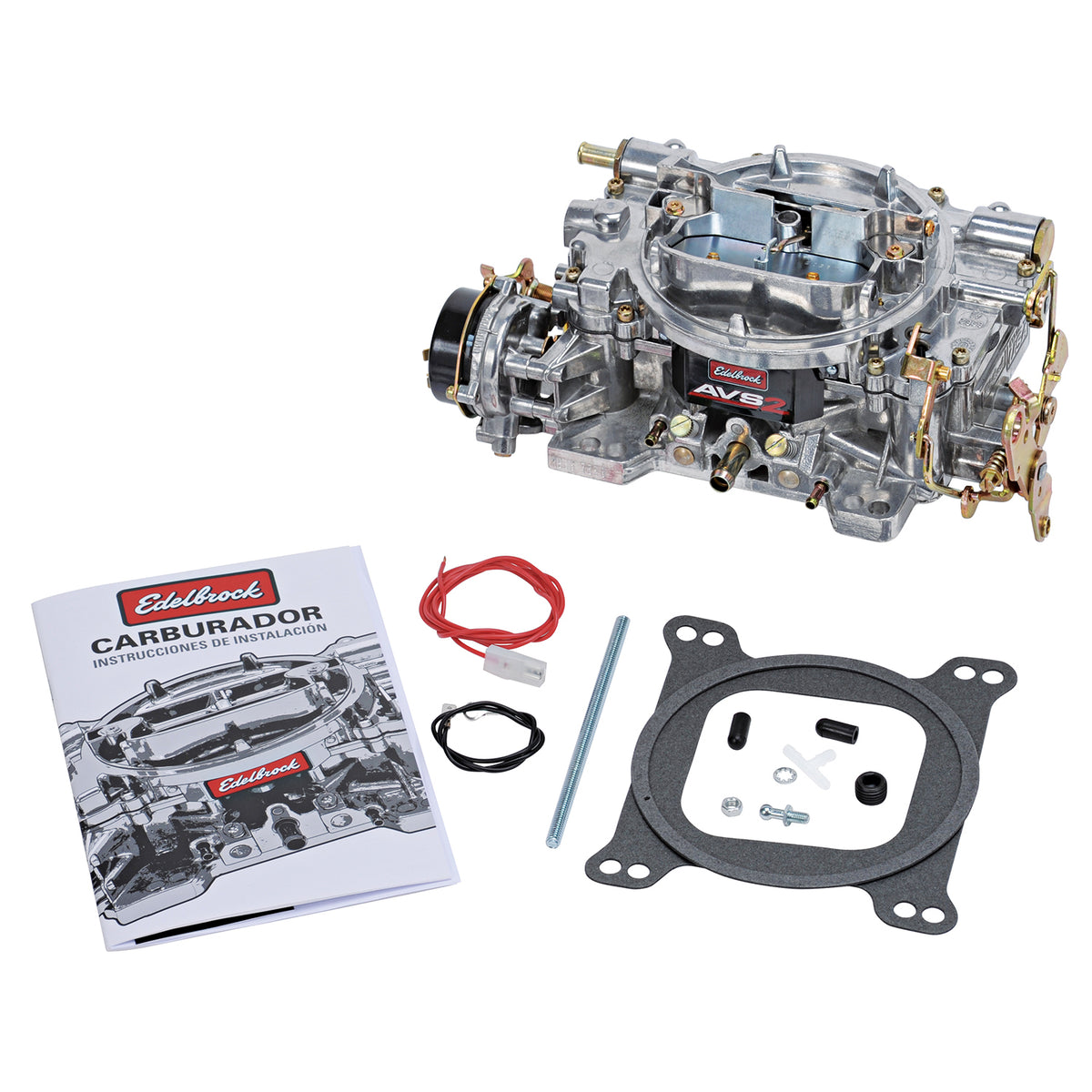

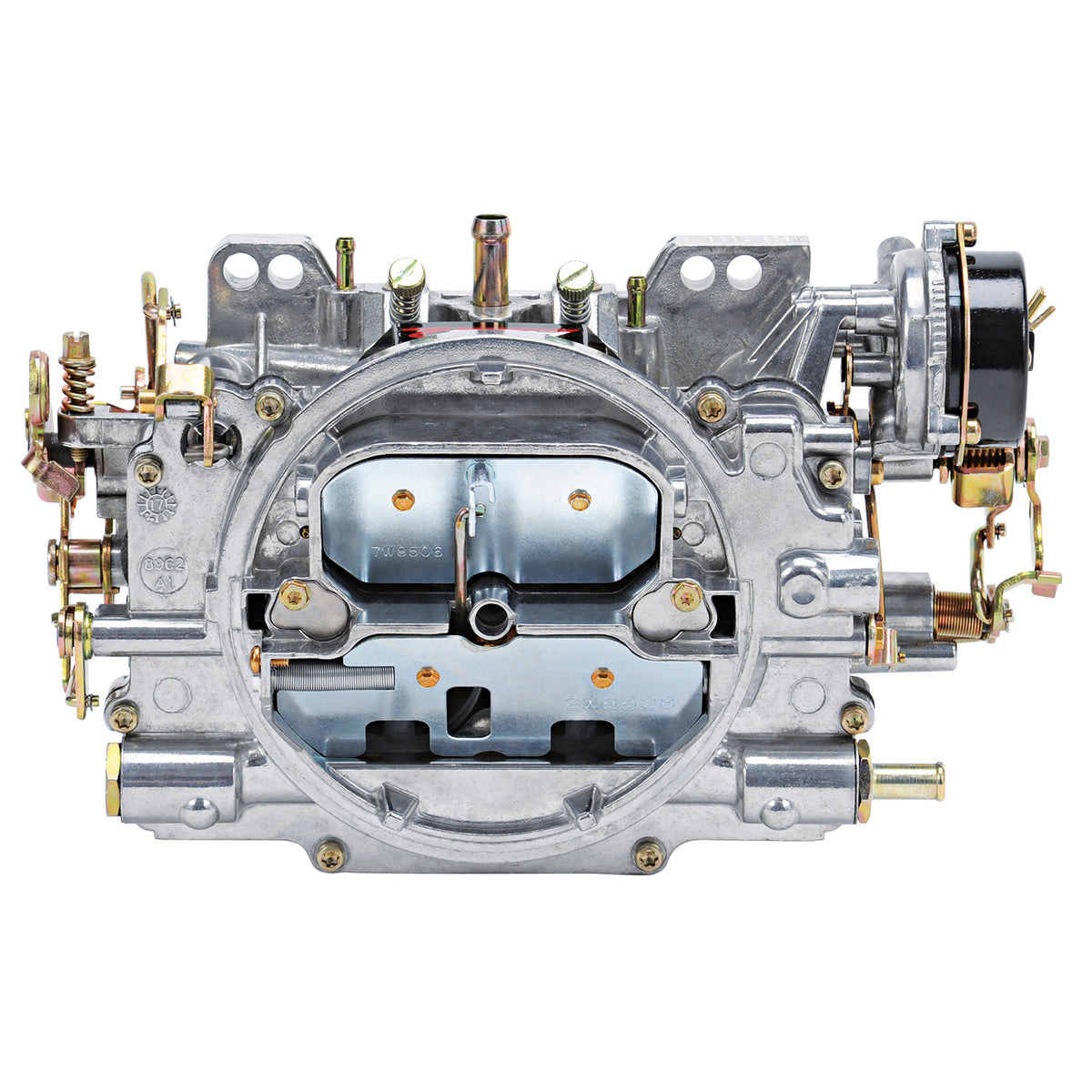

Edelbrock AVS2 Off-Road Carburetor #1916 650 CFM w/ Electric Choke, Satin

Edelbrock AVS2 Off-Road 650 CFM Electric Choke Carburetor #1916

The Edelbrock AVS2 Off-Road Carburetor #1916 is a 650 CFM electric choke carburetor engineered for improved drivability and fuel control in off-road applications. Its Annular Flow Booster technology uses eight evenly spaced fuel orifices to provide a more uniform fuel spray, improving throttle response and helping eliminate flat spots throughout the low- to mid-RPM range without sacrificing top-end performance.

Designed to maintain better fuel control over rough terrain, the AVS2 Off-Road features a spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to help prevent unwanted fuel drip. Easily accessible metering rods, springs, and the Qwik-Tune Secondary Air Valve provide straightforward calibration, while the two-piece carburetor design allows float adjustments and internal component service without removing the carburetor from the engine.

Features

• 650 CFM airflow capacity
• Electric choke
• Designed specifically for off-road applications
• Annular Flow Booster technology for improved fuel atomization
• Eight evenly spaced booster orifices provide uniform fuel distribution
• Improved low- to mid-RPM throttle response
• Spring-loaded needle and seat for improved fuel control over rough terrain
• Spring-loaded anti-syphon ball helps prevent accelerator pump fuel drip
• No power valves to be damaged by engine backfires
• Metering rods and springs can be changed without carburetor removal or fuel draining
• Updated primary and secondary booster clusters calibrated for modern fuels and octane levels
• Qwik-Tune Secondary Air Valve allows adjustment of the secondary circuit with basic hand tools
• Two-piece design provides easy access for tuning and service
• Float level can be adjusted without removing the carburetor from the engine
• Manufactured by Edelbrock in the USA
• Edelbrock part #1916
