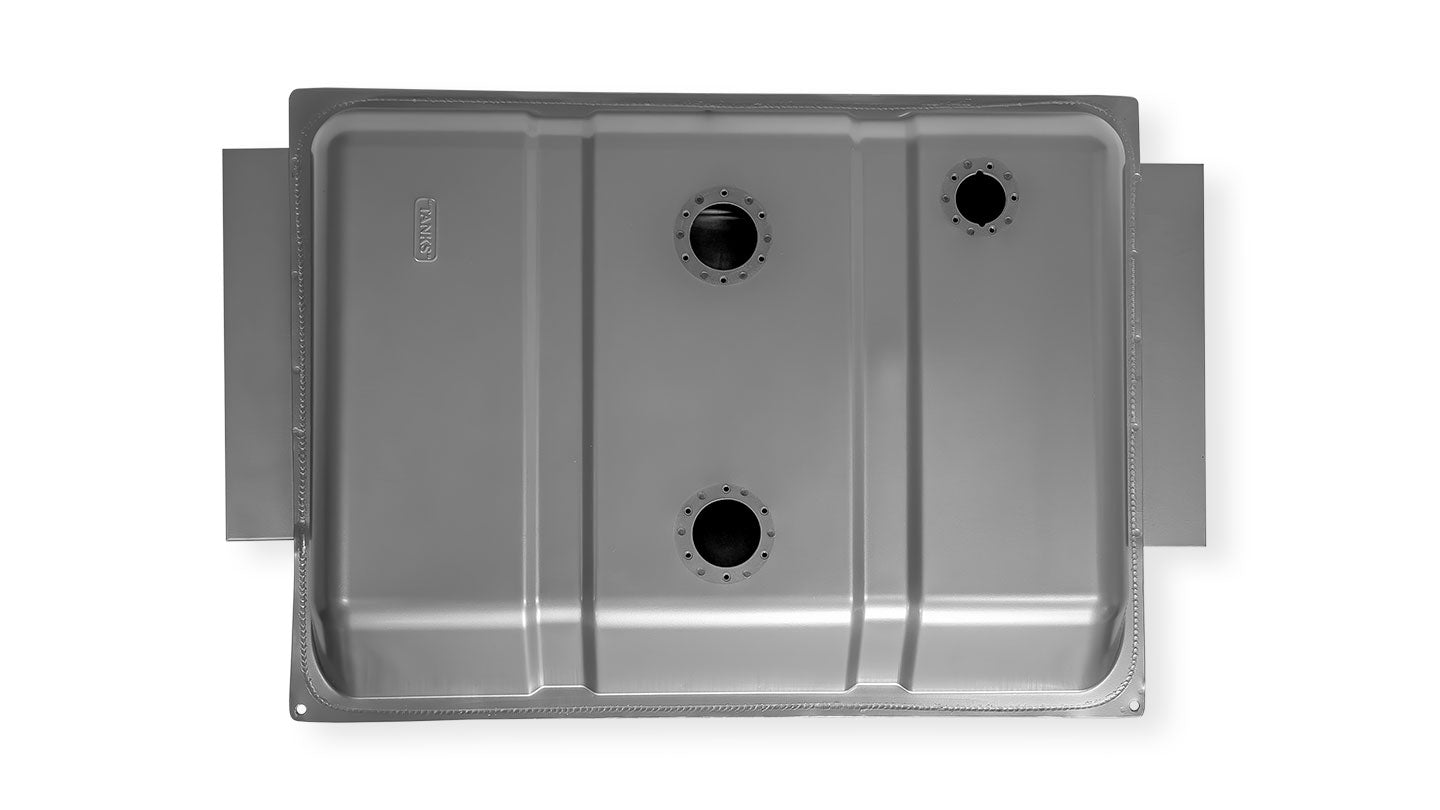

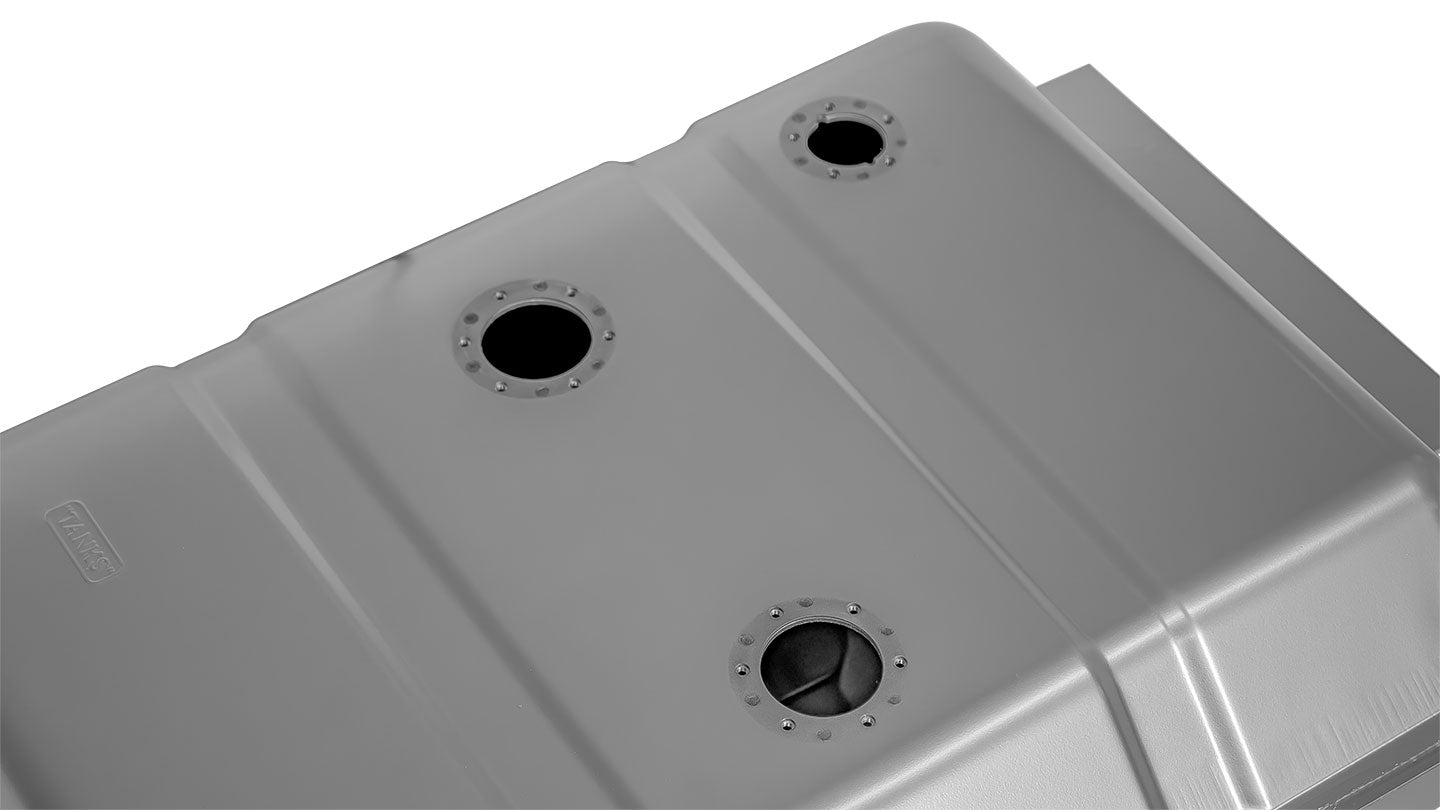

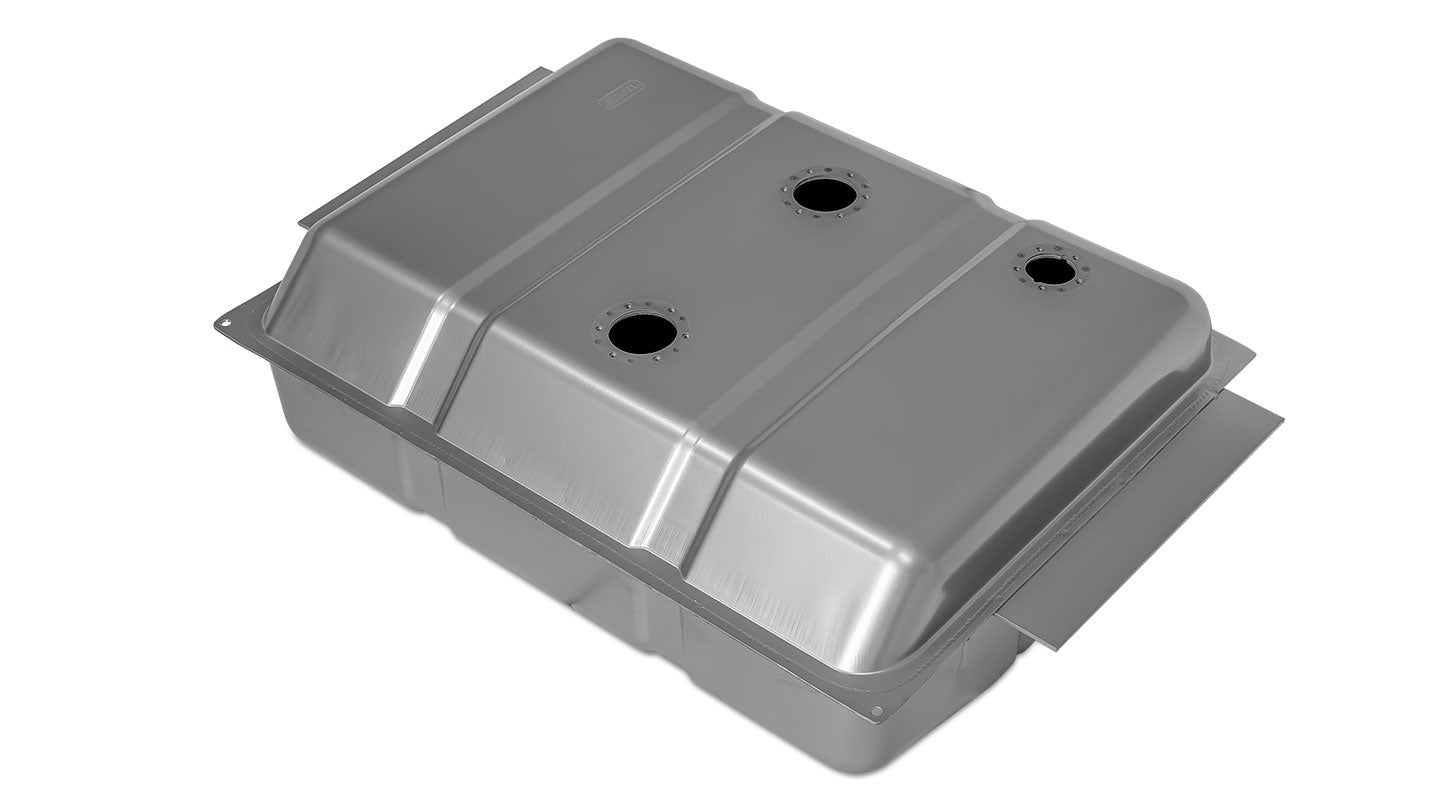

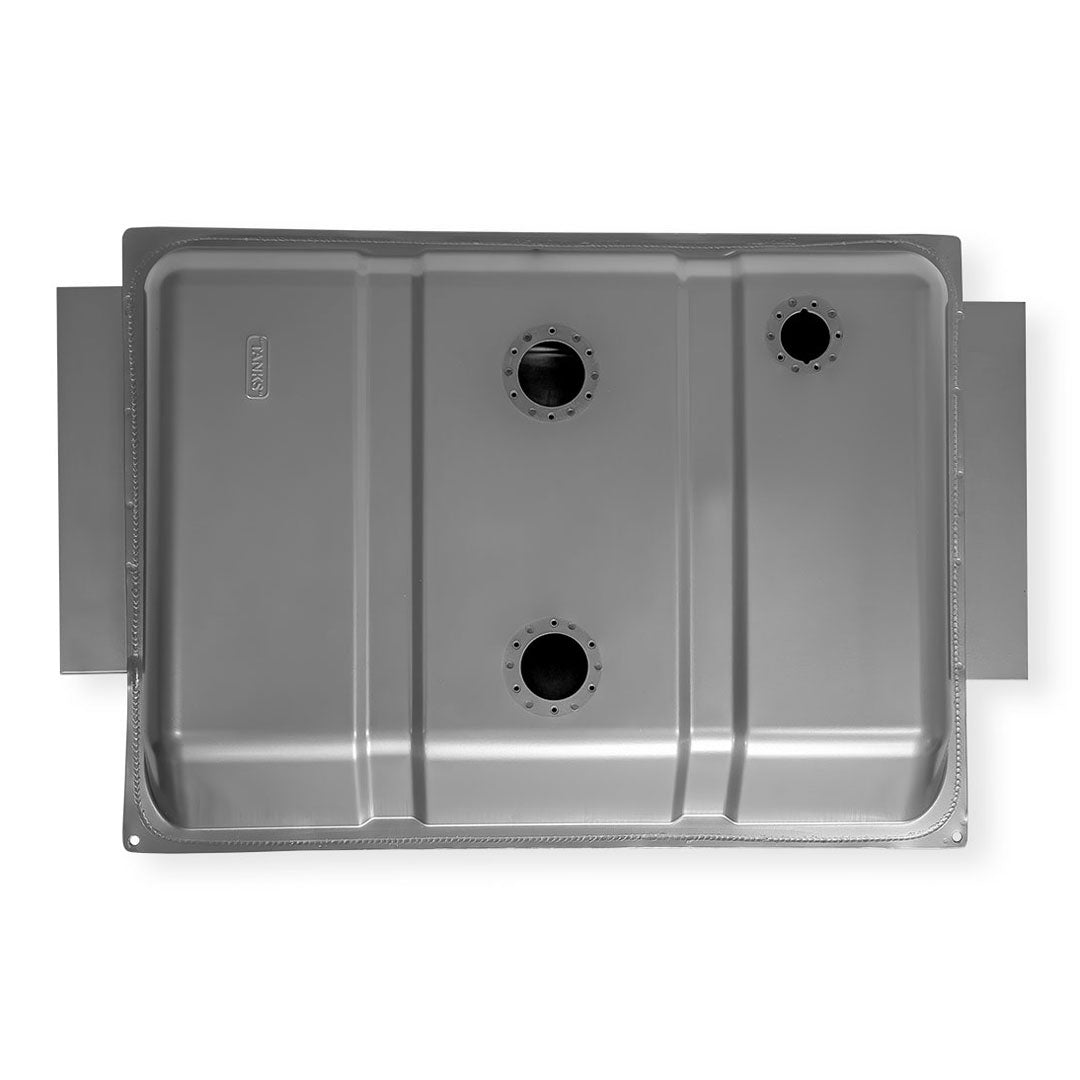

TOMS OFFROAD EFI Under Bed Gas Tank Kit – 1967–72 Ford F-Series Truck

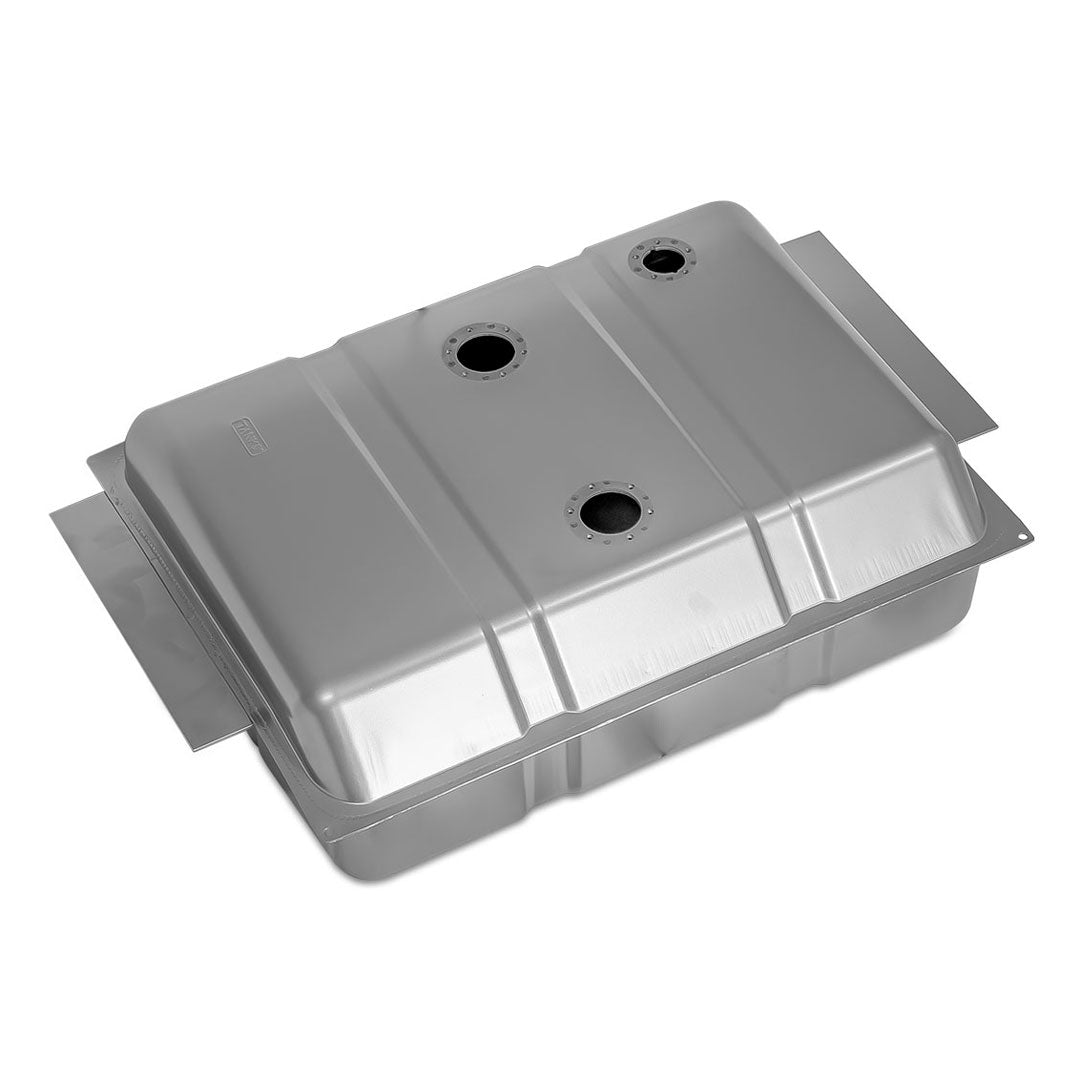

This is the EFI tank you’ve been waiting for to simplify adding a high-pressure fuel pump to your 1967–72 Ford F-Series Truck. Whether you’re running a Coyote swap or upgrading to aftermarket fuel injection, this under-bed frame mount tank kit has you covered. Designed to bolt to the underside of your truck bed using the included flanges, it offers flexible mounting configurations to fit your custom build needs.

Customizable Installation

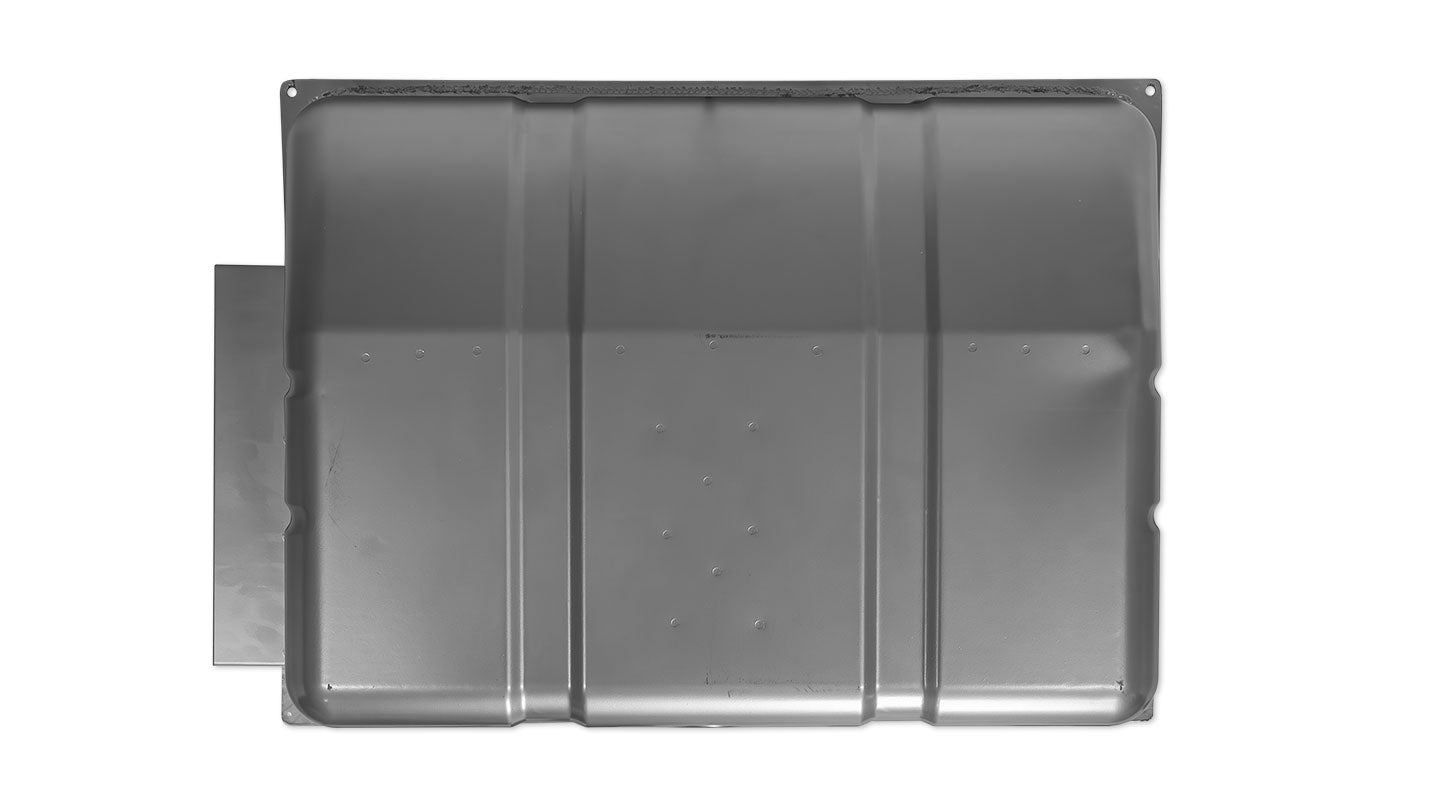

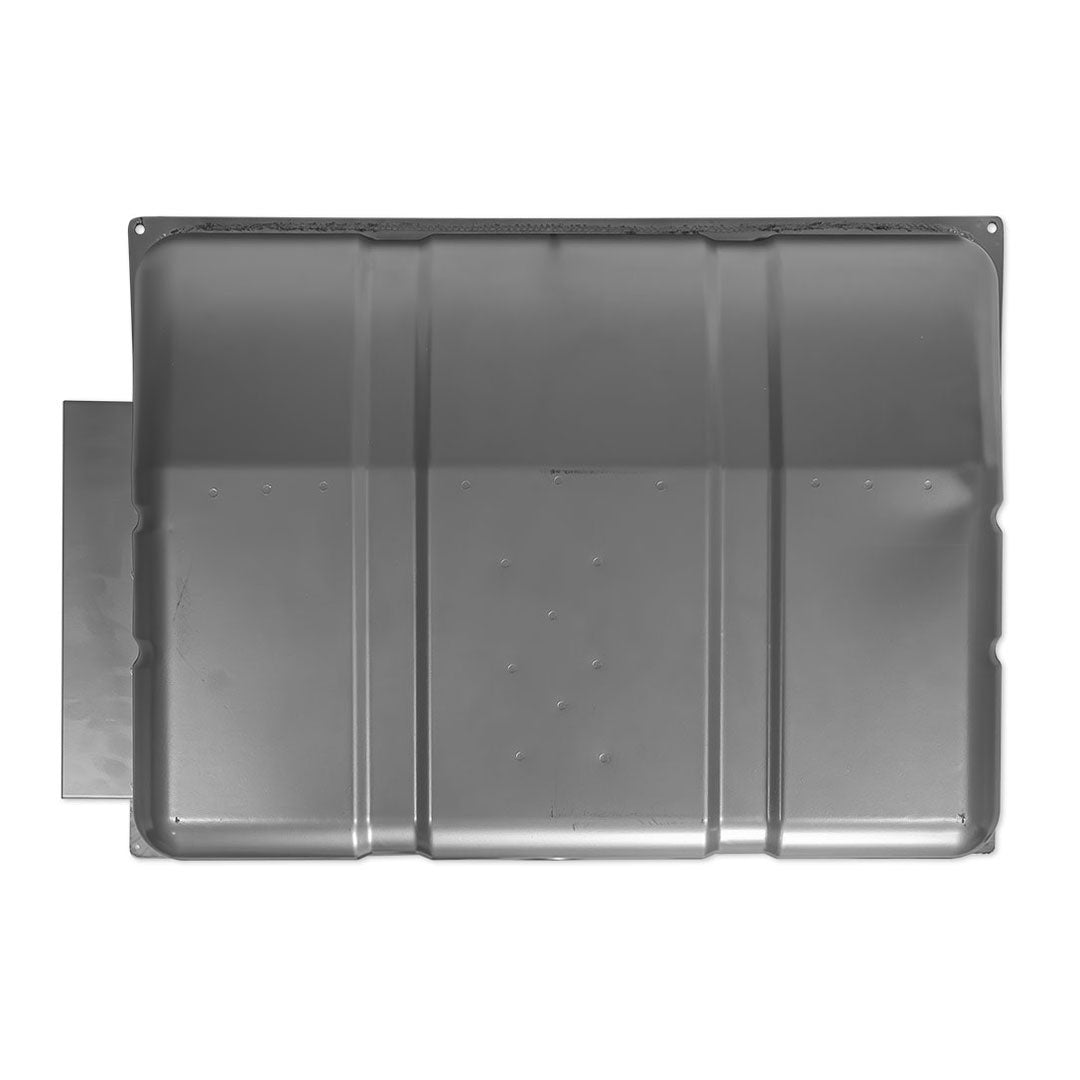

The tank is engineered to bolt to the bottom of the frame rails but can also be adapted for on-top or in-between frame rail mounting. Installers can drill and locate mounting holes as needed. (Note: Mounting hardware not included.) On stock frames, the bottom leg of the rear cross member must be notched for proper fitment.

Bed Fill Design

This is a bed fill tank, relocating the filler neck to the center of the bed floor for a clean, functional setup. Includes a 2-inch tall filler neck and an aluminum cap.

Durable, Fuel Injection Ready

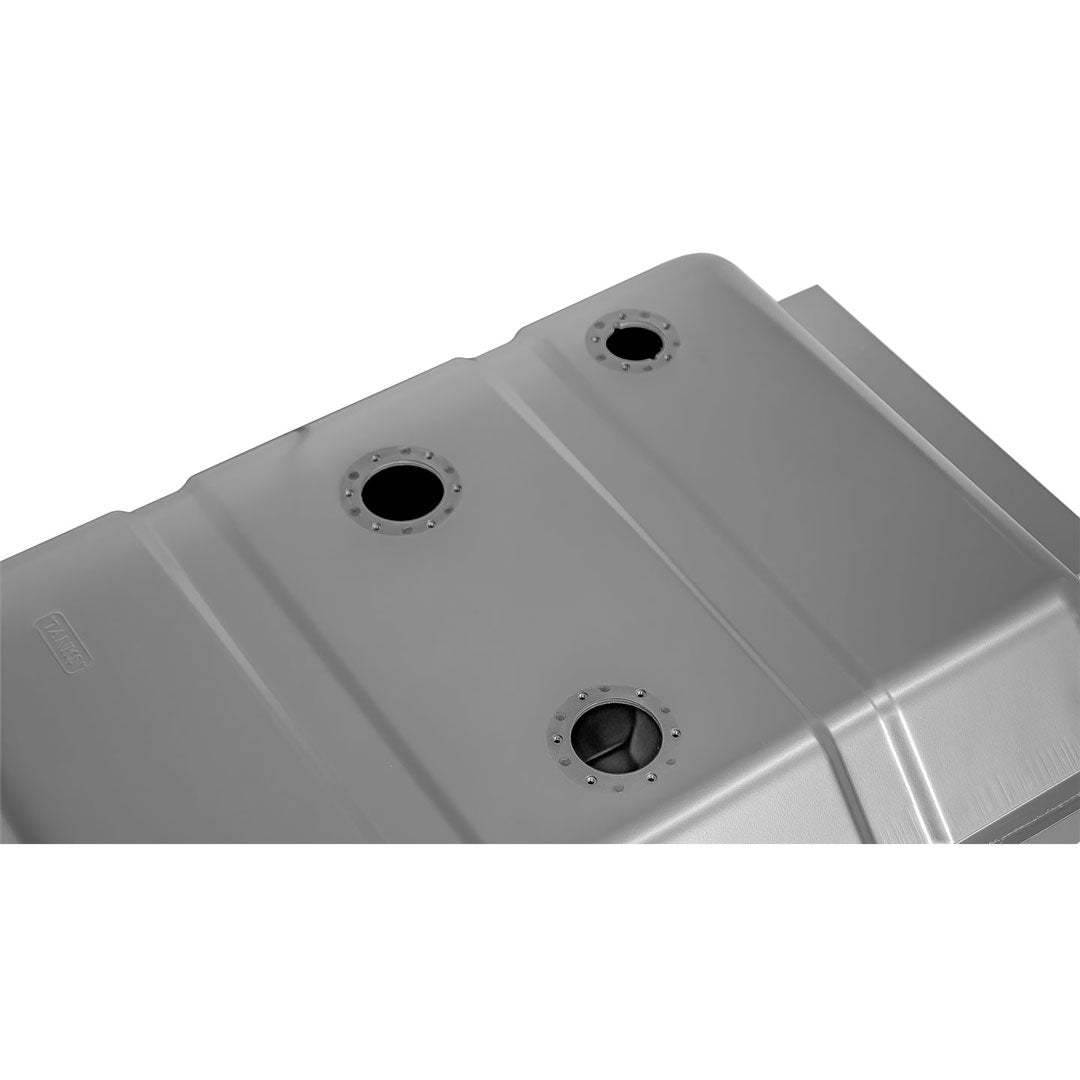

Built from die-stamped galvanized steel and finished in a tough silver powder coat, this tank is designed for strength and longevity. It features EFI-style internal baffling with an oversized 4.8L dual-tube fuel tray, ensuring consistent fuel delivery and preventing pump starvation.

Factory Gauge Compatibility

Uses aftermarket 5-bolt senders and works with factory 73–10 ohm gauges. Can also be used in carbureted applications with a different fuel pickup tube.

Product Highlights

• Fits 1967–72 Ford F-Series Truck
• 18-gallon capacity
• Bed fill design with 2" filler neck and aluminum cap
• Die-stamped galvanized steel with silver powder coat
• EFI-style internal baffling with 4.8L dual-tube fuel tray
• Works with factory gauges (73–10 ohm range)
• Adaptable for carbureted applications
• Tank dimensions: 32-1/4" x 20-1/2" x 9-3/4" (with flange)
• Tank dimensions: 28" x 20-1/2" x 9-3/4" (without flange)

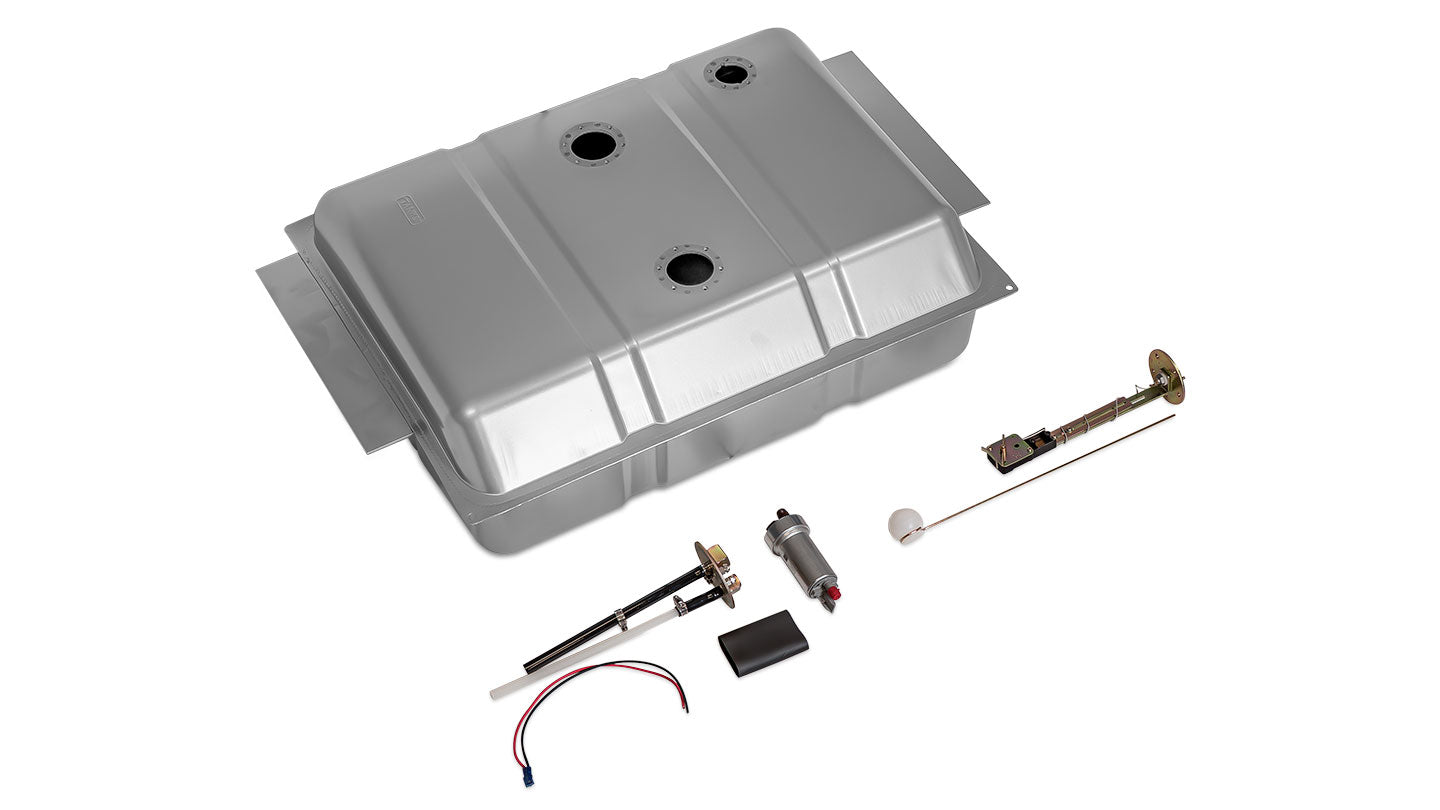

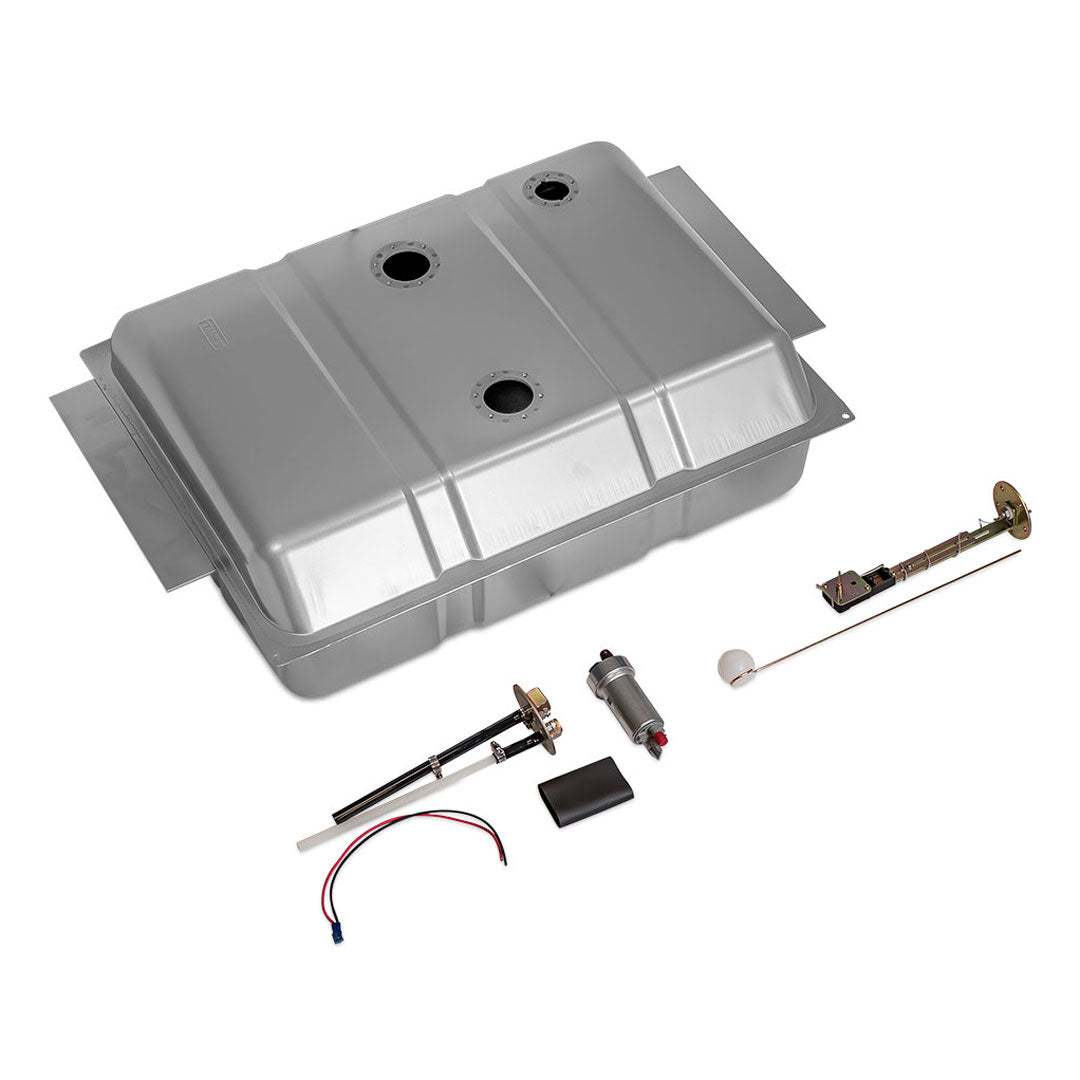

Fuel Tank Kit Includes

• Fuel tank

• Sending unit with ceramic board rheostat (cut-to-length design)

• Genuine Walbro 340 L/hr turbine-style high-flow fuel pump

• Internal wiring harness, supply line, return line, filter sock, and insulator sleeve


Fuel Pump & Mounting Plate Specifications (included in tank kit)

• Heavy 10-gauge no-warp mounting plate

• Yellow-zinc plated for corrosion resistance

• 1/4" NPT supply and return lines

• Barbed vent fitting

• Oven-brazed fittings for durability

• Supports up to 100 PSI

• Pulse Width Modulation (PWM) compatible


Why We Use Walbro Pumps

Walbro (TI Automotive) is a leading OE-validated fuel pump manufacturer, supplying products for two-thirds of the world’s vehicles. Their patented dual-channel deep-pocket pump design delivers unmatched efficiency, exceptional hot fuel handling, and rapid recovery from aeration. This tank includes a Walbro 340 L/hr pump capable of supporting high-performance applications while maintaining quiet, reliable operation.
