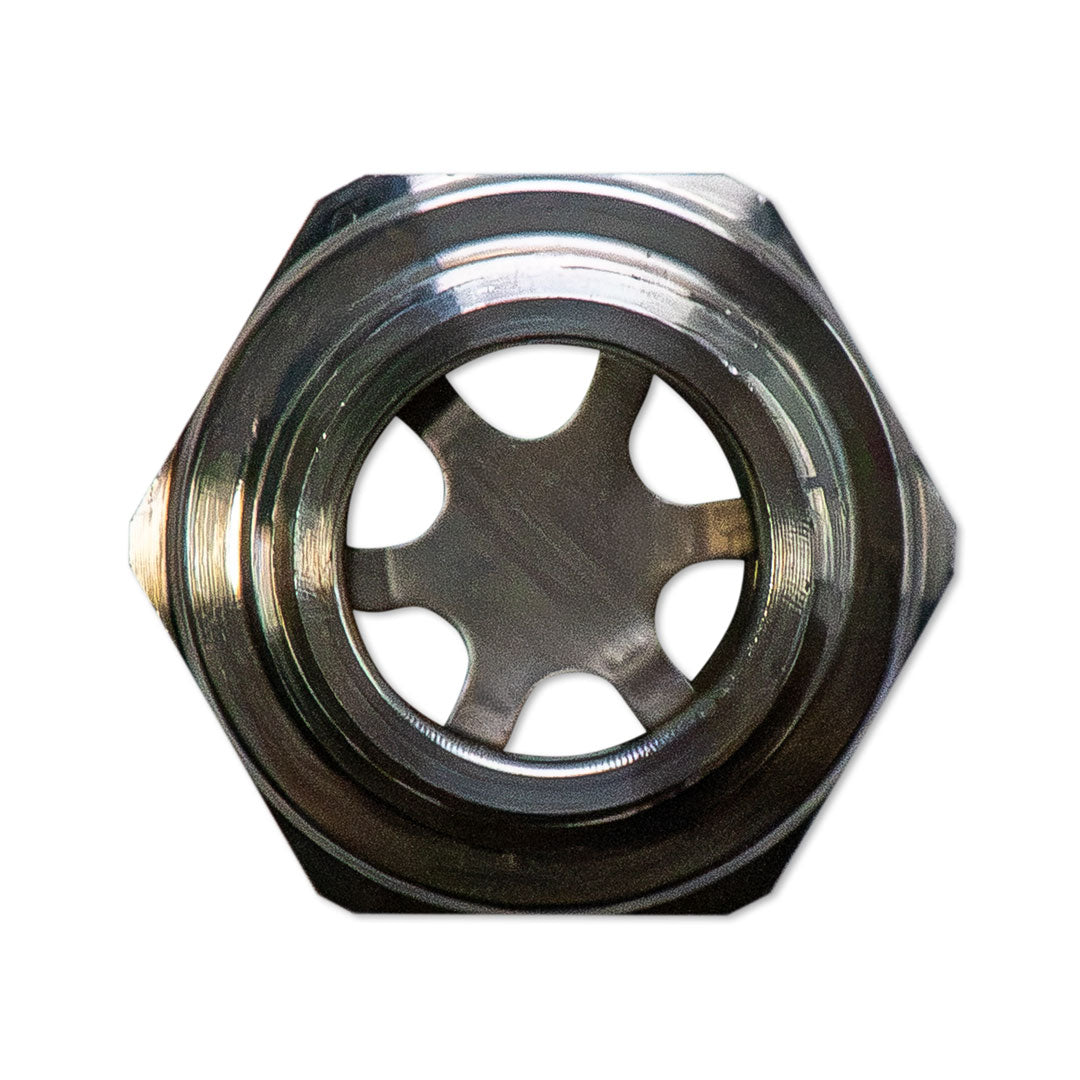

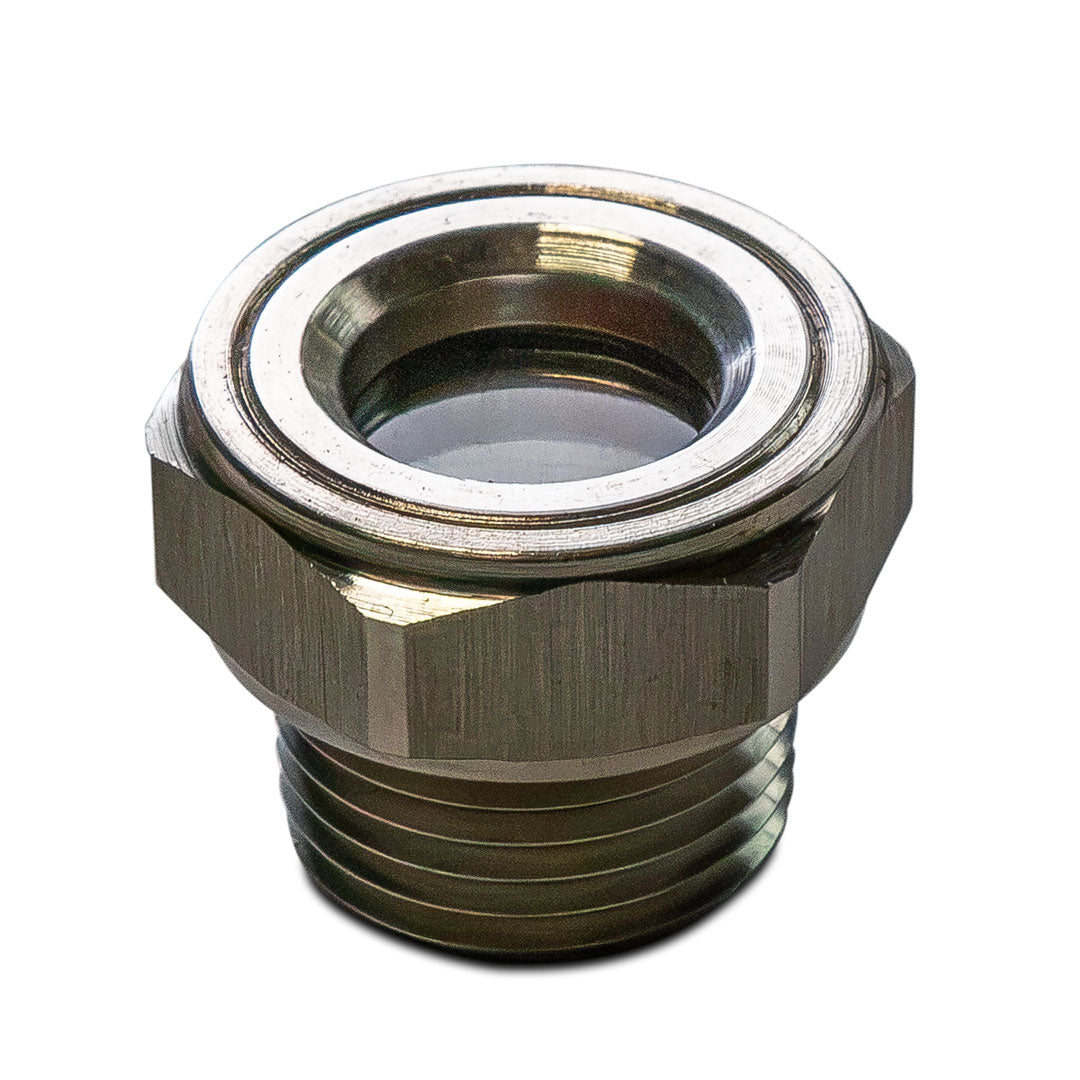

Oil Level Sight Glass, Dana 20 Transfer Case

Oil Level Sight Glass for Dana 20 Transfer Case

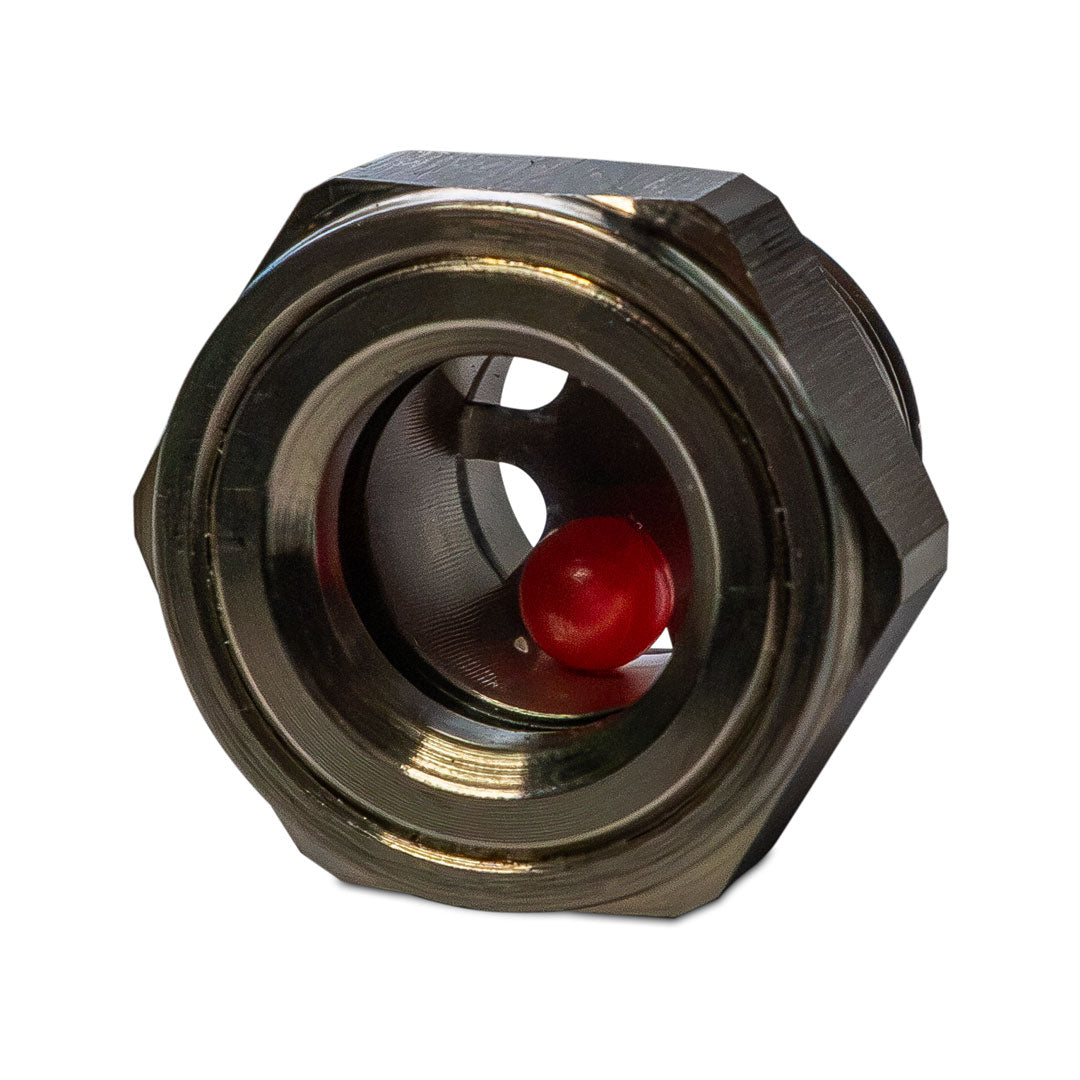

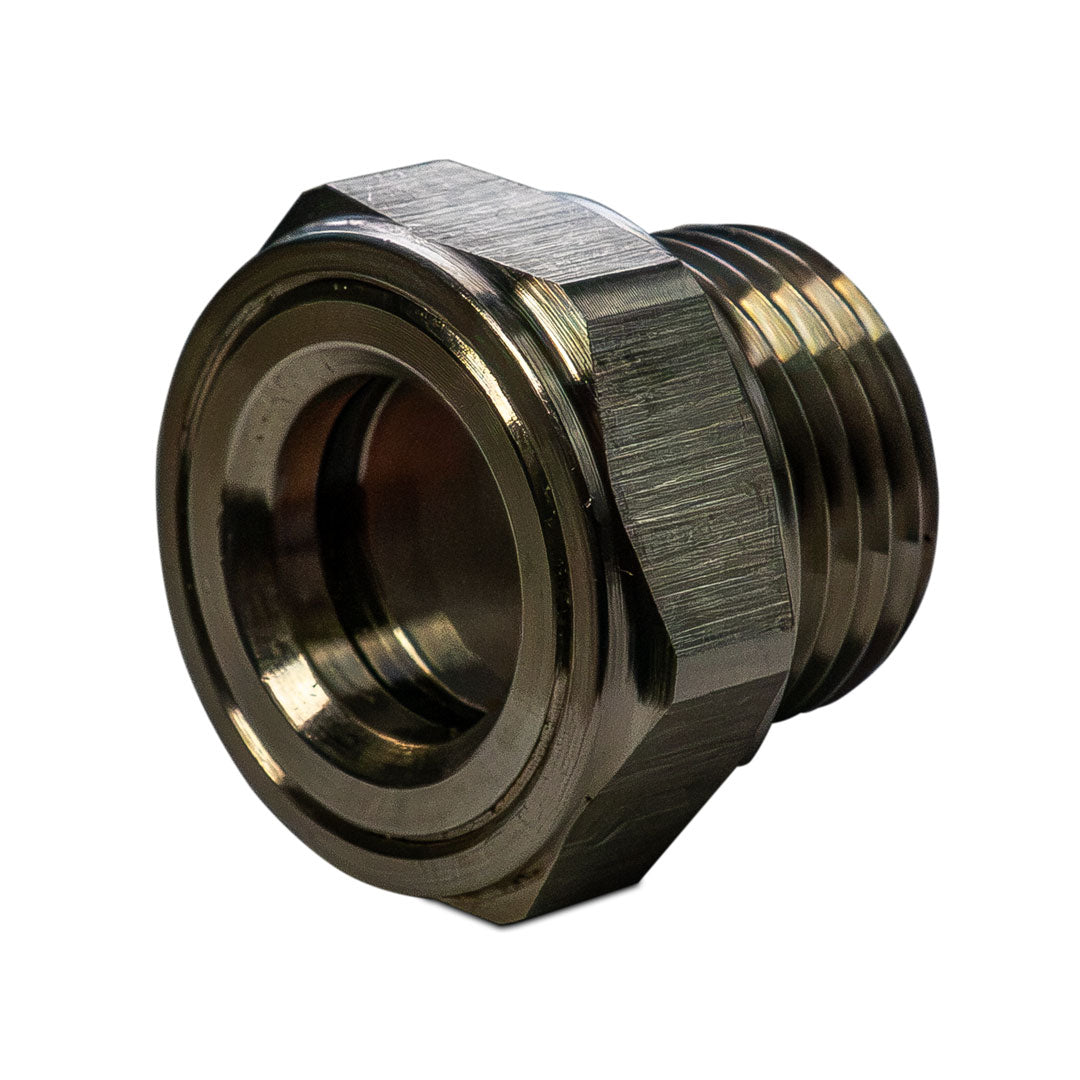

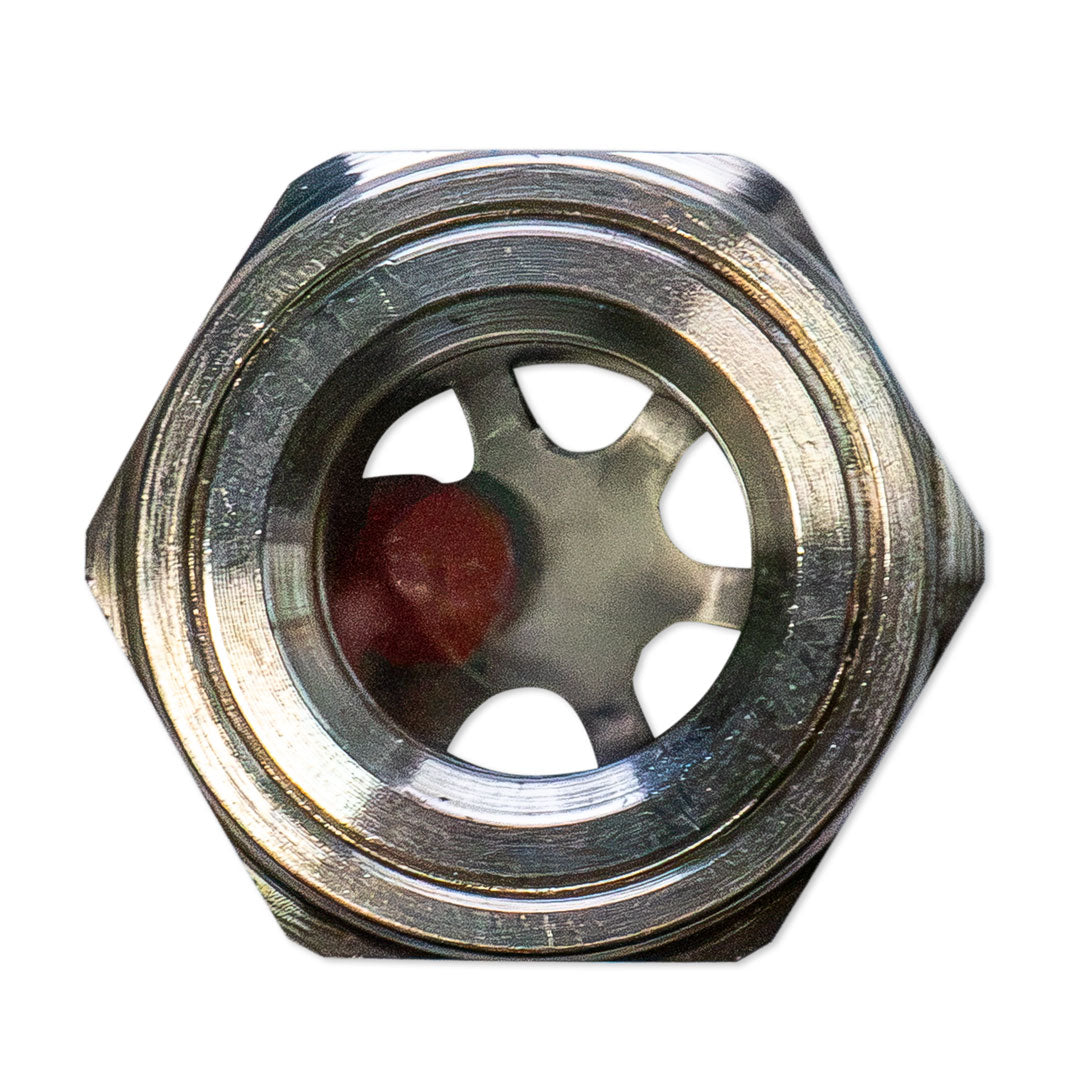

Quickly verify the oil level in your Dana 20 transfer case with this Oil Level Sight Glass. The 1/2" NPT sight glass provides a clear visual indication of fluid level without removing the factory fill plug, helping eliminate unnecessary mess while making routine fluid checks fast and easy. The body is manufactured from durable 304 stainless steel with a clear tempered glass viewing window.

This sight glass is especially important for Dana 20 transfer cases that have been rotated from their factory mounting angle. Transmission swaps and custom drivetrain installations often rotate the transfer case upward for additional driveshaft clearance or a flatter belly pan. When this occurs, filling through the original fill hole can result in insufficient oil capacity. Installing the sight glass provides a visual reference so the transfer case can be filled to an adequate oil level and helps prevent premature wear caused by insufficient lubrication.

Features

• 304 stainless steel body for strength and durability
• Clear tempered glass viewing window
• 1/2" NPT threaded connection
• Provides quick visual verification of transfer case oil level
• Eliminates the need to remove the fill plug for routine level checks
• Especially useful with rotated Dana 20 transfer case installations
• Helps prevent premature transfer case wear caused by insufficient oil levels
• Simple threaded installation using appropriate thread sealant

Additional Fitment Details

• Designed for Dana 20 transfer case applications
• Recommended for Dana 20 transfer cases mounted at an angle different from the factory-engineered position
• Particularly useful with transmission swaps and installations where the transfer case has been rotated upward for driveshaft clearance or a flatter belly pan
• After installing the sight glass, fill the transfer case through the speedometer cable opening until the sight glass window is fully submerged in oil
