Standard Power Steering Gear Box - 4.25 Turns Lock To Lock, 1966-77 Ford Bronco

Power Steering Gear Box – 1966–77 Ford Bronco

New cost-effective power steering gear box for 1966–1977 Ford Broncos. This unit matches the size and shape of the original power steering box used on 1973–1977 Broncos, making installation straightforward with no additional modifications. Each gear box is built from an all-new casting and features new internal components, sector shaft, and housing. Every unit is pressure-tested for proper function and leaks before leaving the factory.

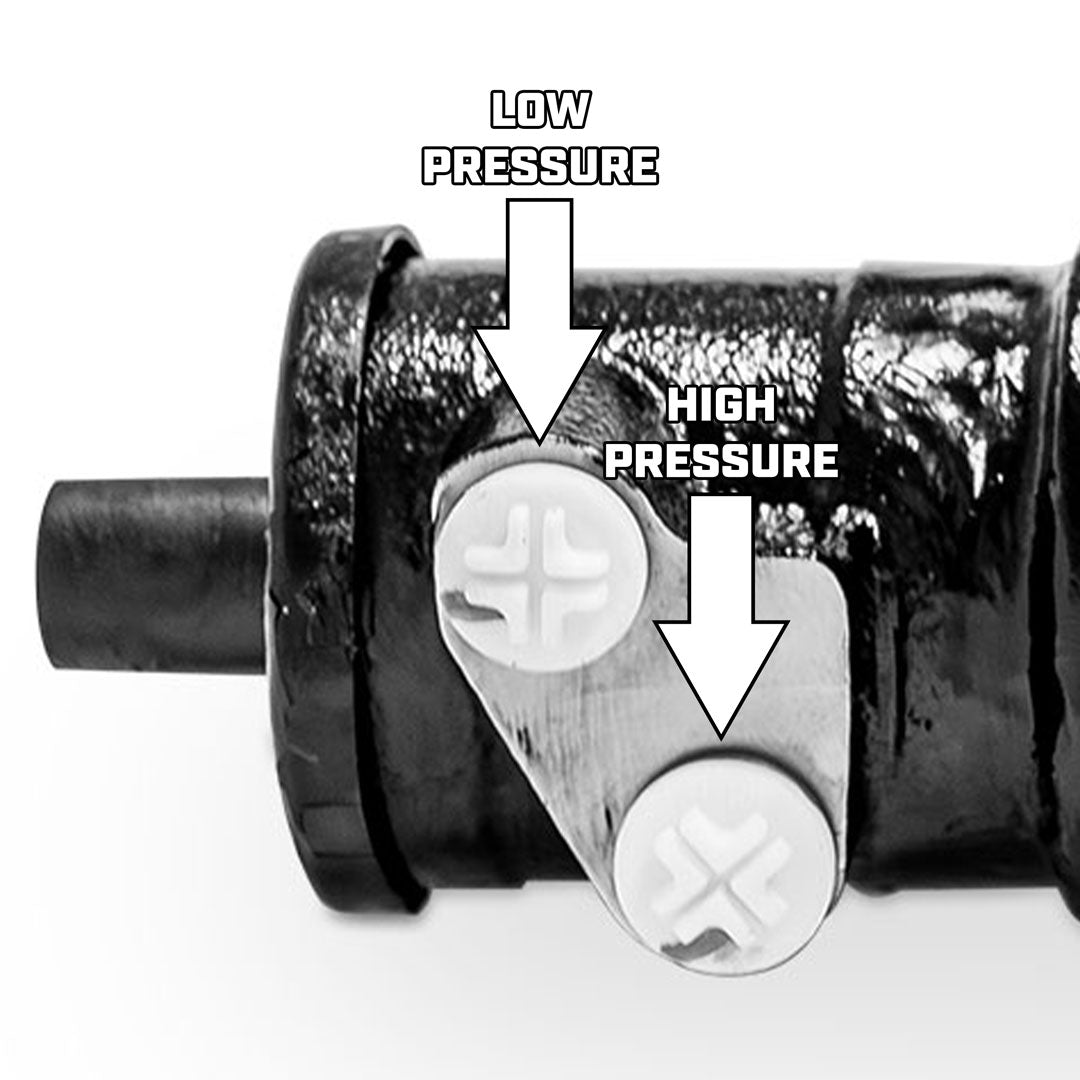

The steering gear box includes the correct 13/16" 36-spline input shaft for direct fitment with the factory steering yoke, and a 1.25" output shaft compatible with the stock Bronco pitman arm. Hose fittings match the OE design with 11/16" and 5/8" inverted flare ports for factory-style connections. With 4.25 turns lock-to-lock, this box replicates the steering ratio found in the highly desirable 1976–1977 Broncos, offering excellent road feel and drivability. Don't be confused with competitors that offer the 3 turn lock-to-lock, as they are very touchy on the road, and when driving a short wheel base vehicle (such as a Bronco), things can become sketchy!

Avoid the cost and uncertainty of rebuilding a worn steering box. Replace it with this new, fully assembled power steering gear for reliable performance and factory-correct steering response.

Features

• Direct-fit replacement for 1966–77 Ford Broncos
• OE-style size and shape for easy installation
• New cast housing, sector shaft, and internal components
• Factory-correct 13/16" 36-spline input and 1.25" output shaft
• Standard 11/16" and 5/8" inverted flare hose fittings
• 4.25 turns lock-to-lock for improved control and road feel
• Fully pressure-tested for performance and leak-free operation
• No additional parts or modifications required for installation

Please Note: For a modernized and heavy duty steering box option, check out these premium options below:

• 3.75 Turn to Turn Power Steering Conversion Box
• TOMS X PSC Steering Box Kit with Ram Assist

Both these boxes offer modern engineering and a heavier duty cast housing for strength.
