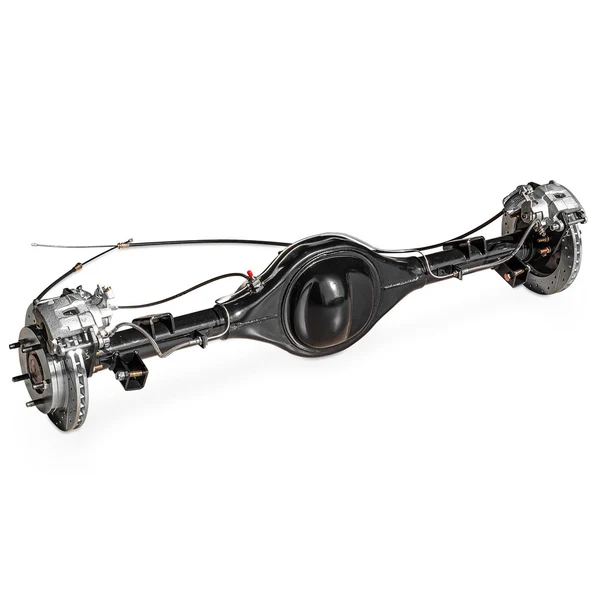

Key Takeaways:
- Leaks Get Ignored Too Long: Pinion seal leaks on Classic Broncos are noticed early and addressed late, and the delay has a real cost.
- Symptoms Follow A Pattern: Seal failure shows up in a predictable sequence that makes early identification straightforward.
- Affordable Fix, Expensive Delay: The TOMS OFFROAD Dana 30 and 44 Pinion Yoke Seal costs $16.95. What a continuing leak costs is significantly more.
A pinion seal leak on a Classic Bronco rarely stops a build in its tracks. It drips, gets noticed, gets wiped off, and gets ignored, right up until it becomes something that cannot be ignored anymore.
TOMS OFFROAD carries the Dana 30 and 44 Pinion Yoke Seal for the 66–77 Ford Bronco at $16.95, an OEM-fit replacement built for the axle configuration the Classic platform runs on.
This article covers why pinion seal leaks get ignored, what the symptoms look like, what the correct replacement delivers, and how to install it correctly.
Why Pinion Seal Leaks Get Ignored Longer Than They Should
A pinion seal leak on a Classic Bronco rarely demands immediate attention. That is exactly what makes it dangerous to ignore over time. This article is focused on Dana 30 and 44 pinion seal leaks, but the same principles applies to 9” rear axles as well.
What The Pinion Seal Does In The Dana Axle System
The pinion seal is surrounding the pinion yoke on the differential housing where the driveshaft attaches to the axle. It keeps gear oil inside the differential and contaminants outside. When it fails, gear oil escapes past the yoke and the differential begins running with less lubrication than it was designed to operate with.
Pinion Seal Leak Symptoms: Why The Leak Looks Minor At First
Early pinion seal failure produces a slow seep rather than an active drip. The area around the yoke looks wet or oily but the volume of fluid lost is small enough that most owners wipe it clean and move on. That response is understandable and consistently wrong on a vehicle running Dana axles in regular use.
What Happens Inside The Axle While The Leak Is Ignored
Fluid loss from a pinion seal leak is cumulative. Each drive cycle loses a small amount. Over weeks and months the differential fluid level drops below the level required to keep the ring and pinion properly lubricated under load. Heat builds. Wear accelerates. A $16.95 seal problem becomes a ring and pinion replacement conversation.
When A Seal Leak Becomes An Axle Replacement Conversation
The transition from seal leak to axle damage happens without warning. Gear and bearing noise under load is usually the first indication that internal damage has already occurred. By that point the repair scope has moved well beyond a seal replacement into differential teardown and component evaluation that costs significantly more time and money to resolve.
Symptoms That Tell You The Pinion Seal Is Failing
These are the signs a Classic Bronco pinion seal is failing, appearing in predictable order as the seal deteriorates from minor seepage to active failure.
- Fluid Spots Under The Axle: Fresh gear oil spots appearing consistently under the differential housing after parking are the earliest and most reliable indicator of seal failure. Identify the source of the leak as soon as it’s noticed.
- Dana 44 Pinion seal: Gear Oil Smell After Trail Use: A warm gear oil smell from the axle area after trail use indicates fluid is contacting hot differential components outside the housing.
- Visible Wetness Around The Yoke: Active wetness or fresh oil coating around the pinion yoke indicates the seal has moved from seeping to leaking and requires immediate attention.
- Gear/Bearing Noise Under Load: Whining or grinding under acceleration or deceleration indicates fluid loss has progressed to the point of internal differential wear from inadequate lubrication.
Any one of these symptoms is enough to act on. Waiting for multiple symptoms means the seal has been failing longer than it should have been.
The TOMS OFFROAD Dana 30 And 44 Pinion Yoke Seal
The Dana 30 and 44 Pinion Yoke Seal from TOMS OFFROAD at $16.95 is an OEM-fit replacement built specifically for the 66–77 Ford Bronco axle configuration.
What OEM-fit Means For The Classic Bronco Axle
Enthusiasts who are not certain which axle their Classic Bronco is running should start with our guide on how to tell if your early Bronco has a Dana 30 or Dana 44 front end before ordering.
OEM-fit means the seal matches the original dimensional specifications of the Dana 30 and Dana 44 axles as built for the 1966–77 Bronco. It seats correctly in the housing bore, contacts the yoke at the correct lip position, and maintains the pressure differential the axle requires to retain fluid under operating conditions.
Why Correct Seal Spec Matters For The Dana 30 And Dana 44
An undersized or incorrectly profiled seal leaks from installation. An oversized seal distorts during installation and fails prematurely under operating pressure. Correct spec eliminates both failure modes and is the reason OEM-fit sourcing matters on a classic axle that was built to specific dimensional tolerances from the factory.
Ford Bronco Pinion Seal: What The $16.95 Replacement Prevents
At $16.95, the pinion seal replacement is the lowest cost intervention in the Classic Bronco drivetrain. What it prevents is a ring and pinion failure from fluid starvation that costs hundreds of dollars in parts alone before labor is considered. The cost ratio makes delaying a replaced seal one of the least defensible decisions in Classic Bronco maintenance.
How This Seal Fits Into A Broader Axle Service Interval
Pinion seal replacement is a natural companion to a differential fluid service on the Classic Bronco. With the fluid drained and the yoke removed, the seal replacement adds minimal time to an already open service interval. Combining both services when either is due is the most efficient approach to axle maintenance on the 1966–77 platform. For enthusiasts planning the full maintenance and restoration scope from the start, our guide on basic tips for planning your classic Ford Bronco restoration covers the broader decisions that prevent reactive repair situations like this one.
Replacing The Pinion Seal On A Classic Bronco
Pinion seal replacement on a Classic Bronco follows a straightforward sequence when the correct steps are taken from drain to torque verification.
- Drain And Mark First: Drain the differential fluid and remove the pinion yoke. These axles are set up with pinion preload shims which will preserve the preload settings during reassembly.
- Yoke Removal And Inspection: Remove the yoke nut and yoke, then inspect the yoke sealing surface for scoring or grooves that would cause the new seal to leak immediately after installation.
- Seal Installation Without Damage: Drive the new seal squarely into the housing bore using a correct-diameter driver. An angled or forced installation damages the seal lip before the axle is ever run.
- Refill, Torque, And Verify: Reinstall the yoke, torque the nut correctly, refill with fresh gear oil, and verify no seepage is present after the first drive cycle.
A $16.95 seal replaced correctly protects a Dana axle worth significantly more from the damage a continuing leak causes over time.
Final Thoughts
The Ford Bronco pinion seal is one of the smallest and most consequential maintenance items on the Classic Bronco drivetrain. A $16.95 part ignored long enough becomes a ring and pinion conversation.
TOMS OFFROAD has carried drivetrain parts for the 66–77 platform since 1976, with OEM-fit sourcing built around the Dana axle configuration the Classic Bronco runs on. For enthusiasts managing the full scope of a Classic Bronco build beyond the drivetrain, the early Bronco restoration hub covers every system the 1966–77 platform needs to be addressed correctly.
Browse all Ford Bronco parts from TOMS OFFROAD to support every other stage of the build.
Frequently Asked Questions About Ford Bronco Pinion Seal
What does the pinion seal do on a Ford Bronco?
It keeps gear oil inside the differential housing and contaminants outside at the pinion yoke entry point.
What are the first signs of a pinion seal leak on a Classic Bronco?
Fresh fluid spots under the differential housing after parking are the earliest and most reliable indicator.
Which axles does the TOMS OFFROAD pinion seal fit?
The Dana 30 and 44 Pinion Yoke Seal fits the front axle on the 1966–77 Ford Bronco. Toms Offroad also has 9” rear axle pinion seals as well, however the replacement procedure is a bit different.
How much does the TOMS OFFROAD pinion seal cost?
The Dana 30 and 44 Pinion Yoke Seal for the 66–77 Ford Bronco is available at $16.95.
Can I replace the pinion seal myself on a Classic Bronco?
Yes, with the correct tools and the right installation sequence, it is a manageable job for an experienced enthusiast.
What happens if a pinion seal leak is ignored for too long?
Fluid loss leads to inadequate lubrication, accelerated ring and pinion wear, and eventually differential failure requiring full teardown. That is much more expensive than replacing the seal early before damage has occurred.
