AODE, 4R70W & 6R80 Transmission Controller For Early Ford Bronco Builds

The AODE,  4R70W and 6R80 transmissions transform Early Bronco highway drivability. What most builders discover after installation of the transmission is that electronic shift control requires a dedicated controller, which the swap kit did not include.

Why The AODE, 4R70W And 6R80 Need Electronic Control On A Classic Platform

The AODE, 4R70W and 6R80 were designed to receive electronic shift commands from a factory ECU in the vehicles they originally came from. Installed in a Classic Bronco without that ECU, the transmission is nonfunctional. A stand alone controller does more than just make the transmission function, it can be optimized for the Bronco's specific axle ratio, tire size, or intended use profile. This allows more performance to be squeezed out of the vehicle, maximizing the fun factor of the Bronco.

AODE Transmission Controller Bronco: What Happens Without A Controller

Without a dedicated controller, the AODE, 4R70W or 6R80 in Early Bronco shifts ceased to exist. Torque converter lockup does not happen. Overdrive cannon engage. The transmission just does not work. The controller selection is a big contributor to the overall drivability and fun factor of the Bronco.

Us Shift Quick 4 for AODE & 4R70W: What A Dedicated Transmission Controller Actually Does

The US Shift Quick 4 replaces the missing ECU function with a standalone controller that manages shift points, torque converter lockup, and line pressure based on actual throttle position, vehicle speed, and operator-defined parameters tuned specifically for the Early Bronco build.

Us Shift Quick 6 for 6R80: What A Dedicated Transmission Controller Actually Does

The US Shift Quick 6 Controller makes the transmission function. All aspects of operation are controlled by the Quick 6 in order to optimize the driveability of the vehicle.

How Controller Selection Affects The Completed Swap's Drivability

A correctly calibrated controller turns a functional transmission swap into a correctly driving one. Shift points that match the axle ratio and tire size, lockup that engages at the right moment on the highway, and line pressure that suits the engine's torque output all come from controller calibration rather than from the transmission itself.

What A Transmission Controller Changes On An Early Bronco Build

A correctly matched transmission controller transforms an AODE, 4R70W or 6R80 swap from a functional drivetrain upgrade into a properly calibrated system tuned for the specific build.

• Quick 4 Transmission Controller: Shift Point Calibration: The controller sets shift points based on actual throttle position and vehicle speed rather than factory defaults built for a different vehicle entirely.
• Quick 4: Torque Converter Lockup Control: Electronic lockup control improves highway fuel economy and reduces drivetrain heat on the Classic Bronco significantly under sustained highway use.
• US Shift Gen2: Diagnostic And Tuning Access: Controller software allows live monitoring and real-time adjustment of shift behavior without removing the transmission from the vehicle at any point.
• AODE Overdrive Controller: Compatibility With Classic Wiring: Correct controllers can integrate with the Early Bronco's existing wiring without requiring a full harness replacement throughout the vehicle.

A correctly calibrated controller is what separates an overdrive swap that works from one that drives correctly under all conditions the Early Bronco will see on road and trail.

Our Transmission Controllers And Related Drivetrain Products

We carry transmission controllers for AODE, 4R70W and 6R80 swaps in Early Broncos alongside the drivetrain components that complete a correctly executed overdrive conversion on the Classic platform.

US Shift Quick 4 and Quick 6 Transmission Controller For The Early Bronco

The US Shift Quick 4 is the most widely specified standalone transmission controller for AODE and 4R70W swaps in Classic Bronco builds. It manages shift points, torque converter lockup, and line pressure through a simple calibration interface that does not require professional tuning equipment or software expertise to configure correctly. The Quick 6 controller designed for the 6R80 is an advanced function controller with a multitude of adjustability, getting the most out of your drivetrain in any 6R80 swapped vehicle!

What The US Shift Gen2 Controller Adds Over The Base Unit

The US Shift Gen2 expands on the Quick 4 with additional shift mapping resolution, enhanced diagnostic capability, and broader compatibility with modified engine and drivetrain configurations. It suits builds with significant power upgrades or non-standard axle ratios and tire size combinations that require finer calibration control than the base unit provides.

Related Automatic Transmission Components From Our 66-77 Bronco Catalog

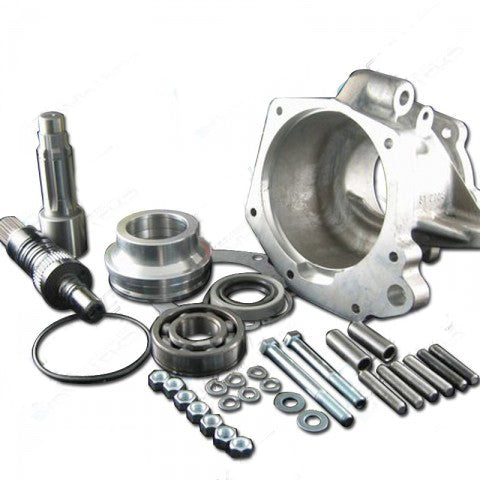

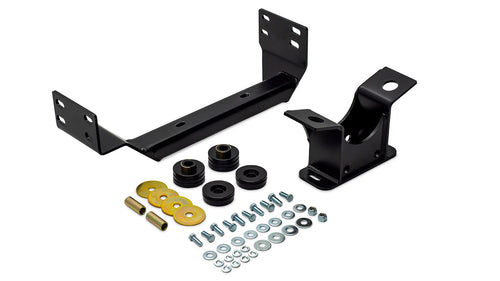

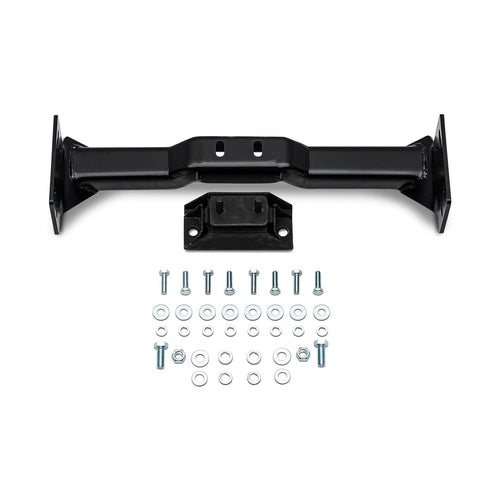

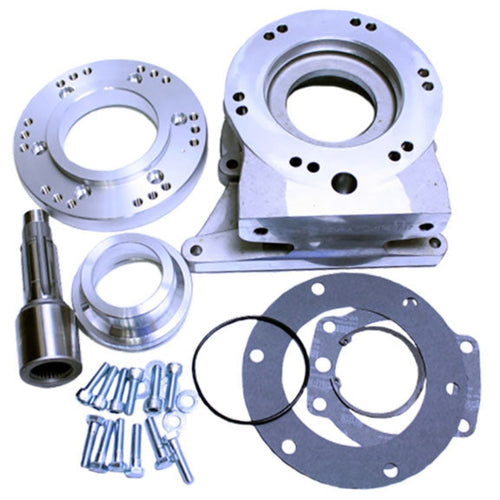

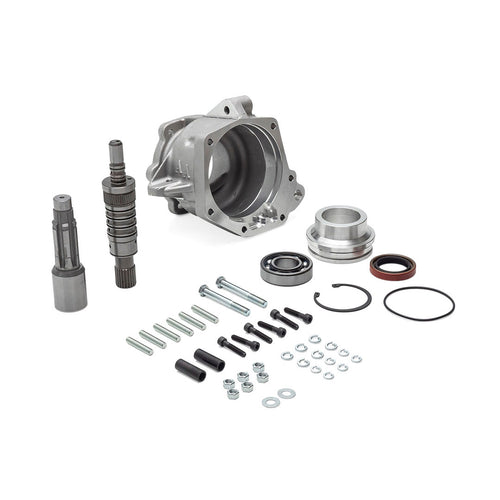

Our 66–77 Bronco Automatic Transmission catalog carries the AOD, AODE, 4R70W and 6R80 components, adapters, crossmembers, and supporting hardware that a complete overdrive swap requires. Sourcing the controller alongside the transmission components from our catalog ensures compatibility across every part of the conversion.

How These Products Work Together On A Complete Overdrive Swap

The transmission, adapter, crossmember, and controller are all interdependent components of an overdrive swap that drives correctly. Our catalog carries each piece with fitment confirmed for the 1966–77 Bronco platform, allowing the full conversion to be sourced without compatibility guesswork at any stage. The TOMS OFFROAD Bronco Restoration guide covers how drivetrain upgrades like this overdrive conversion fit into the broader restoration and build sequence.

Installing A Transmission Controller On An Early Bronco

Transmission controller installation on an Early Bronco AODE, 4R70W or 6R80 swap follows a wiring and calibration sequence that must be completed correctly before the first drive cycle.

• Pre-Install Wiring Review: Map all required controller connections against the Early Bronco's existing wiring before running any new leads throughout the vehicle.
• Sensor And TPS Wiring: Connect the throttle position sensor and vehicle speed sensor inputs correctly to give the controller accurate data for shift point calculation from the start.
• Initial Calibration And Setup: Program shift points, lockup parameters, and line pressure settings through the controller interface before the first drive cycle on the completed build.
• Post-Install Road Test And Adjustment: Road test under varied conditions and refine shift points for the specific build's axle ratio, tire size, and engine output combination.

A correctly installed and calibrated transmission controller completes the AODE, 4R70W or 6R80 swap and gives the Early Bronco the overdrive drivability the conversion was always intended to deliver.
