The NV3550 transmission has become a common upgrade for classic Bronco enthusiasts who want improved drivability without losing the character of a 1966–77 truck. Factory three speed transmissions were built for their time, but modern driving often highlights their limitations. A five speed like the NV3550 brings better spacing between gears and a wider usable range that suits both street driving and trail use.
When planning transmission upgrades, it helps to look at the broader category of options available for early Broncos. Our Manual Transmissions collection reflects how many enthusiasts move toward five speed setups to improve control and overall usability while keeping a traditional manual driving experience.
How Five Speed Gear Ratios Improve Drivability
Five speed gear ratios allow the engine to stay in a more comfortable operating range. Lower gears improve control at slow speeds, which is useful for trails, back roads, and technical driving. The added upper gear reduces engine speed at cruising speeds, making highway driving smoother and less tiring.
This wider ratio spread is one of the biggest reasons enthusiasts consider the NV3550 when updating an older drivetrain.
Benefits Compared To the Factory Three Speed Transmission
Factory transmissions were durable, but they often leave large gaps between gears. That can make acceleration feel uneven and cruising speeds louder than necessary. A five speed smooths out those gaps, which makes the Bronco easier to drive in modern traffic without changing how it feels at its core.
For restorations focused on usability and longevity, the NV3550 offers meaningful improvements while still fitting within a classic build philosophy.
When An NV3550 Upgrade Makes Sense During Restoration
An NV3550 upgrade makes the most sense when a Bronco is already undergoing drivetrain work. Clutch service, transfer case work, or engine upgrades are ideal times to consider a transmission swap. Planning the upgrade as part of a larger system helps avoid rework and keeps the build moving efficiently.
This approach aligns with how many enthusiasts modernize drivability while preserving the heritage and mechanical simplicity that define classic Broncos.
What To Know Before Starting An NV3550 Transmission Swap
An NV3550 transmission swap is a solid upgrade, but it works best when planned carefully. Classic Broncos have often seen decades of changes, and understanding the current drivetrain setup helps avoid surprises during installation. Taking time to evaluate compatibility and supporting components keeps the swap straightforward and serviceable.
Reviewing related components within our Drivetrain & Transmission category helps frame the NV3550 as part of a larger system rather than a standalone change.
Compatibility With 1966–77 Bronco Drivetrain Setups
Most 1966–77 Broncos originally came with manual transmissions, but gear ratios, bellhousings, and prior upgrades can vary. Verifying engine type, existing transmission, and transfer case configuration is the first step before committing to an NV3550 swap.
It is also important to remember that Broncos did not come with automatic transmissions from the factory until 1973, which makes manual to manual swap planning more straightforward on those builds. Even if your Bronco came with an auto, Toms has all the parts necessary to convert to a manual transmission.
Transfer Case Fitment And Dana 20 Considerations
The Dana 20 transfer case is a common pairing for NV3550 swaps in classic Broncos. Proper fitment between the transmission and transfer case is critical for alignment and long term reliability. Adapter selection and output shaft compatibility should be confirmed early in the planning process. The Dana 20 transfer case is best suited for the Bronco application due to its compact size and strength. Another popular option is an Atlas transfer case. If you’re interested in one of these, Toms can walk you through the options and determine what makes the most sense for each individual build.
Addressing these details upfront prevents driveline issues and reduces the chance of vibration or premature wear after installation.
Clutch, Pedal, And Shifter Planning
A transmission swap affects more than just the gearbox. Clutch linkage, pedal feel, and shifter placement all play a role in how the finished setup drives. Ensuring that these components work together keeps the NV3550 feeling natural once installed.
Planning these items as part of the swap helps the Bronco retain a classic driving feel while benefiting from improved gear spacing.
How An NV3550 Manual Transmission Changes The Driving Experience
An NV3550 manual transmission changes how a classic Bronco feels behind the wheel without stripping away its mechanical character. The upgrade focuses on drivability, control, and usability rather than raw performance. For many enthusiasts, this balance is what makes the NV3550 appealing during a restoration or drivetrain refresh.
When planning the supporting parts for a five speed setup, browsing related components within our 5-Speed Transmission Parts category helps keep the system complete and serviceable.
Highway Cruising Improvements
One of the most noticeable changes with an NV3550 is improved highway behavior. The additional gear allows the engine to run at lower rpm during cruising speeds, which reduces noise and makes longer drives more comfortable. This is especially valuable for Broncos that see regular road use or travel between trail systems. The 5th gear ratio is 0.78:1, which is a 22% overdrive. This reduces the rpm needed to maintain speed, which makes for a much more comfortable driving experience.
Lower engine speed at cruise also reduces wear over time, which supports long term reliability for classic builds.
Low Speed Control On Trails And Back Roads
At the other end of the spectrum, the lower first gear ratio of 4.00:1 improves control at slow speeds. This makes navigating trails, back roads, and uneven terrain easier without constant clutch work. Smooth engagement and predictable gearing help the Bronco feel more composed when traction and precision matter.
For enthusiasts who use their Broncos for light adventure and off pavement driving, this added control is a meaningful and noticeable upgrade.
Maintaining A Classic Driving Feel
Despite the improvements, the NV3550 still feels like a traditional manual transmission. Shifting remains mechanical and engaging, which preserves the hands on experience that defines classic Broncos. The upgrade enhances usability without turning the truck into something it was never meant to be.
That balance is why many restorations choose the NV3550 as a way to improve drivability while respecting the Bronco’s heritage.

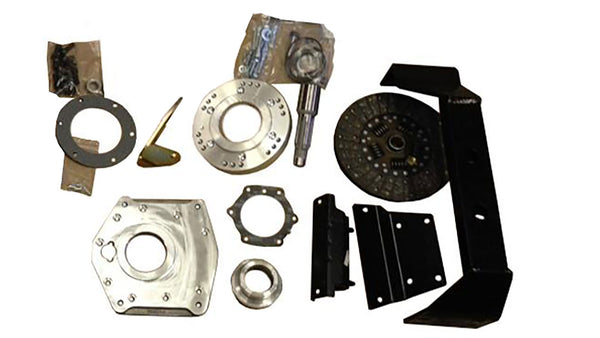

The Role Of An NV3550 Transmission Install Kit
An NV3550 transmission swap relies on more than just the transmission itself. Proper fitment between the transmission, transfer case, and drivetrain components determines how smoothly the swap installs and how reliably it performs over time. An install kit provides the critical pieces that make the NV3550 work correctly in a 1966–77 Bronco.
Why Proper Adapters Matter
The NV3550 was not originally designed for early Bronco applications, which makes adapters a key part of the swap. The adapter ensures the transmission mates correctly to the Dana 20 transfer case, maintaining proper spacing and alignment. Without the correct adapter, even a well installed transmission can create driveline issues that show up as noise, vibration, or premature wear.
Using a purpose built solution like the K5910 66–77 Ford Bronco NV3550 Dana 20 Adapter Kit helps eliminate guesswork and keeps the swap focused on clean, predictable fitment.
Transmission To Transfer Case Alignment
Correct adaptation between the transmission and transfer case is essential for smooth operation. Misalignment places stress on bearings, seals, and driveline components, which can shorten service life. An install kit is designed to maintain proper positioning so the drivetrain operates as a single, balanced system.
This alignment also helps preserve shifter feel and reduces the chance of leaks developing over time.
Preventing Fitment And Vibration Issues
Many common NV3550 swap issues can be traced back to missing or incorrect mounting components. An install kit addresses these problem areas by providing the hardware needed to position the transmission correctly within the Bronco chassis. This prevents driveline angles from being thrown off and helps the swap feel factory planned rather than improvised.
When the transmission is supported and aligned properly, the NV3550 delivers the smooth operation and drivability improvements enthusiasts expect.
Supporting Components Needed For A Clean NV3550 Installation
A successful NV3550 transmission swap depends on more than the transmission and adapter alone. Supporting components play a major role in how the drivetrain fits, how it performs, and how easy it is to service down the road. Addressing these details during installation helps the swap feel planned rather than pieced together.
Transmission Mounting And Crossmember Setup
Proper transmission support is critical once the NV3550 is in place. The transmission must sit at the correct height and angle to keep the drivetrain aligned and reduce stress on mounts and seals. A purpose built solution like the 66–77 Ford Bronco NV3550 Transmission Crossmember Kit helps position the transmission correctly within the chassis while maintaining proper clearance.
Using the correct crossmember also simplifies installation by eliminating the need for fabrication or guesswork during mounting.
Driveline Angles And Clearance Checks
Once the transmission and crossmember are installed, driveline angles should be checked carefully. Proper angles help prevent vibration and reduce wear on u joints and output bearings. Clearance around the transmission tunnel, exhaust, and frame should also be verified to ensure nothing contacts the drivetrain during suspension movement.
These checks are especially important on Broncos that have been lifted or modified over the years.
Keeping The Install Serviceable Long Term
A clean NV3550 installation should be easy to service in the future. Using correct mounting components, maintaining proper alignment, and leaving adequate access for maintenance all contribute to long term reliability. When the transmission is installed with serviceability in mind, routine maintenance and future repairs remain straightforward.
This attention to detail is what separates a functional swap from one that continues to perform well throughout years of driving and ownership.
