Key Takeaways:
- Plan Before The Build Is Done: Speedometer inaccuracy appears after a tire or axle change. Selecting the correct speedometer gear at the planning stage prevents the need for correction later.
- Three Variables Drive The Calculation: Tire size, axle ratio, and transfer case output all affect the driven gear tooth count required for an accurate reading.
- Mechanical And Digital Solutions Exist: TOMS OFFROAD carries drive gear correction options and full digital speedometer upgrades for the 1966–77 Bronco platform.
Speedometer inaccuracy on an Early Bronco almost never appears before a tire change, axle swap, or transfer case modification. By the time most builders notice it, the build is already done.
TOMS OFFROAD has supported Early Bronco enthusiasts since 1976 and carries speedometer drive gear and gauge options across mechanical correction and full digital upgrade paths.
This page covers why accuracy changes when the drivetrain changes, how the speedometer gear system works, how to use a speedo gear calculator, and which products address the problem.
The Calibration Problem That Appears After The Build
Speedometer inaccuracy on an Early Bronco almost never appears before a drivetrain change. By the time most builders notice it, the build is finished.
Why Accuracy Changes When The Drivetrain Changes
The factory speedometer was calibrated for a specific tire diameter, axle ratio, and transfer case output. Change any one of those variables, and the speedometer reads inaccurately because the cable rotation speed no longer matches its calibration at any given road speed.
Speedometer Gear Selection: How The Drive Gear Works
The speedometer gear sits at the transfer case output and turns via a driven gear that rotates the speedometer cable. The ratio between drive and driven gear teeth determines how fast the cable rotates at any given speed, which is what the speedometer head converts into a displayed reading.
Early Bronco Speedo Calibration: What Correct Calibration Requires
Correct calibration requires the drive and driven gear tooth count combination to produce a cable rotation speed matching the speedometer head's calibration for the actual tire diameter and axle ratio in use. When those variables change, the gear combination must change to match.
Bronco Speedometer Accuracy Fix: What An Uncalibrated Speedo Costs
An uncalibrated speedometer affects more than the displayed speed. Odometer readings accumulate incorrectly, mileage-based service intervals are wrong, and trail navigation using odometer distance becomes unreliable across every mile driven after the drivetrain change.
How The Drive Gear System Works
The Early Bronco speedometer runs on a mechanical cable driven by a gear set at the transfer case, understanding that the system is the starting point for any calibration correction.
- Speedometer Gear Calculator Bronco: Drive And Driven Gears: The drive gear is fixed to the transfer case output shaft. The driven gear meshes with it and turns the speedometer cable at a ratio set by the relative tooth counts of both gears.
- How Tire Size Changes The Equation: A larger tire covers more ground per revolution than the factory spec assumed, causing the speedometer to read slower than actual speed.
- How Axle Ratio Changes The Equation: A different axle ratio changes how fast the drive gear turns at any given road speed, regardless of tire size, altering the cable rotation the speedometer receives.
- How To Calculate The Correct Gear: Divide the desired speedometer output in revolutions per mile by the drive gear tooth count and multiply by the driven gear constant to find the correct driven gear tooth count.
Getting this right before sourcing the gear prevents the trial-and-error process most builders go through when correcting speedometer accuracy after the build is on the road. Below is a general guide for a Factory Bronco with a Dana 20 transfer case, a factory 3 speed manual or 3 speed automatic transmission, and a 7-tooth drive gear.
Using A Speedo Gear Calculator
A speedo gear calculator combines tire size, axle ratio, and transfer case output into a single correct tooth count recommendation for the specific build.
What The Calculator Needs
Three inputs: overall tire diameter in inches, rear axle ratio, and the transfer case output constant for the Dana 20. All three must be accurate. A measured tire diameter is always more reliable than the sidewall marking.
Finding The Correct Inputs
Tire diameter should be measured on the vehicle under load. Axle ratio can be confirmed by rotating the driveshaft and counting axle flange rotations, or from documentation if the axle is original.
What The Output Means
The calculator outputs a driven gear tooth count that must be matched to an available driven gear in the correct color code for the transfer case housing. Tooth counts are fixed to specific colors in Ford's driven gear system.
Verifying The Result After Installation
GPS speed comparison at a steady highway speed is the most reliable verification method. A consistent match between GPS and displayed speed across multiple readings confirms the gear combination is correct.
Speedometer Products For The Early Ford Bronco
TOMS OFFROAD carries speedometer gear and gauge options for the 1966–77 Bronco across mechanical correction and full digital upgrade paths.
- Speedometer Tooth Gear: Allows driven gear replacement to correct calibration after tire size or axle ratio changes on the Early Bronco platform. Current tooth counts available range from 16 tooth to 22 tooth.

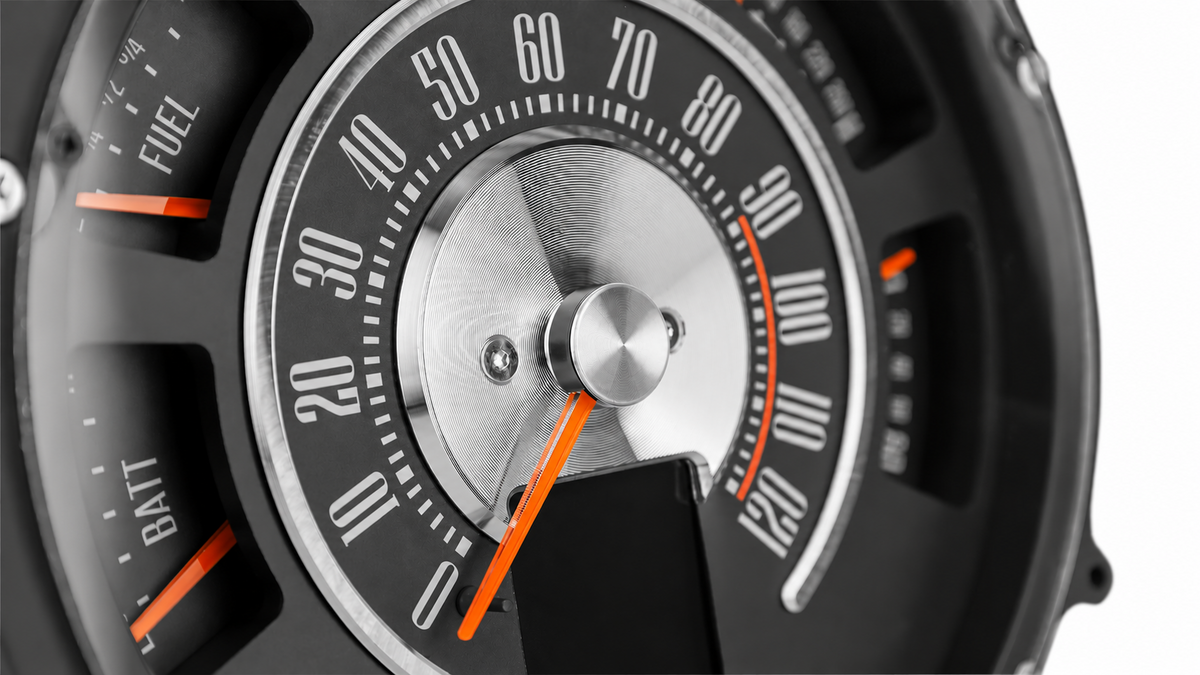

- Speedometer Gauge Cluster 66-77 Bronco: Factory-style cluster restores original appearance while addressing mechanical wear in aged gauge internals.
- Dakota Digital Display Speedometer: Electronic speed sensing that eliminates cable-driven calibration variables entirely on the Early Bronco platform. Speedometer can be adjusted to accommodate tire and wheel size, so speedo gear change is not required.
- Dakota Digital HDX Black Alloy: Premium digital display with Classic Bronco dash integration for full restoration and restomod builds requiring a finished interior.
Final Thoughts
The speedo gear calculator solves a problem most Early Bronco builders create at the planning stage and discover at the drive stage. Selecting the correct driven gear before the build is finished costs far less than correcting it after. TOMS OFFROAD carries mechanical and digital speedometer solutions for the 1966–77 platform, with the catalog depth the Classic Bronco community has relied on since 1976. Calculate correctly, and drive with an accurate gauge.
Frequently Asked Questions About Speedo Gear Calculators
Why is my Early Bronco speedometer reading wrong after a tire change?
Larger tires cover more ground per revolution than the factory calibration assumed.
What is a speedometer speedometer gear on an Early Bronco?
A gear at the transfer case that is driven by the speedometer cable at a calibrated ratio.
What inputs does a speedo gear calculator need?
Tire diameter, rear axle ratio, and the Dana 20 transfer case output constant.
How do I verify accuracy after a speedometer gear change?
Compare the displayed speed against GPS at a steady highway speed across multiple readings.
Does TOMS OFFROAD carry speedometer parts for the 1966-77 Ford Bronco?
Yes, including driven gear parts, factory-style clusters, and Dakota Digital upgrade options.
What is the Dakota Digital speedometer option?
An electronic speed sensing unit that eliminates cable-driven calibration variables.
