The speedometer plays a critical role in how an Early Bronco is driven and maintained. While often overlooked during restoration, it provides essential feedback that affects safety, drivability, and overall confidence behind the wheel. Understanding how these systems work helps ensure the early Bronco speedometer functions as intended.
Purpose Of The Speedometer
A speedometer gives real-time information about vehicle speed, helping drivers maintain safe speeds and consistent driving habits. In classic Broncos, this information also supports proper engine operation by helping drivers monitor oil pressure and engine temperatures.
Factory Gauge Cluster Design
Early Broncos were equipped with simple, mechanical gauge clusters designed for durability and ease of service. These clusters grouped essential readings into a compact layout that fit naturally within the dash. As part of the interior, the gauge cluster works alongside other components from our Interior & Seats offerings to create a functional, period-correct cabin.
Mechanical Speedometer Basics
Mechanical speedometers rely on a rotating cable driven by the transfer case. As the vehicle moves, the speedometer drive gear and speedometer gear drive the cable. This system is straightforward, but accuracy depends heavily on proper cable condition and gear matching.
Common Accuracy Issues
Over time, wear in the cable, gears, or gauge internals can cause inaccurate readings. Tire size changes and drivetrain modifications can also affect calibration. These issues often show up as fluctuating needle movement or incorrect speed readings while driving.
Why Speedometer Condition Matters
A properly functioning speedometer helps us stay aware of vehicle speed and maintain accurate service intervals tied to mileage. When restoring or upgrading our early Bronco gauges, keeping the speedometer accurate is key to preserving drivability, reliability, and confidence behind the wheel.
Why An Accurate Speedometer Matters
An accurate speedometer does more than display vehicle speed. It supports safer driving, proper maintenance, and overall confidence, especially on a classic vehicle that may no longer match factory specifications.
- Speed Awareness: Knowing true vehicle speed helps drivers maintain appropriate pacing in traffic, avoid unintentional speeding, and respond more confidently to changing road conditions during everyday driving.
- Confident Highway Driving: Accurate readings make highway travel less stressful by allowing drivers to match traffic flow, judge merging speeds accurately, and maintain steady cruising without second-guessing actual speed.
- Proper Engine Operation: Reliable speed information supports better gear selection and throttle control, helping reduce unnecessary engine strain and promoting smoother acceleration during city and highway driving.
- Reliable Odometer Tracking: A properly functioning speedometer ensures mileage is recorded correctly, which is essential for tracking maintenance intervals, service schedules, and overall vehicle usage over time.
- Consistency After Modifications: Tire size, axle ratio, or drivetrain changes can alter speed readings. An accurate speedometer restores consistency and prevents errors introduced by common upgrades.
- Reduced Driver Distraction: Steady, predictable readings allow drivers to check speed quickly and confidently without focusing on fluctuating needles or questioning incorrect information.
- Overall Driving Confidence: When instrumentation works as expected, drivers can focus on enjoying the drive and trust the vehicle’s feedback rather than compensate for unreliable gauges.
Maintaining an accurate speedometer helps the Bronco feel predictable, trustworthy, and easier to drive in both daily and long-distance situations.
When accuracy matters, the right components make all the difference. Choose an early bronco speedometer designed to match your dash, drivetrain, and driving habits from TOMS OFFROAD. Browse our proven options and supporting parts specifically designed for Early Broncos, with guidance and support.
Speedometer Upgrade Options For 1966–77 Broncos
As Early Broncos are restored or modified, many owners choose to upgrade the speedometer to improve accuracy, visibility, or overall functionality. Whether staying close to a factory look or moving toward a more modern display, understanding the available options helps ensure the early Bronco speedometer matches both the build and driving needs.
Factory-Style Replacement Clusters
Factory-style speedometer clusters are designed to restore the original appearance of the dashboard while replacing worn or damaged components. These clusters maintain mechanical operation and fit directly into the stock dash opening, making them a strong choice for period-correct restorations.

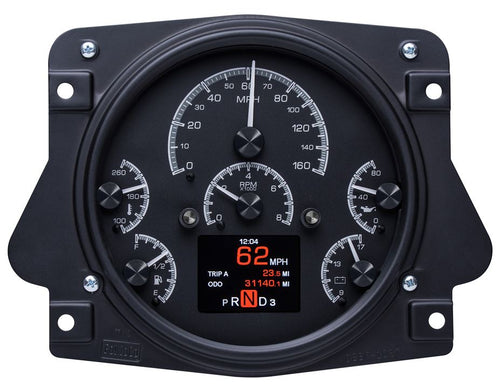

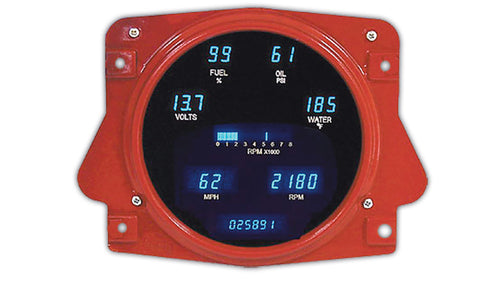

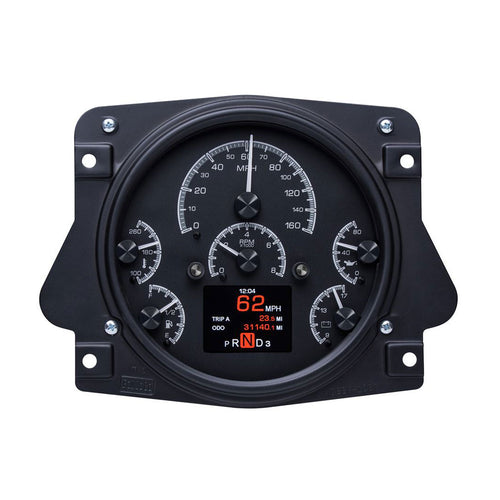

Digital Speedometer Benefits
Digital speedometers offer greater accuracy and clearer readouts than mechanical designs. They eliminate cable-driven fluctuations and provide consistent readings across varying speeds. For those looking to modernize while retaining a clean layout, systems like our Dakota Digital RTX Speedometer offer a refined balance of classic styling and modern function.
Visibility And Readability Improvements
Upgraded speedometers often feature brighter displays and clearer markings, making them easier to read in different lighting conditions. Improved visibility reduces distraction and helps drivers maintain awareness during both daytime and nighttime driving.
Compatibility With Original Dash
Most upgrade options are designed to fit within the factory dash without cutting or permanent modifications. This compatibility helps preserve the original interior layout while allowing performance improvements behind the scenes.
Wiring And Signal Considerations
Upgraded systems may require electrical connections instead of a traditional bronco speedometer cable, especially with digital setups. Planning wiring routes alongside other components from our Lighting & Electrical selection helps ensure clean integration and reliable operation.
Supporting Components For Accurate Readings
Upgrading or maintaining an early Bronco speedometer involves more than just the gauge itself. Supporting components play a key role in ensuring the speed reading stays consistent and accurate over time. Paying attention to these parts helps prevent small issues from turning into noticeable inaccuracies.
Role Of Speedometer Gears
Speedometer gears translate transfercase output into a readable speed signal. These gears are matched to tire size and axle ratio, making them critical for proper calibration. Using the correct Speedometer Gear helps ensure the speedometer reflects the vehicle's true speed rather than an estimate.
Tire Size And Gear Matching
Changes in tire diameter directly affect speedometer accuracy. Larger tires cause the speedometer to read slower than actual speed, while smaller tires have the opposite effect. Matching the speedometer gear to the current tire size helps correct these discrepancies and keeps readings reliable.
Cable Condition And Routing
Mechanical speedometers depend on smooth cable operation. A worn, kinked, or improperly routed cable can cause needle bounce or inconsistent readings. Ensuring the cable is in good condition and routed cleanly reduces friction and helps maintain steady operation.
Preventing Signal Errors
Inconsistent readings are often the result of worn components or improper installation. Addressing gear wear, cable condition, and connection points helps minimize discrepancies and keeps the speedometer functioning smoothly during everyday driving.
Maintaining Long-Term Accuracy
Regular inspection of supporting components helps preserve accuracy over time. As drivetrains evolve or tires are replaced, reassessing calibration components ensures the speedometer continues to provide dependable information mile after mile.
Proper attention to these supporting parts helps the speedometer remain accurate, dependable, and aligned with how the Bronco is currently set up.
Selecting The Best Speedometer For Your Early Bronco
Choosing the right speedometer is about more than filling a dash opening. The ideal setup should match how the Bronco is driven, reflect the overall build style, and remain accurate as the vehicle evolves. Taking a thoughtful approach helps ensure the speedometer delivers reliable information while fitting naturally into the interior.
Restoration Goals And Upgrade Preferences
Some Early Bronco builds are focused on originality, making factory-style mechanical speedometers a strong choice. Other builds benefit from modern gauge technology that improves accuracy and visibility while still respecting classic design cues. Defining restoration goals early helps narrow down which style makes the most sense.
Daily Use Versus Occasional Driving
How often the Bronco is driven plays a major role in speedometer selection. Vehicles used regularly benefit from clear, steady readings that are easy to reference at a glance. Broncos driven less frequently may place greater emphasis on appearance or simplicity rather than on additional features.
Impact Of Tire And Drivetrain Modifications
Changes to tire size, axle ratios, or transfer case components such as the speedometer drive gear directly affect speedometer accuracy. Selecting a setup that can be recalibrated or easily adjusted helps ensure the speed reading stays correct as drivetrain modifications are made.
Matching The Interior Style
Speedometers contribute significantly to the overall look of the dashboard. Matching gauge design, lighting style, and finish to the rest of the interior helps create a cohesive appearance, whether the goal is period-correct or subtly updated.
Planning For Long-Term Reliability
A well-chosen speedometer should perform consistently over time. Considering component quality, installation requirements, and future service needs helps ensure the system remains dependable and easy to maintain for years of driving.
This approach helps ensure the speedometer supports safe driving, accurate readings, and an interior that feels complete and intentional.
Installation And Fitment Considerations
Installing or upgrading a speedometer requires attention to detail to ensure proper operation and long-term reliability. Taking the time to plan the installation helps avoid common issues and ensures accurate readings once the Bronco is back on the road.
- Dash Access Preparation: Gaining proper access to the gauge cluster helps prevent damage to surrounding trim and makes removal and installation smoother and more controlled.
- Mechanical Versus Digital Setup: Mechanical systems rely on cables and gears, while digital speedometers use electronic signals, so the installation steps differ depending on the chosen setup.
- Calibration Planning: Proper calibration is essential for digital clusters, especially after tire or drivetrain changes, to ensure the speed reading matches the vehicle's actual speed.
- Electrical Connection Quality: Secure electrical connections help prevent intermittent operation and ensure consistent performance particularly on digital speedometer systems.
- Cable Routing & Clearance: For mechanical setups, clean cable routing reduces friction and helps prevent needle bounce or premature cable wear.
- Mounting & Alignment: Proper alignment within the dash ensures the speedometer sits correctly and remains easy to read while driving.
- Post-Install Testing: Testing the system after installation helps confirm accuracy and allows for small adjustments before regular driving.
Addressing these installation considerations helps ensure the speedometer functions correctly and remains dependable over time.
