The Ford 9-inch third member is the removable center section of the Ford 9-inch rear axle. It contains the ring gear, pinion gear, differential carrier, and bearings that transfer power to the rear wheels. Because the entire assembly can be removed from the axle housing, it simplifies servicing and upgrades compared to many other axle designs.
How The Ford 9-Inch Rear Axle Is Built
The Ford 9-inch rear axle consists of an axle housing, axle shafts, and the removable third member assembly. The housing supports the axle shafts that connect the wheels, while the third member contains the gears that distribute power. This layout allows the internal gear assembly to be removed as a complete unit. Because of this design, servicing the gears can often be done without removing the entire axle from the vehicle.
Why The Removable Third Member Design Is Unique
Many rear axles use a rear access cover that allows limited access to internal components. The Ford 9-inch design is different because the entire gear assembly can be removed from the axle housing, a feature that sets it apart from fixed-carrier designs like the Ford 8.8. This removable center section makes gear changes and repairs more convenient. Builders and mechanics often appreciate this feature because it simplifies maintenance and upgrades.
Components Found Inside The Third Member
Several key components are housed inside the third member assembly. These include the ring gear, pinion gear, differential carrier, bearings, and seals that support the gear system. Each of these components works together to transfer power efficiently from the driveshaft to the wheels. Proper alignment and lubrication are essential to ensure these parts function correctly.
Why Enthusiasts Prefer The Ford 9-Inch Axle
The Ford 9-inch axle became popular because of its durability and service-friendly design. Its robust construction enabled it to withstand high torque loads in trucks and off-road vehicles. Because the third member can be removed and serviced more easily than many other axle types, enthusiasts often prefer it for restoration projects and drivetrain upgrades.
Strength And Durability Of The 9-Inch Axle
The Ford 9-inch axle became known for its strong construction and ability to handle high torque loads. Its large ring gear and robust housing design helped it perform well under demanding driving conditions.
This durability made the axle popular in trucks and off-road vehicles where drivetrain components are exposed to heavy stress. Many enthusiasts continue to rely on the design for dependable performance.
How The Third Member Simplifies Gear Changes
One of the biggest advantages of the Ford 9-inch design is its removable third-member assembly. Instead of adjusting gears inside the axle housing, the entire gear set can be removed as a single unit.
This feature allows mechanics and enthusiasts to work on the assembly more easily. Gear ratio changes and repairs can be completed more efficiently than with axle designs featuring fixed housings.
The Ford 9-Inch In Classic Bronco Builds
Classic Broncos often use the Ford 9-inch axle because it delivers dependable performance on- and off-road. Its strong design helps support larger tires and increased drivetrain loads.
For many Bronco restorations, maintaining the original axle design helps preserve the vehicle’s capability while ensuring reliable operation.
Critical Components Inside A Ford 9 Inch Third Member
The third member assembly contains the gears and hardware that transfer engine power to the rear wheels. These components manage torque and maintain traction under different driving conditions. Because the entire assembly can be removed from the axle housing, the Ford 9-inch third member is easier to inspect, service, and upgrade for classic Bronco and vintage Ford truck builds.
- Ring Gear And Pinion Gear Function: The ring gear and pinion gear form the main gear set inside the third member. The pinion gear receives power from the driveshaft and transfers rotation to the larger ring gear, directing torque toward the differential.
- Differential Carrier And Gear Sets: The differential carrier holds the ring gear and distributes power between the axle shafts. This allows the rear wheels to rotate at different speeds when turning, helping maintain traction and stability.
- Bearings And Seals In The Third Member: Bearings support the rotating gears while maintaining proper alignment under load. Seals keep gear oil contained within the assembly, ensuring internal components remain properly lubricated.
- Gear Ratios And Their Impact On Performance: Gear ratios determine how engine power is delivered to the wheels. Lower ratios often improve off-road torque, while higher ratios may provide smoother highway driving depending on the vehicle setup.
- How These Components Work Together: Power enters through the pinion gear, is transferred through the ring gear, and then moves through the differential to the axle shafts. Proper alignment and lubrication ensure the system operates smoothly and reliably.
Ford 9-Inch Third Member Components Available From Toms OFFROAD
Upgrading or rebuilding a Ford 9-inch rear axle often involves replacing key components within the third member assembly. These parts help maintain gear alignment, support drivetrain loads, and improve overall reliability. TOMS OFFROAD offers several components designed specifically for classic Bronco and vintage Ford truck applications. These parts are designed to support restoration projects while maintaining the durability for which the Ford 9-inch axle is known.

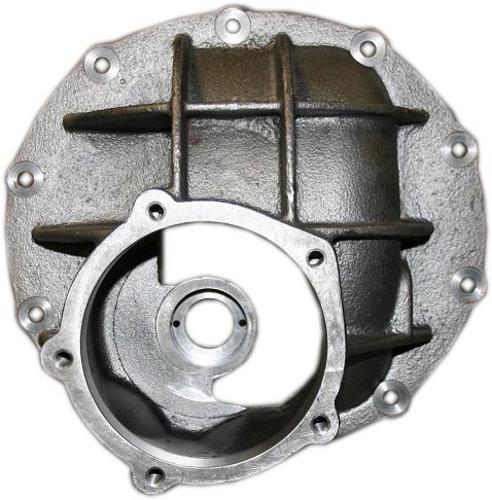

Ford 9 Inch 3rd Member Case – Nodular Iron, 3.062 Inch Bearing Journal
This heavy-duty nodular-iron third-member case is designed for factory Ford 9-inch rear ends used in 1966–1977 Ford Bronco parts applications. The case features a 3.062-inch bearing journal, which is larger than the original early Bronco journal size and provides increased strength and durability. The upgraded material helps support demanding driving conditions while maintaining compatibility with common bearing and race combinations used in classic Bronco builds.
Ford 9 Inch 3rd Member Case – Nodular Iron, 2.890 Inch Bearing Journal
Another option available from TOMS OFFROAD is the Ford 9-inch 3rd member case with a 2.890-inch bearing journal. This version is designed to work with factory Ford 9-inch rear axle setups used in classic Broncos. The nodular iron construction improves strength compared to standard cases while maintaining compatibility with many original Bronco drivetrain configurations.

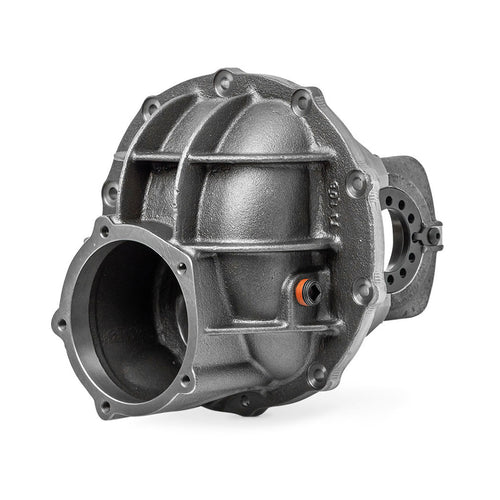

Ford 9 Inch 3rd Member Case – Heavy Duty 35 Spline, 3.25 Inch Bearing Journal
For builds requiring additional drivetrain strength, heavy-duty nodular iron cases are available with 3.25-inch bearing journals, designed for 35-spline carriers. These cases are often used in performance or off-road builds where stronger axle components are required to handle increased torque loads.
Ford 9 Inch Ring And Pinion Overhaul Components
Rebuilding a third member often involves replacing wear items such as bearings, seals, and shims. Overhaul kits designed for Ford 9-inch axles help ensure proper gear alignment and smooth drivetrain operation. These kits support complete third-member rebuilds and help maintain the axle assembly's reliability during restoration projects.
Ford 9 Inch Differential And Locker Options
Differential carriers and lockers are another key part of the third member assembly. Upgraded carriers, such as Grizzly lockers for Ford 9-inch axles, provide improved traction and durability in demanding driving conditions.
When To Replace Or Upgrade A Third Member
The third member handles significant drivetrain loads but can wear over time. Gears, bearings, and seals are constantly under stress, especially during towing or off-road use. Recognizing early signs of wear helps prevent larger drivetrain problems and maintain reliable axle performance.
- Unusual Gear Noise From The Rear Axle: Whining, humming, or grinding sounds coming from the rear axle often indicate worn gears or bearings inside the third member. These noises typically become more noticeable during acceleration or deceleration.
- Visible Gear Wear During Inspection: When a third member is removed for service, worn gear teeth or damaged bearings can sometimes be identified visually. Excessive wear may require replacing internal components or installing a rebuilt assembly.
- Changing Gear Ratios For Different Driving Needs: Some owners replace the third member when switching to a different gear ratio. Adjusting gear ratios can improve performance for off-road driving, towing, or highway cruising.
- Drivetrain Upgrades For Larger Tires: Installing larger tires often increases stress on drivetrain components. Upgrading the third member or internal gears can help maintain proper performance and torque delivery.
- Restoration Projects Requiring New Components: During full-vehicle restorations, sourcing Ford Bronco parts or components for other eras, many enthusiasts choose to rebuild or replace the third member to ensure the axle assembly operates reliably for years to come.
Addressing these situations early helps maintain drivetrain reliability and ensures the axle continues to perform properly in both everyday driving and off-road environments.
